| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-322B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $100.00~$150.00/pc |
| Packaging Details: | Plunge Level Meters With 4~20mA Pressure Transmitter Output, With Battery Charger Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | PTFE Cable Submersible Level Transmitter | Medium: | Liquid, Water, Oil |
|---|---|---|---|
| Measuring Range: | 0~200m | Output: | 4 ~ 20mA Or 0 ~ 10V Or 0-5V |
| Power Supply: | 9-36V DC (Standard 24V DC) | Sensor Material: | SS316 |
| Wire Material: | PTFE Waterproof Vent Cable | Working Temperature: | -20 To 80℃ |
| Quality Warranty: | 12 Months | OEM: | Yes |
Plunge Level Meters With 4~20mA Pressure Transmitter Output, With Battery Charger
Description Plunge Level Meters With 4~20mA Pressure Transmitter Output, With Battery Charger
PTFE cable submersible level transmitter high performance diffused silicon piezoresistive pressure sensor as measuring element, after the high reliability of amplification circuit and precise temperature compensation, convert the gauge pressure or absolute pressure of the measured medium into standard voltage or current signals.

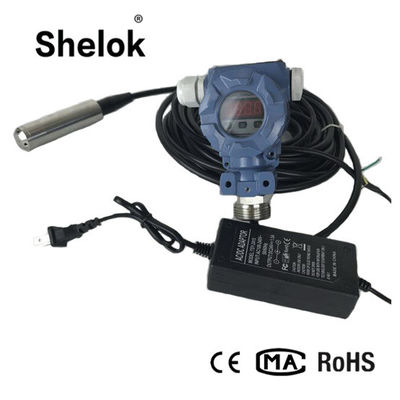

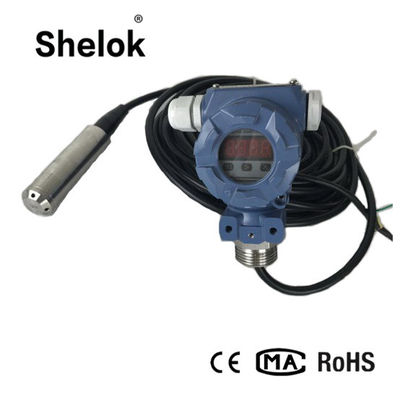

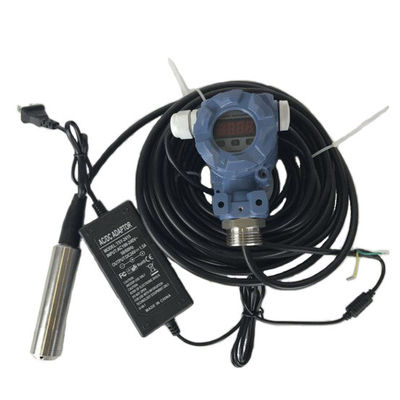

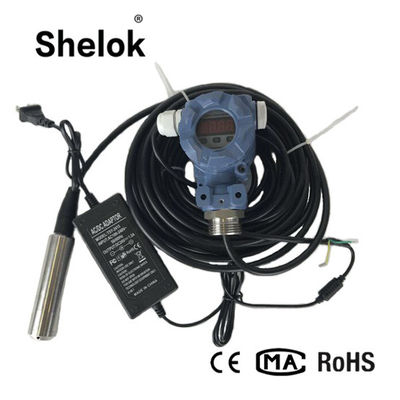

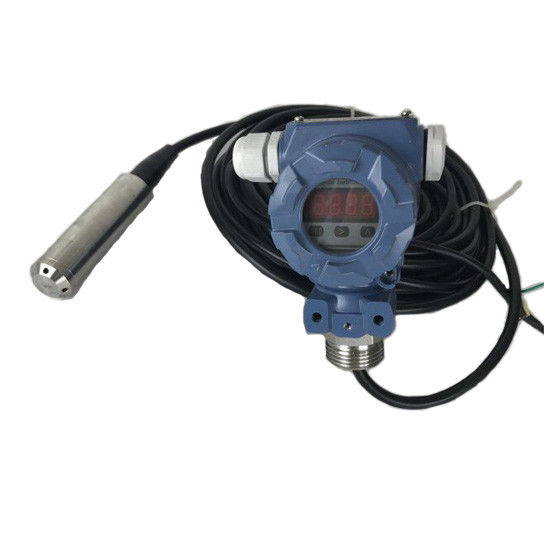

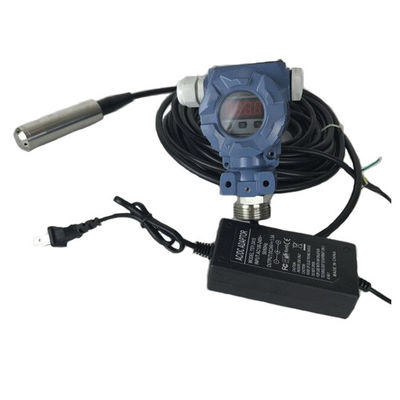

Detailed Images Plunge Level Meters With 4~20mA Pressure Transmitter Output, With Battery Charger
Specification Plunge Level Meters With 4~20mA Pressure Transmitter Output, With Battery Charger
| Plunge Level Meters With 4~20mA Pressure Transmitter Output, With Battery Charger | |
| Measurement Range | 0-1-200m H2O |
| Allowed overload | 2 times the full range pressure |
| Working temperature | -20° to 80℃ |
| Temperature compensation | -10°~70℃ |
| Storage Temperature | -40 to 80℃ |
| Accuracy | 0.2%FS(Typical), ±0.5%FS(Max) |
| Stability error | 0.2%FS(Typical), ±0.5%FS(Max) |
| Temperature drift coefficient | 0.01%FS(Typical, the range is not less than 5m H2O), 0.03%FS(Typical, the range is less than 5m H2O) |
| Output signal | 4-20mA (2/3 wire), 0-10/20mA 0-5V, 1-5V, 0-10V |
| Supply power | 9-36VDC (Standard 24VDC) |
| Load (Ω) | Current output type<(U-15V)/0.02A, Current output type>5K |
| Case Material | Aluminum alloy |
| O-ring | Fluorine rubber |
| Diaphragm | 316L stainless steel |
| Cable Feature | Special waterproof breathable cable, PTFE anti-corrosion breathable cable |
| Protection Grade | IP68(pressure sensor part), IP65(Junction box transmitter) |
Applications Plunge Level Meters With 4~20mA Pressure Transmitter Output, With Battery Charger
Industrial site level measurement and control
City water supply and sewage treatment
hydrological monitoring of Petroleum, chemical industry, power plant industry
Level measurement and control of reservoirs, DAMS, water and electricity construction, etc
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
