| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 2090P |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $400.00~$500.00/pc |
| Packaging Details: | Rosemount Official Standard Packing |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
Product Description

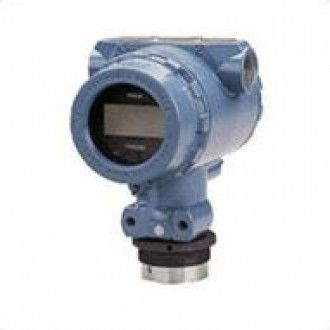

With its compact size and rugged construction, the Rosemount 2090P Pulp and Paper Pressure Transmitter is ideal for the pulp and paper industries. This lightweight transmitter is engineered with a 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection. This transmitter can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for reliable measurement capabilities.
Specifications
| Measurement Type | Gage, absolute |
| Accuracy | Up to ±0.10% of span |
| Stability | ±0.10% of Upper Range Limit (URL) for 12 months |
| Warranty | Up to 5-year limited warranty |
| Rangedown | Up to 20:1 |
| Communication Protocol | 4-20 mA HART® |
| Measurement Range | Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute |
| Process Wetted Material | 316L SST |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | Hazardous location, see full specs for complete list of certifications |
Features
| • | 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection available |
| • | Calibrates as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for application flexibility |
| • | Lightweight, compact design for easy installation |
| • | Fully configurable LCD displays process variable, percent of range and diagnostic message |
| • | Communicates via 4-20 mA HART® protocol for streamlined host integration |
