Industrial 12V DC Factory Hot Sales Pressure Sensors
Description Industrial 12V DC Factory Hot Sales Pressure Sensors
Pressure transmitter In military engineering, chemical explosion test, oil exploration and well testing, materials, mechanics, civil engineering, geotechnical mechanics. Traumatic medicine, hydraulic power mechanical test and other scientific experiments and modern instrumentation, the need to automatically measure some of the high frequency of change, the pressure waveform rise fast and steep dynamic pressure waveform and amplitude, RMS, which requires the use of pressure sensors with high Of the natural frequency, very short rise time and wide excellent response frequency band to ensure sufficient dynamic pressure measurement accuracy

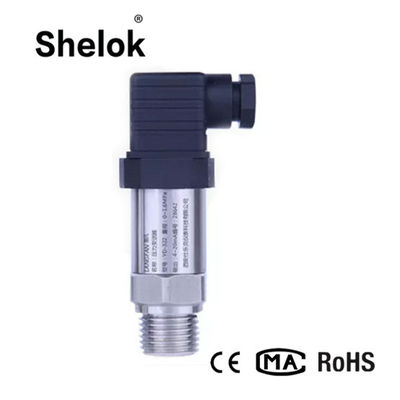

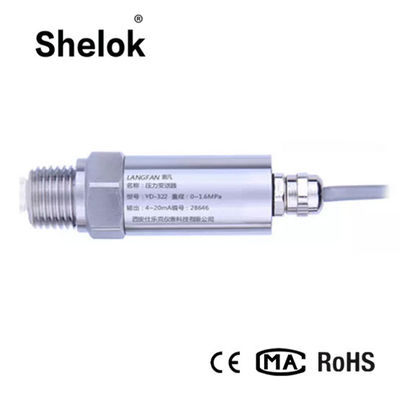

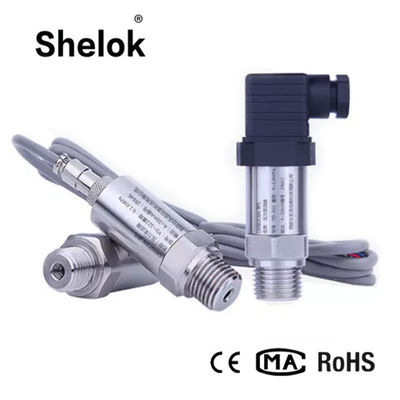

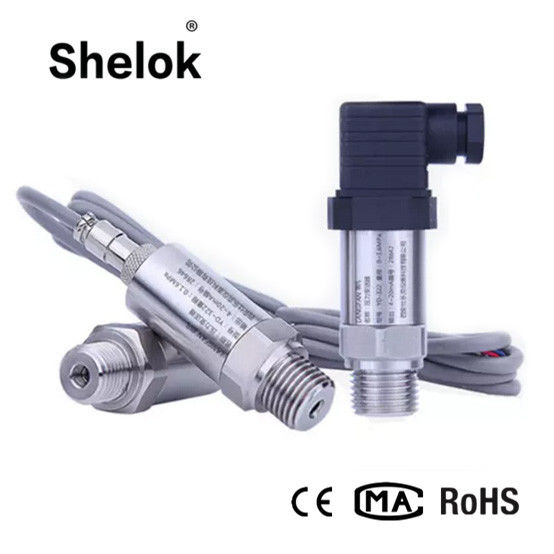

Detailed Images Industrial 12V DC Factory Hot Sales Pressure Sensors
Specification Industrial 12V DC Factory Hot Sales Pressure Sensors
| Industrial 12V DC Factory Hot Sales Pressure Sensors |
| Measure Range | -100KPa~0~1KPa...20KPa...100MPa |
| Accuracy | ±0.1 %FS, ±0.25%FS |
| Output | 4~20mA |
| Power supply | 12-36V DC |
| Overload pressure | 200%FS(Positive pressure side) 100%FS(Negative pressure side) |
| Long stability | ≤±0.2%FS/Year |
| Ambient humidity | ≤85%RH |
| Housing material | Stainless steel structure |
| System pressure | 1000% FS |
| Temp.compensation Range | 0±70/℃ |
| Medium | The gas, liquid without corrosion on stainless steel liquid |
| Pressure type | gauge or absolute pressure |
Features Industrial 12V DC Factory Hot Sales Pressure Sensors
1.all stainless steel shell, excellent corrosion performance
2. Wide range of pressure measurement
3. natural frequency up to 1MHz
4.work stable
5. anti-interference ability
6.imported components, reliable performance. The following are the same as the "
7. small size, light weight, type complete, cost-effective
8.wide range of measuring media
