| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LS Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $965~$1350/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0-60mpa | Working Medium: | Oil |
|---|---|---|---|
| Delivery Time: | About 7 Days | Thread Size: | M20*1.5 |
| Warranty: | 12Months | Lower Limit: | 0.04MPa |
| Upper Limit: | 0.6MPa | Usage: | Dead Weight Tester |
| Power: | Air | Product Name: | Hand Hold Pump Dead Weight Tester Hydraulic Pressure Calibrator |
New Model Luxury Desk-top Hydraulic Piston Pressure Calibrator Dead Weight Tester, Pressure Gauge
Description
New Model Luxury Desk-top Hydraulic Piston Pressure Calibrator Dead Weight Tester, Pressure Gauge is a Standard calibration. Dead weight testers are so called primary standards which means that the pressure measured by a dead weight tester is defined through other quantities; Length, mass and time. Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.

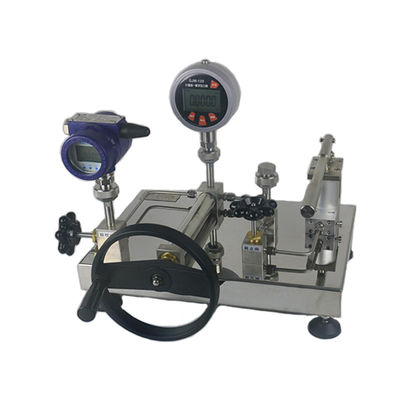

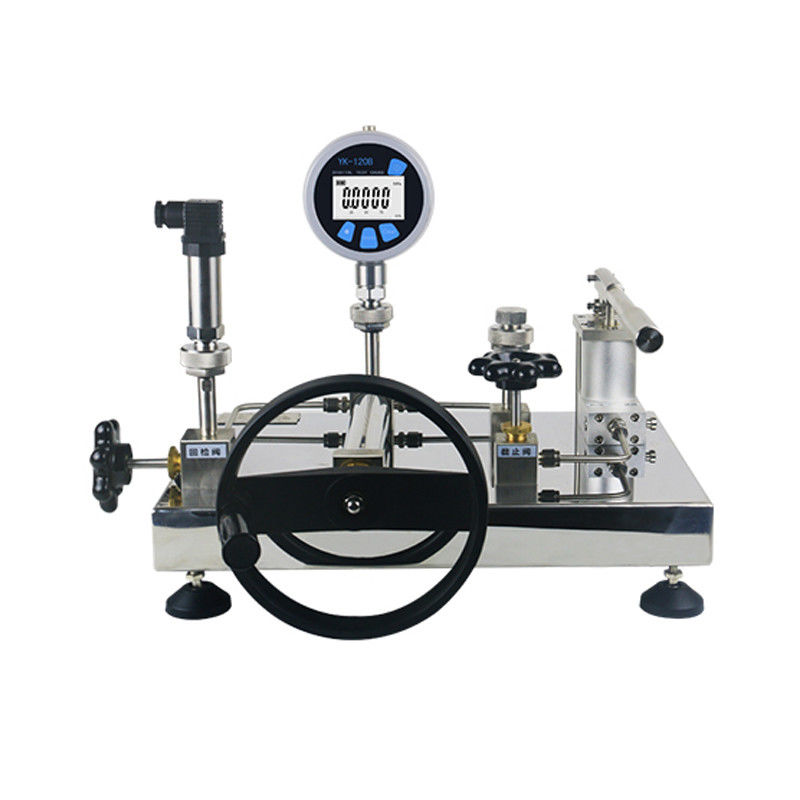

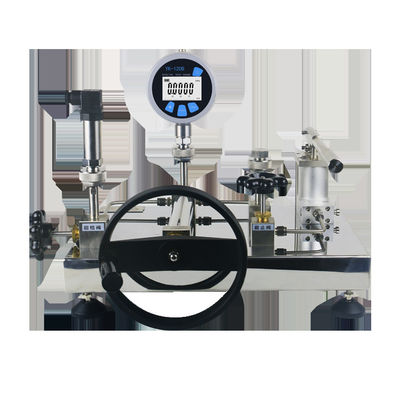

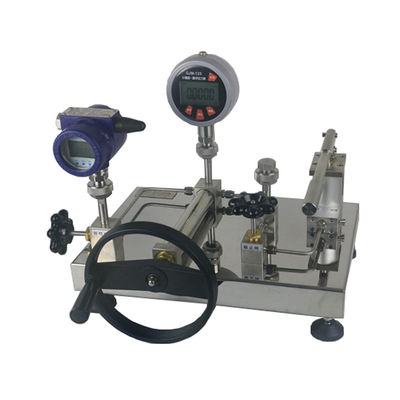

Detailed Images
Specification Hydraulic Pressure Calibrator Dead Weight Tester
| Parameter | Unite | Pressure Range | ||||
| 0.6Mpa | 6Mpa | 25Mpa | 60Mpa | |||
| Upper limit | Mpa | 0.6 | 6 | 25 | 60 | |
| Lower limit | Mpa | 0.04 | 0.1 | 0.5 | 1 | |
| Nominal piston area | cm2 | 1 | 0.5 | 0.2 | 0.1 | |
| Base and Piston | Nominal mass | Kg | 0.4 | 0.5 | 1 | 1 |
| Generated pressure | MPa | 0.04 | 0.1 | 0.5 | 1 | |
| Special Weights | Nominal mass | Kg | 0.1;0.5 | 0.5;2.5 | 1;5 | 1;5 |
| Generated pressure | MPa | 0.01;0.05 | 0.1;0.5 | 0.5;2.5 | 1;5 | |
| Qty | pcs | 6 ;10 | 4;11 | 4;9 | 4;11 | |
| Thread Size | M20×1.5 | M20×1.5 | M20×1.5 | M20×1.5 | ||
| Weight | Kg | 35 | 60 | 47 | 84 | |
| Medium | 25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20℃,acid value is not more than 0.05mg KOH/g | Sebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20℃,acid value is less than 0.05mg KOH/g | ||||
