Description High-precision Single-range Blood Monitor Calibration Instrument Sphygmomanometer Calibrator

The High-precision Single-range Blood Monitor Calibration Instrument Sphygmomanometer Calibrator This sphygmomanoter calibrator is a high-precision single-range calibration instrument,which is composed of high-precision measurement chips,protection circuit of charging battery,black air cell and pressure transducer.It can be used for real-time pressure measurement and calibration sphygmomanometer with double display.

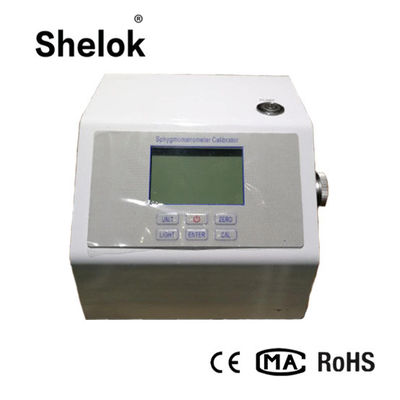

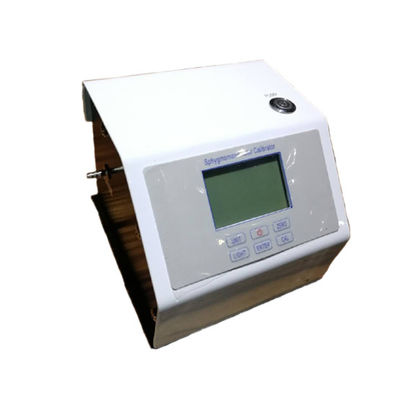

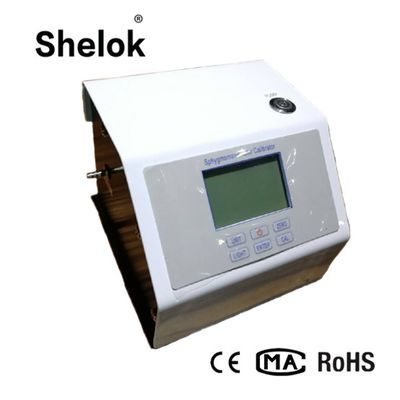

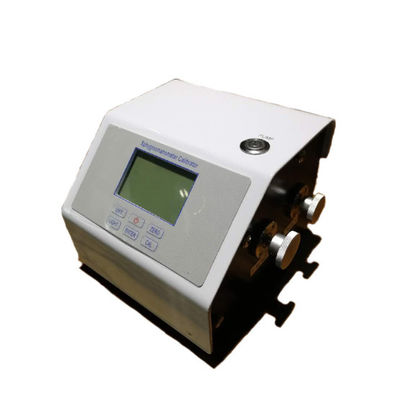

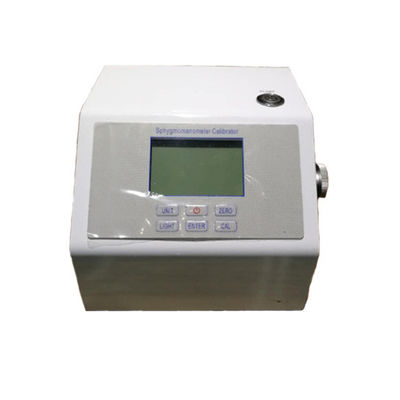

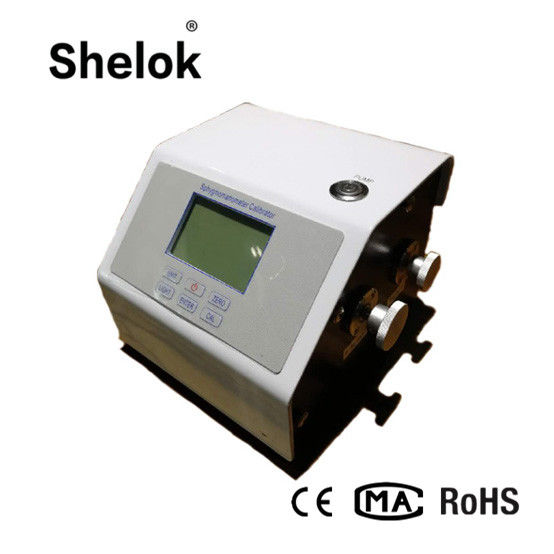

Detailed Images High-precision Single-range Blood Monitor Calibration Instrument Sphygmomanometer Calibrator

Specification High-precision Single-range Blood Monitor Calibration Instrument Sphygmomanometer Calibrator

! Bosster

Keep Press the “ Booster” button to generate pressure

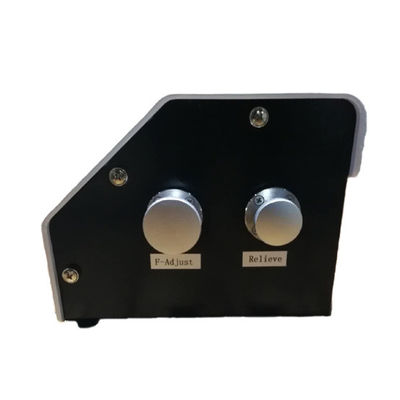

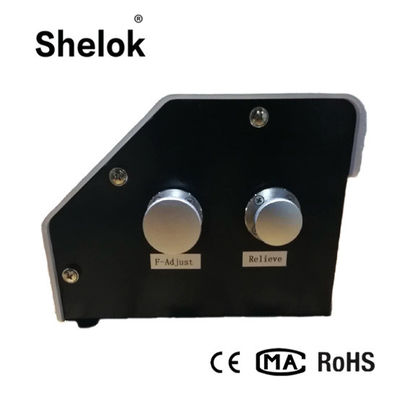

! F-adjust valve

To realize the fine adjustment during calibration.(clockwise to increase pressure)

! Relieve Valve

Cut off the connection between Air-cell,release valve and pressure system

! Communication Port

Connect the PC by RS232 communication cable

! Power switch

Open/Close this switch to start /stop the working of this equipment

! Power Charge

Connect the power supply to charge for this sphygmomanometer calibrator

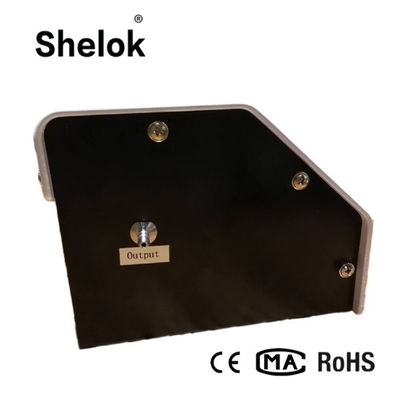

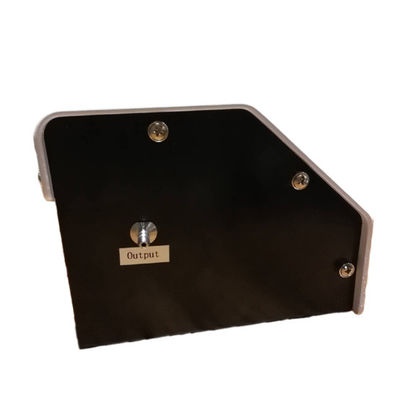

! Output

Connect the sphygmomanometer under test to item

Work Principle

Apply pressure to the pressure transducer,it outputs a electrical signal. First the corresponding electrical signal will be amplified.and then it will be converted to digital data by A/D converter.Then the microprocessor sequentially collects data to modify and correct,the final result will be displayed on the LCD Display.

Features High-precision Single-range Blood Monitor Calibration Instrument Sphygmomanometer Calibrator

! Microprocessor in this sphygmomanometer calibrator will be able to do adjustment & compensation for nonlinear & zero drift automatically.

! The high-stability pressure- transducer & 24-bit A/D converter will insure the precision and the stability of the unit.

! Acquisition speed fast,simple operation.
! Smaller in size and built in lithium battery.

Trouble Shooting High-precision Single-range Blood Monitor Calibration Instrument Sphygmomanometer Calibrator

A.Put this sphygmomanometer calibrator on the level , Open Power switch and Power
on dial face, Open Release Valve, then Spin out the F-adjust approach the max Position

B.Connect the sphygmomanometer under test with output tube.

C.Before pressure generating, please close release valve.Keep pressure Booster button until the pressure rise to 38kPa, then use the F-adjust valve to get exact value.

D.Open the release valve slowly to depressurize. When the pressure value get to the 32kPa. Use the F-adjust valve to get exact value. Calibrate other points according to above ways (24kPa,20kPa,16kPa,12kPa,8kPa,4kPa).

E.When you calibrate zero point,please only open the release valve & shut-off valve completely. That is ok.
F.If the calibration work finished, please close the power switch which on the back of this sphygmomanometer calibrator , this can protect the battery of this sphygmomanometer calibrator .

Maintenance High-precision Single-range Blood Monitor Calibration Instrument Sphygmomanometer Calibrator

1.Please confirm whether the display is ok,when you open the item,the screen will display the pressure range instantly.
2.There is build in rechargeable lithium battery.If it is under voltage, the item will not display normally.When the item is almost out of battery,that will display voltage under in display screen. Please charging.During charging (the battery symbol will flicker ).Once finished, the battery will not display. you may pull up the power adapter.
3.The normal time for charging is 8 hours.It can damage the circuit and battery with long time recharging.

4.It is forbidden to operate under high temperature and humidity environment.
