Manufacturer high pressure hydraulic pressure calibrator

Manufacturer high pressure hydraulic pressure calibrator

Description hydraulic pressure calibrator

High pressure hydraulic pressure calibrator is the latest pressure source system developed by our company. This pressure source system adopts a rigid pressurized module, which saves time and effort. The core seal is all rigid seal to prevent leakage. The maximum pressure can reach 350Mpa, using high-quality imported stainless steel, foreign advanced sealing technology, refined through a variety of processing techniques. The open structure is completely adopted, which is more convenient for maintenance; the spiral lifting and lowering pressure, the lifting and lowering pressure is stable, the pressure can be stabilized in an instant, and the return verification is extremely easy to operate; suitable for: food hygiene, aerospace, military, metallurgy, measurement and other industries Provide a stable, fast, safe and reliable ultra-high pressure source when calibrating pressure transmitters, pressure sensors, precision (ordinary) pressure gauges and other pressure instruments

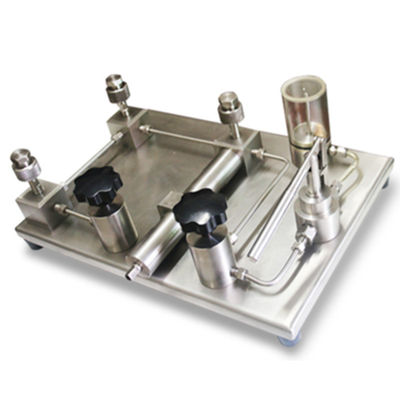

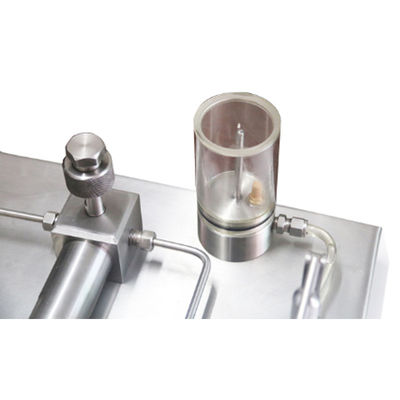

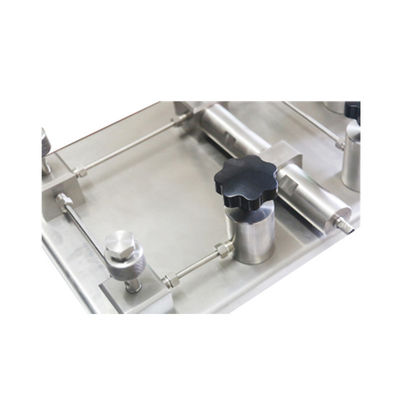

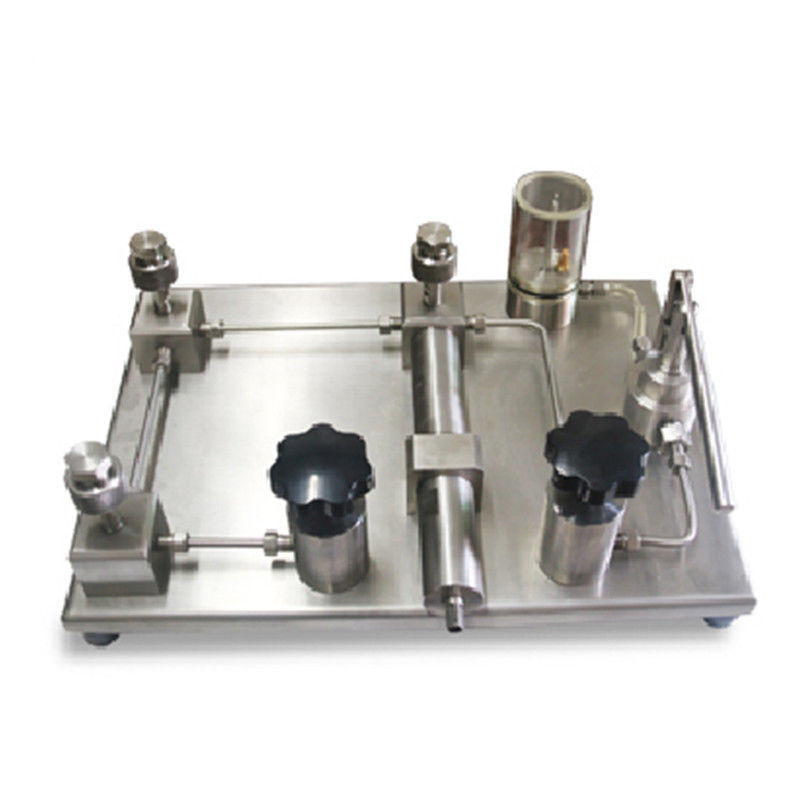

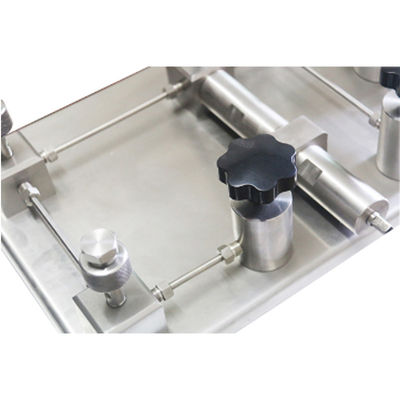

Detailed Images hydraulic pressure calibrator

Specification hydraulic pressure calibrator

Features hydraulic pressure calibrator

1.Screw-type lifting and lowering pressure, stable lifting and lowering pressure, easy to operate in return verification.
2.The most advanced international sealing technology, long life, no leakage.
3.Ultra-fine adjustment, controllable pressure change value is more accurate.
4.Open structure, easy to clean and maintain.
5.2 output ports, multiple output ports can also be customized according to customer needs.
6.The output port adopts quick union, the instrument can be easily disassembled and assembled without a wrench.

Composition hydraulic pressure calibrator

(1)The Pressure Gauge Connection Port 1 (2)The Pressure Gauge Connection Port2 (3)Pressure relief valve (4)Pressurization Screw (5)Shut-off valve (6)Preloading Handle (7)Preloading Seat (8) Filter (9)Oil Cup (10)Exhaust Vent (11)Standard table interface (12)Pressurized cylinder

Related products

FAQ

Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delivery of goods, quality and safety inspection certification issued by third parts also can be offered.

Q:Could I visit your factory?

A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
