| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | XY-2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $550 ~$650/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Portable Multifunction Digital Pressure Gauge Calibrator | Pressure Range: | 0-20MPa |
|---|---|---|---|
| Accuracy: | 0.05%FS | Fine Adjustment: | 0.1Pa |
| Medium: | Gas | Application: | Textile |
| Function: | Test Normal Injector | Color: | Orange |
| Weight: | 10kg | Warranty: | 1 Year |
Product Description
1.multifunctional portable pressure calibrator
2.measuring the pressure
3.making pressure
4.Easy carry ,wide application
5.Model:XY-2000.
Features

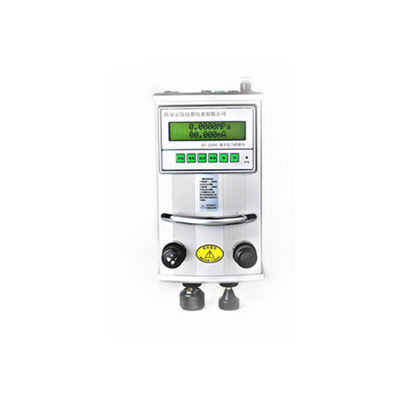

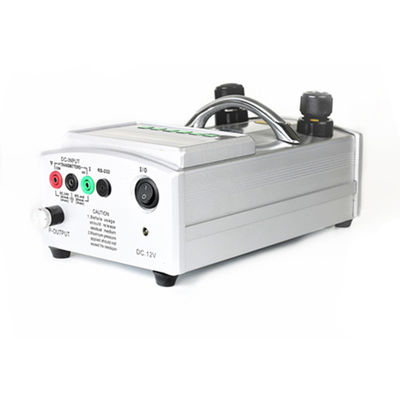

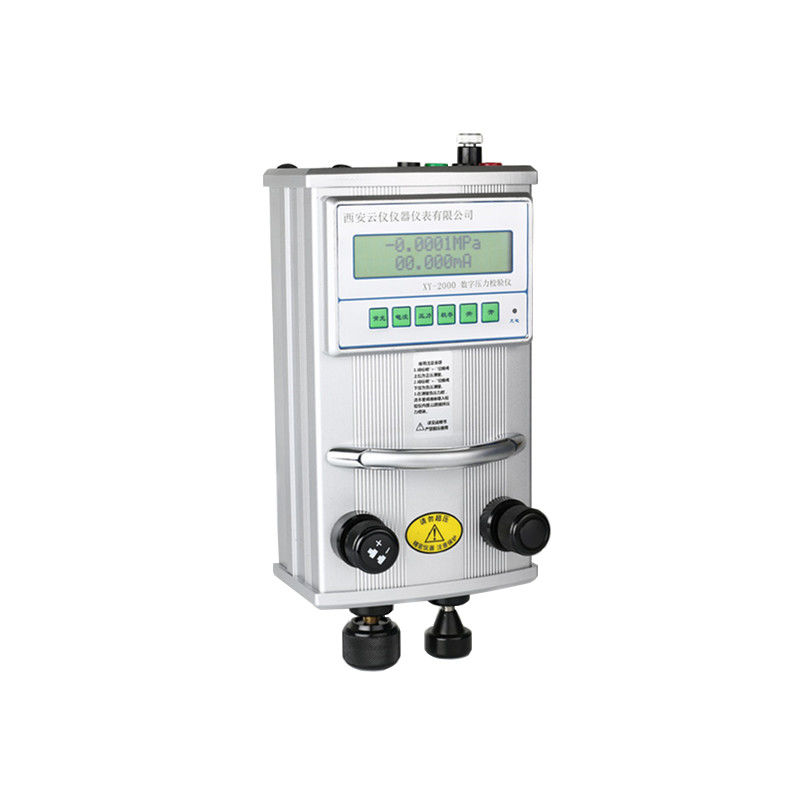

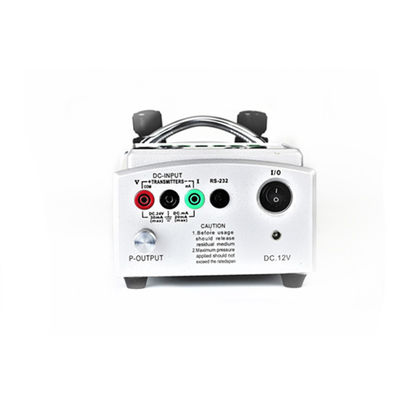

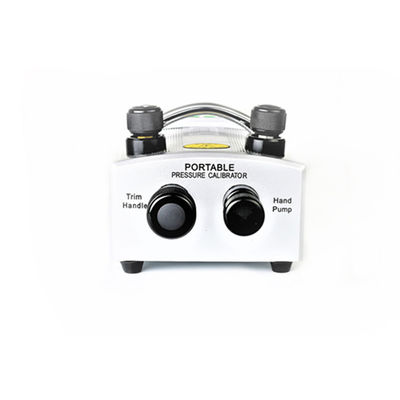

Portable multifunction digital pressure gauge calibrator
1. Built-in pressure making resourse of 0-20MPa manual gas pressure /liquid pressure
2. Calibrated range : 0-20MP, high accuracy , equipped with imported pressure sensor
3.With the function of measurement the process signal for current and power , as well as the output of DC24V
4.High accurate A/D change, soft automatically non-linear modification and temperature compsation .
5. Various pressure unit for choice , such as KPa,mmH20,mmHg,mbar and so on
6.Suitable for calibrating the pressure transmitter , pressure controller ,sensor and so on.
Parametes
| technical index | Accuracy | |
| Pressure output | 0-20MPa | |
| Pressure measurement | 0-2,6,10,20Mpa | 0.05%FS |
| Current measurement | 0-50mA | 0.03%RD+0.02%FS |
| Voltage measurement | 0-20V | 0.03%RD+0.02%f S |
Detailes Images
Relates Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
NanCon considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Zhejiang NanCon is a professional R&D center and manufacture of measuring instruments. And here's a variety of products for you choice: Dry Block Temperature Calibrator, Pressure Calibrator, Dead Weight Tester, Pressure Transmitters, Flow Meter, Digital Pressure Gauge, Pressure Regulator, Level Transmitter, Temperature Transmitters, Fork Density Meter, Load Cell, Electronic Balance, Gas Detector, Petroleum Instrumentation, weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
