| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | DK Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1700~$2100/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Piston Hydraulic Dead Weight Tester Pressure Gauge Calibration Machine | Application: | Pressure Testing Instrument |
|---|---|---|---|
| Accuracy: | 0.005,0.02,0.05 | Medium: | Dioctyl Sebacate,distilled Water |
| Pressure Range: | 0.1~100MPa | Connection: | M20*1.5, 1/2NPT |
| Certificate: | Northwest National Center Of Metrology | Pressure: | Atmospheric Pressure |
| Maximum Rate Of Decline: | 5μm/s | Warranty: | 1 Year |

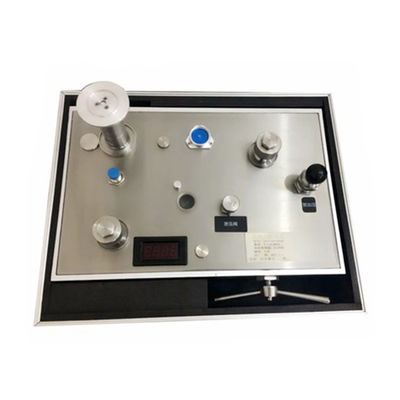

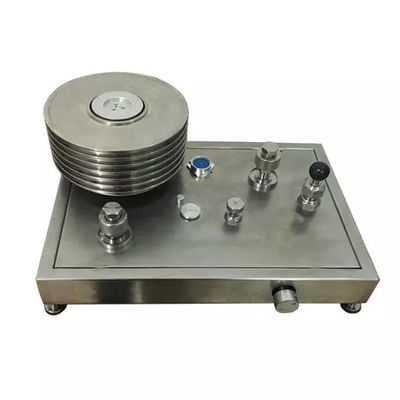

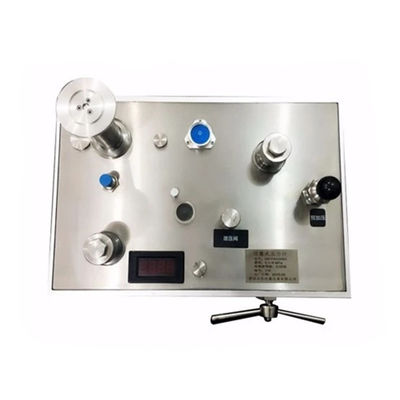

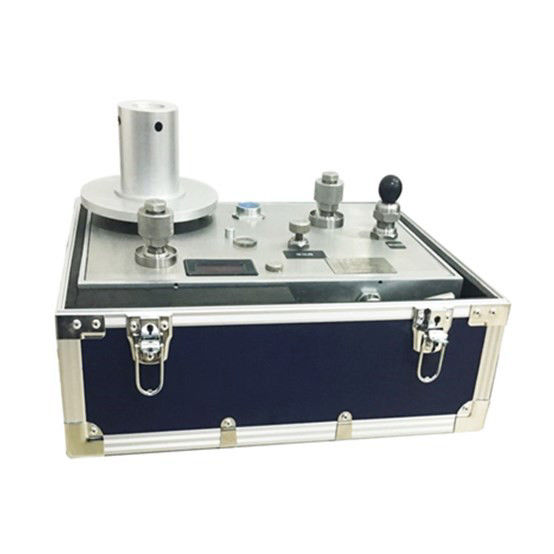

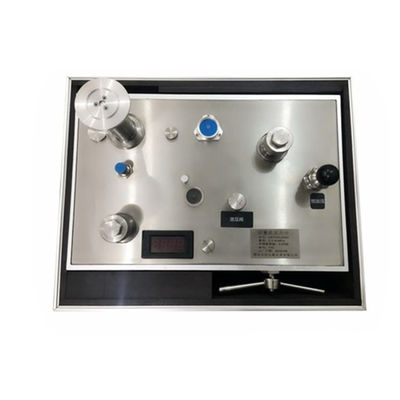

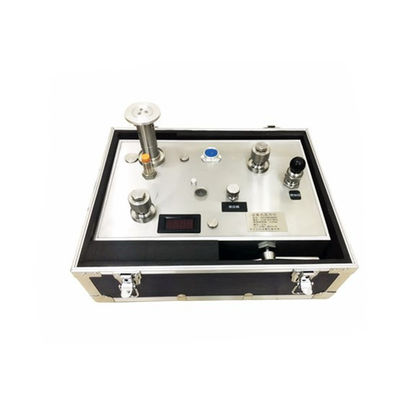

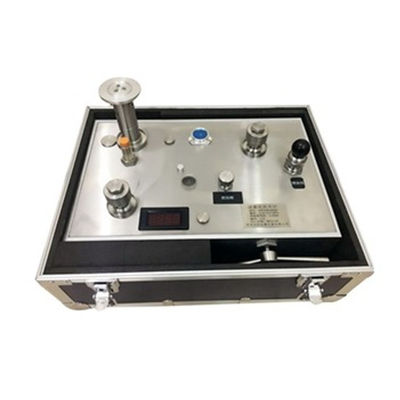

Piston hydraulic dead weight tester pressure gauge calibration machine is designed on the base of YS series and KY Series dead weight tester, with structural optimization, super wear-resistant and perfect reliability. The highest process of DK dead weight tester is 0.005%; The max pressure range is 160MPa. DK dead weight tester adopt modular structure, a platform can be installed in different piston systems, achieve economic and practical purposes.
1. Modularity: Piston and pressure generator system is fully modular structure, the various modules can implement a single function or a combination of work
2. Stability: hydraulic piston using low weights to ensure high reliability and stability.
3. Interchangeability: - any piston - sleeve unit
4. Piston - sleeve unit: made of tungsten carbide materials; other parts made of high quality austenitic stainless steel, which can effectively prevent deformation. There are six ranges for choose
5. Weight: Adopts demagnetization quality austenitic stainless steel
6. Rotational speed: in free rotation state, the rotational speed is related to the time, e.g. 60MPa product, after 30 minutes, the rotational speed is from the initial speed of the drops 33.0RPM to 24.8rpm. This also shows that the piston - sleeve gap pressure distribution is uniform.
7. Effective area: under normal atmospheric pressure and 20 ℃ conditions, the piston - the average effective area of the cartridge unit, and pressure deformation coefficient can be measured by the reference gauge
8. Piston descending speed: in the range of 60MPa case, the relationship between the piston speed and the pressure drop is shown below. In the range of 100MPa case for all of the components, the rate of decline and the effective piston area of pressure become a linear relationship, the maximum rate of decline is less than 5μm/s. Maximum effective area changes is less than 0.0006mm2.
| SLK-DKHH uncertainty:0.005%rdg(Medium:dioctyl sebacate) | |
| SLK-DKHH0025 | (0.1—2.5)MPa |
| SLK-DKHH0006 | (0.04—0.6)MPa |
| SLK-DKHH0060 | (0.1—6)MPa |
| SLK-DKHH0600 | (1—60)MPa |
| SLK-DKLP0100 | (1—100)MPa |
| SLK-DKHH uncertainty:0.02%rdg (Medium:dioctyl sebacate) | |
| SLK-DKHH2025 | (0.1—2.5)MPa |
| SLK-DKHH2006 | (0.04—0.6)MPa |
| SLK-DKHH2060 | (0.1—6)MPa |
| SLK-DKHH2600 | (1—60)MPa |
| SLK-DKHH2100 | (1—100)MPa |
| SLK-DKHH uncertainty:0.05%rdg (Medium:dioctyl sebacate) | |
| SLK-DKHH5025 | (0.1—2.5)MPa |
| SLK-DKHH5006 | (0.04—0.6)MPa |
| SLK-DKHH5060 | (0.1—6)MPa |
| SLK-DKHH5600 | (1—60)MPa |
| SLK-DKHH5100 | (1—100)MPa |
NanCon considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Zhejiang NanCon Industrial Technology Co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
