| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | VS Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1700~$2100/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Vacuum Pressure Tester Dead Weight Tester | Pressure Range: | -0.005~-0.1;0.005~0.25 -0.005~-0.1;0.005~0.6 |
|---|---|---|---|
| Work Temperature: | 15 To 30℃ | Diemnsion: | 65x55x35cm |
| Weight: | 40-90kg | Application: | Pressure Gauge And Pressure Transmitter |
| Medium: | Oil | Thread: | 1/4NPT Or Others |
| Warranty: | 24 Months | OEM: | Yes |

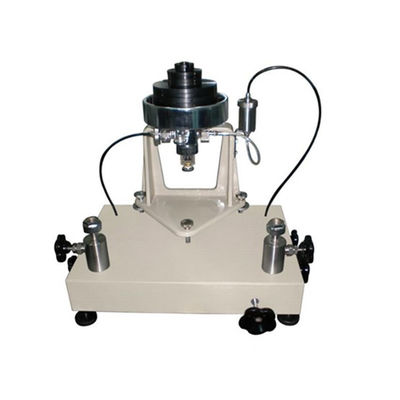

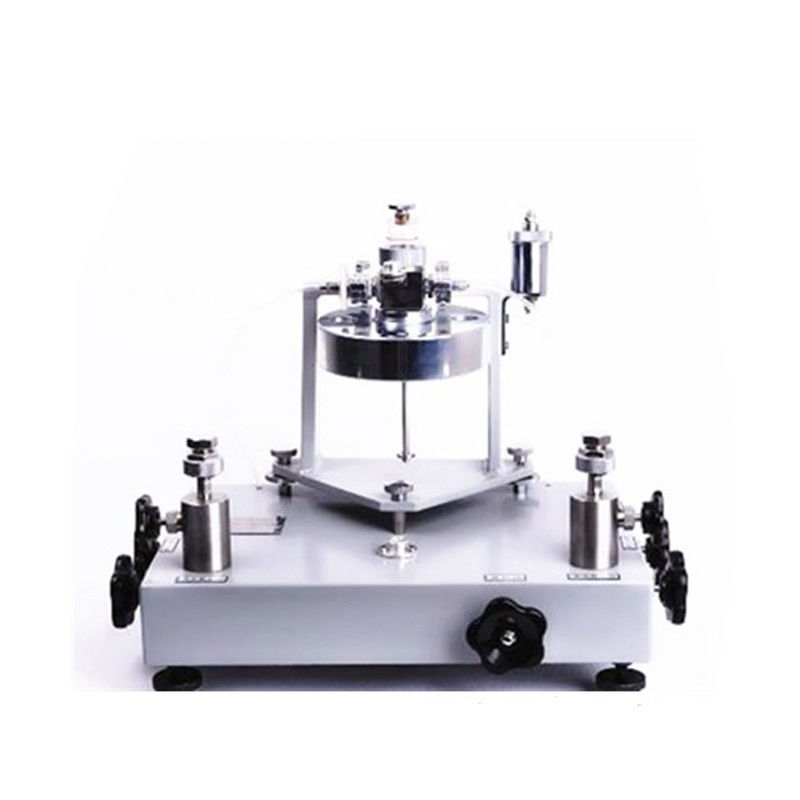

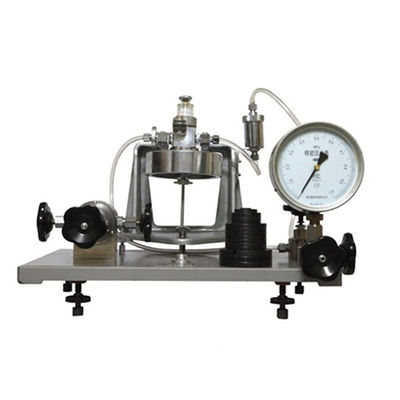

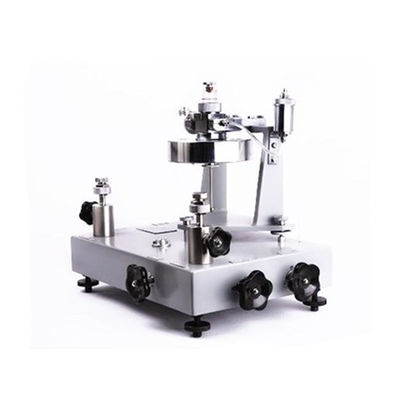

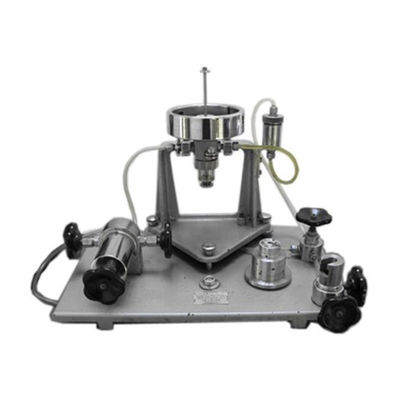

This Vacuum Pressure Tester dead weight tester (simple type model) deadweight vacuum testers is a pressure metrology instrument which is used for the magnitude transmitting and pressure instruments calibration, such as pressure gauge,pressure sensor,pressure transmitter and so on.
* Measurement Range: -0.005~-0.1MPa
0.005~0.25 MPa
-0.005~-0.1 MPa
0.005~0.6 MPa
* Accuracy:±0.02%,±0.05%
* Function: Test the Digital Pressure Gauge, High-accuracy Pressure Gauge and the Pressure Transmitter
Piston (the rod and barrel): wolfram carbide
Weights: Non-magnetic stainless steel (level 0.05, 0.01, 0.02);
Carbon steel (level 0.05)
Below 25MPa: transformer oil or the mixed oil (voltage transformer oil and kerosene oil)
Above 25MPa: diisooctyl sebacate
* Accord with the national JJG59-2007<<Piston-type pressure gauge>> rule
* Abrasive resistance improved because of the high-tensile and high-hardness wolfram carbide material
* Able to test two gauges synchronously; Applied the fast pressure plug; no oil leakage
*Good stability
