| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | SR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $125~$460.00 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Material: | Stainless Steel | Max Inlet Pressure: | 3000psi |
|---|---|---|---|
| Thread Connection Type: | 1/4 Or 1/2 Npt | Delivery Time: | About 7 Days |
| Warranty: | 24 Months |
Laboratory Field Pressure Regulators Control Instrument Valves
Product Description
SR 32 Series back pressure regulator adopts piston decompression structure, outlet pressure is stable, mainly used to meet high inlet pressure requirements, the max inlet pressure always is 3000 psig, is suitable for high purity gas, standard gas, and liquid.

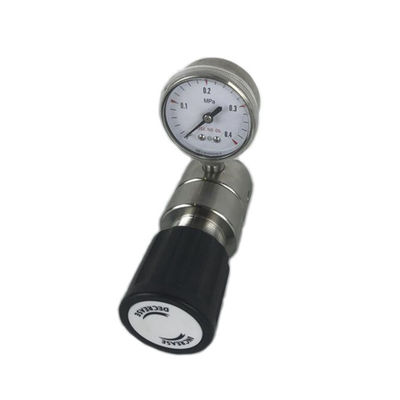

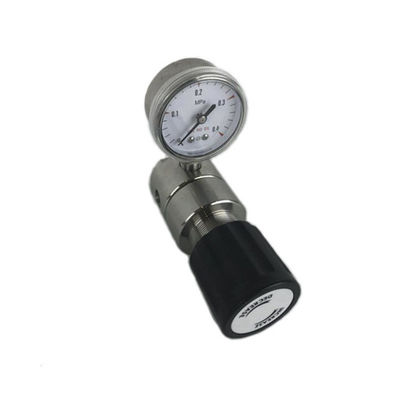

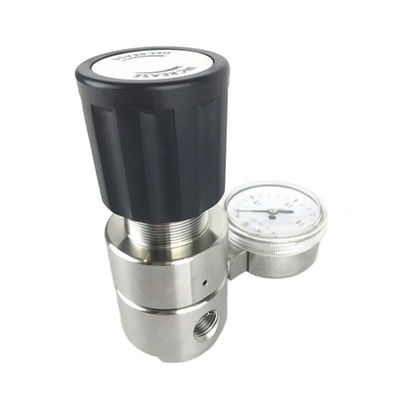

Detailed Images
Specification
| Laboratory Field Pressure Regulators Control Instrument Valves | |
| Max Inlet Pressure | 3000PSI |
| Safety Testing Pressure | 1.5 Time of Maximum Inlet Pressure |
| Working Temperature | -40℃ ~ +230℃ |
| Thread Connection Type | 1/2 or 1/4Npt |
| Leakage Rate | Bubble Test |
| CV Value | 0.02 |
| Weight | 1.5KGS |
| Valve Body | 316L |
| O-Ring Seal Parts | Viton |
Application
* Laboratory
* Gas analysis test
* Fluid control
* Petrochemical industry
* Test Equipment
Features
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Related Products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
