| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SR31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $116~$168 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Max Inlet Pressure: | 3000psi, 6000psig | Outlet Pressure: | 0-250psig, 0-500psig, 0-1500psig, 0-3000psig |
|---|---|---|---|
| Safety Testing Pressure: | 1.5 Times Of Maximum Inlet Pressure | Working Temperature: | -23℃~ 74℃(-10°F ~ 165°F) |
| Leakage Rate: | 2*10-8 Atm Cc/sec He | CV Value: | 0.02, 0.06, 0.08, 0.2 |
| Weight: | About 1.5kg | Product Name: | Stainless Steel Adjustable Air Gas Pressure Regulator |
Descriptio

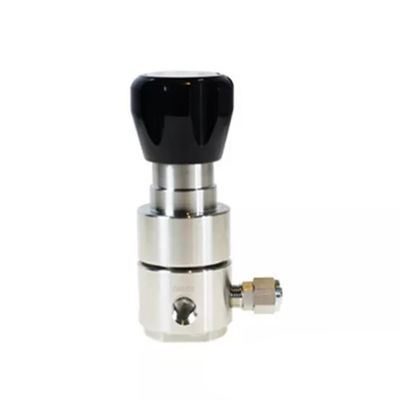

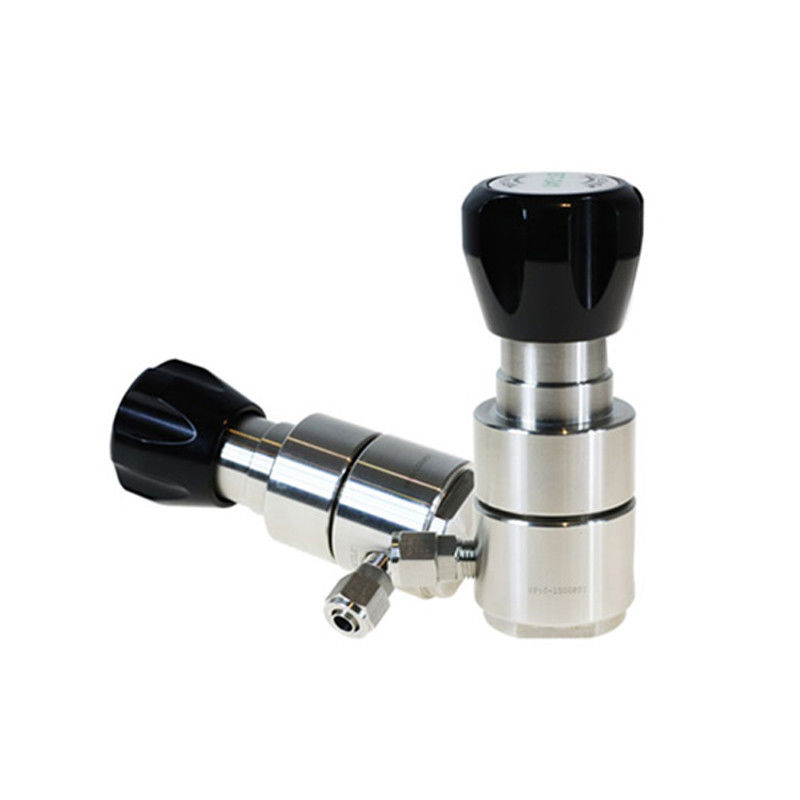

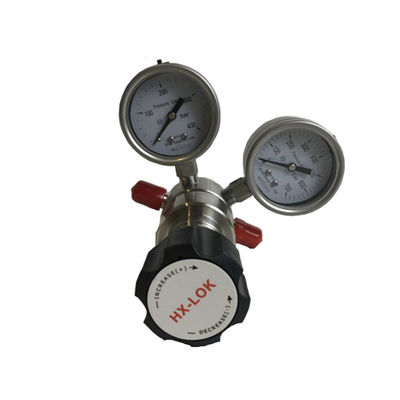

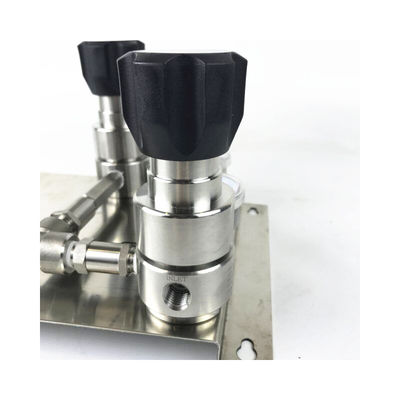

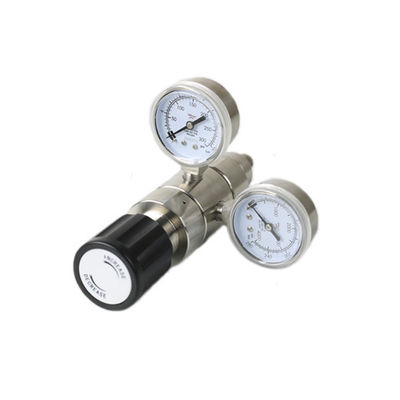

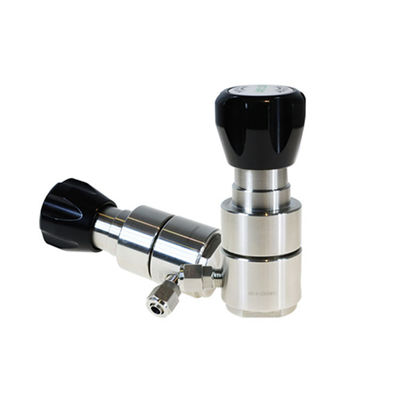

SR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.
Detailed Images
Specification
| Stainless steel adjustable gas pressure regulator | |
| Max inlet pressure | 3000psi, 6000psi |
| Outlet pressure | 0-250psi, 0-500psi, 0-1500psi, 0-3000psi. |
| Safety testing pressure | 1.5 times of maximum inlet pressure |
| Working temperature | -23℃~ 74℃(-10°F ~ 165°F) |
| Leakage rate | 2*10-8 atm cc/sec He |
| CV value | 0.02, 0.06, 0.08, 0.2 |
| Weight | About 1.5kg |
Applications
* Laboratory
* Gas chromatograph
* Gas lasers
* Gas bus
* Petrochemical industry
* Test Equipment
Features
· Double stage decompression structure
· Valve body and diaphragm adopt hard seal form
· The internal structure is easy to clean
· Inside is equipped with filter
· Can be panel mounted
· Can choose needle valve, diaphragm valve for outlet
Material
· Valve body: 316L
· Top cover: 316L
· Diaphragm: 316L
· Filter: 316L (10μm)
· Valve seat: PCTFE , PTFE, Vespel
· Spring: 316L
