| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SR31 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $130~$180 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Pressure Regulator Pressure Reducing Valve Pressure Relief Valve | Max Input Pressure: | 6000PSI |
|---|---|---|---|
| Controlled Back Pressure: | 0-6000psi | Safety Pressure: | 1.5 Times The Maximum Inlet Pressure |
| Thread: | NPT "1/4 (F) | Applicable Temperature: | -40℃~74℃(-40℉~165℉) |
| CV: | 0.2 | Internal Leak Rate: | 2 X 10-8atm.cc/sec He |
| Body Material: | 316L | Seat Material: | PCTFE, Vespel |
Description

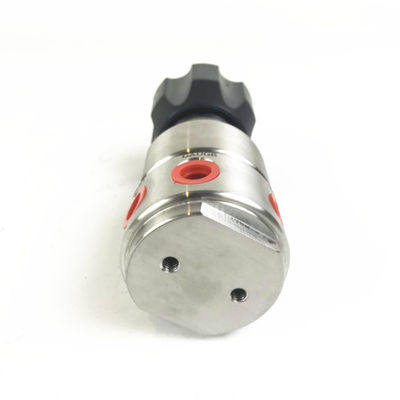

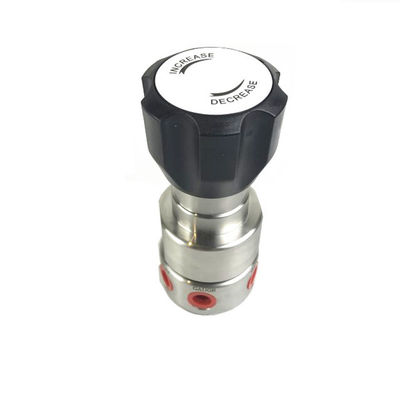

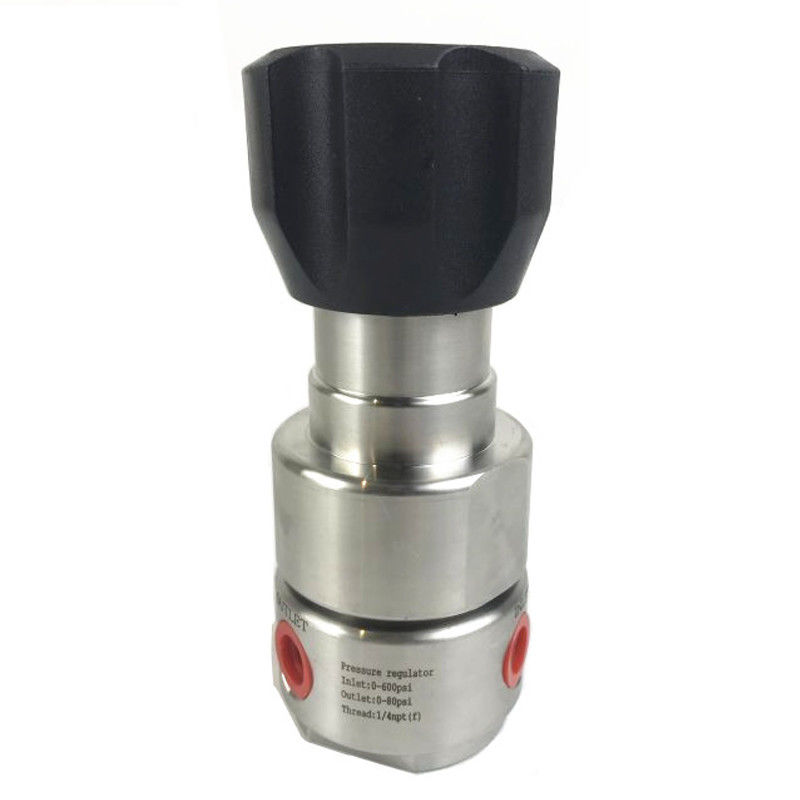

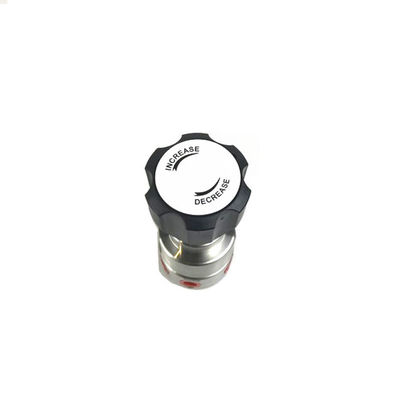

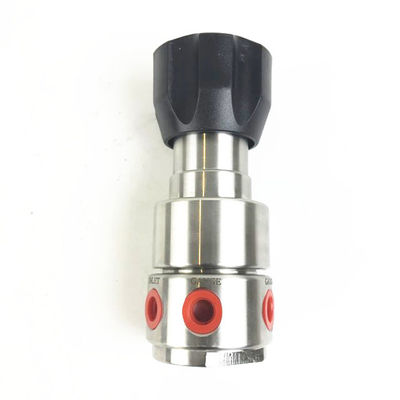

YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.
Specification
| Outlet pressure | 0-250psig, 0-500psig, 0-1500psig, 0-3000psig | ||
| Max inlet pressure | 3000psi, 6000psig | Leakage rate | 2*10-8 atm cc/sec He |
| Safety testing pressure | 1.5 times max inlet pressure | Ambient temperature | -23℃~ 74℃(-10°F ~ 165°F) |
| CV value | 0.02, 0.06, 0.08, 0.2 | Weight | About 1.5kg |
| Valve body | 316L | Top cover | 316L |
| Diaphragm | 316L | Filter | 316L (10μm) |
| Valve seat | PCTFE , PTFE, Vespel | Spring | 316L |
Application
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Features
Double stage decompression structure
Valve body and diaphragm adopt hard seal form
The internal structure is easy to clean
Inside is equipped with filter
Can be panel mounted
Can choose needle valve, diaphragm valve for outlet
Selection Guide
| Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
|
0-6000psig 0-3000psig 0-1500psig 0-1000psig |
0-4000 psig 0-2000 psig 0-1000 psig 0- 500 psig |
With gauge (mpa) With gauge (psig) Without gauge |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
