| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $156~$273 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Pressure Stainless Steel Air Back Pressure Regulator | Max Inlet Pressure: | 10000psi |
|---|---|---|---|
| Material: | Stainless Steel | General Size: | 1/4 Or 1/2 FNPT |
Description
SLK-YR32 back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

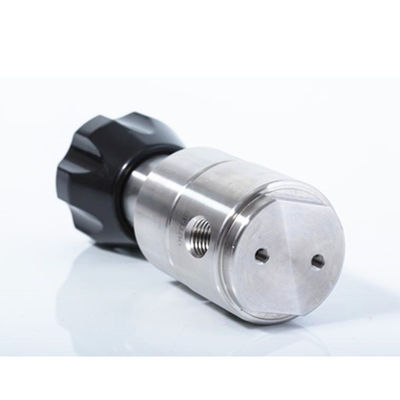

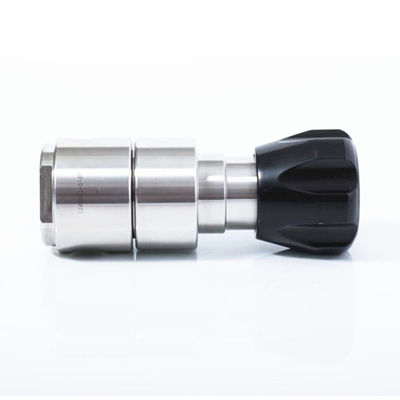

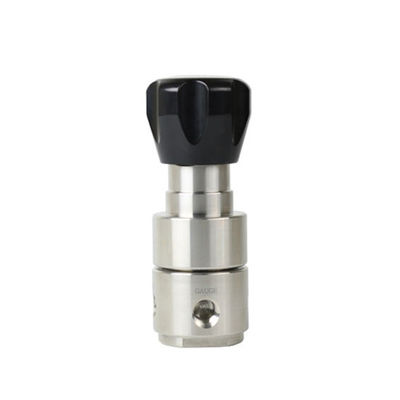

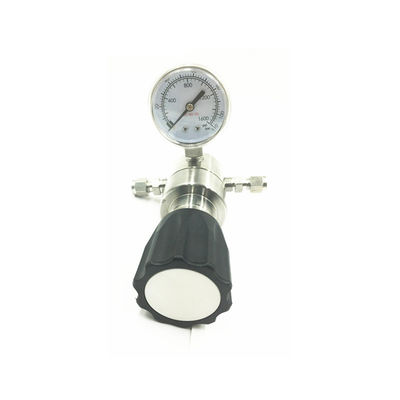

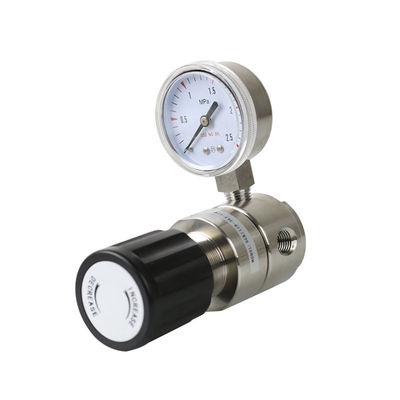

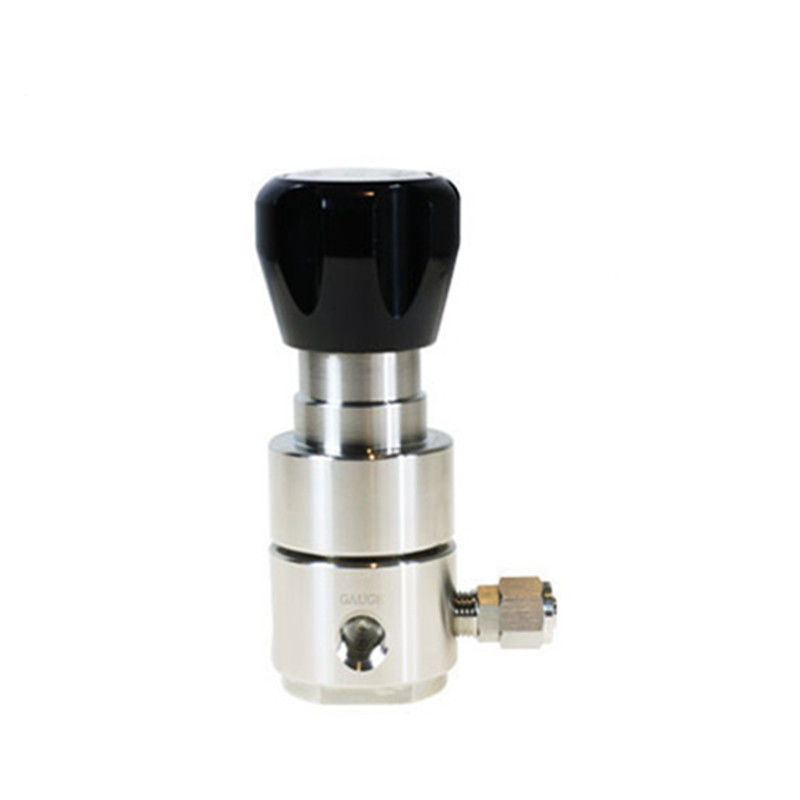

Detailed Images
Specification
1. The maximum input pressure: 10000 psi
2. Controlled back pressure: 0-6000psi
3. Safety test pressure: 1.5 times max inlet pressure
4. Applicable temperature: -40℉~+165℉(-40℃~+74℃)
5. Leak rate: 2x10-8 atm cc/sec He
6. CV value: 0.2
7. Weight: About 1.5 kg
8. Package size: 17cm*17cm*17cm
9. Material: Stainless steel.
Dimension
Designed features
1. Single stage type relief structure.
2. Maternal and diaphragm use hard seal form.
3. The internal structure easy to purge and with filter.
4. Can use panel or wall mounting.
Selection
| Model | Valve material | Inlet pressure | Pressure gauge | Inlet port | Outlet port |
| SLK-YR32 | A: 316L |
A: 0-500psig B:0-100psig C:0-1500psig D:0-2500psig E:0-3000psig F:0-6000psig G:0-10000psig
|
A:With gauge (mpa) B:With gauge (psig/bar) C:Without gauge |
A:1/4'' NPT(F) B:3/8'' NPT(F) C:1/2'' NPT(F) D:1/2'' NPT(M) E:3/8'' fitting F:1/2'' fitting G: Or custom |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |
Related products
|
|
|
|
FAQ
Q: Are you manufacturer?
A: Yes, we are manufactuer
Q: Is there any certificate for this product?
A: Yes,we have CE certificate for our pressure regulator
Q: When can I get the reply from you?
A: We will reply you as soon as possible when we receive your inquiry, must be within 12 hours.
Q: When can I get the package after the payment?
A: Lead time is always about 3-5 days, and delivery time is about 1-5 working days.
