| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$273 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Pressure Regulator Water 6000 Psi | Max Inlet Pressure: | 10000psi |
|---|---|---|---|
| Max Outlet Pressure: | 6000psi | General Size: | 1/4 Or 1/2 FNPT |

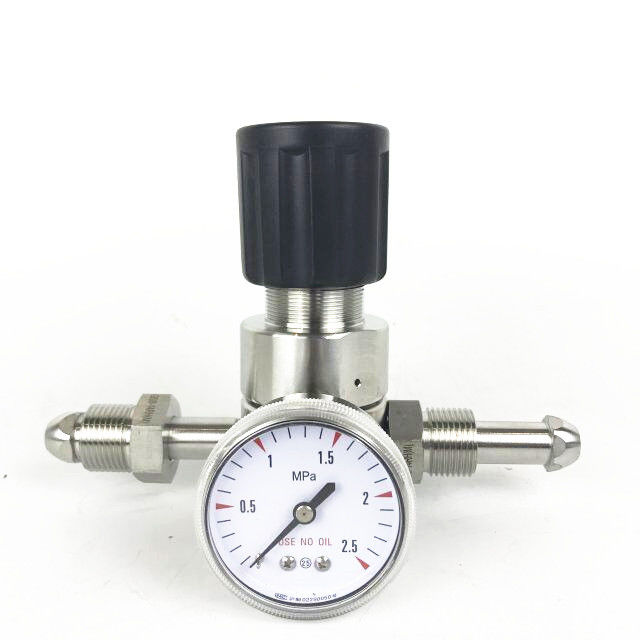

High pressure regulator water 6000 psi
Description
SLK- YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

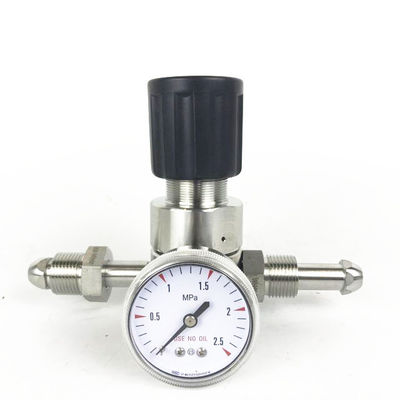

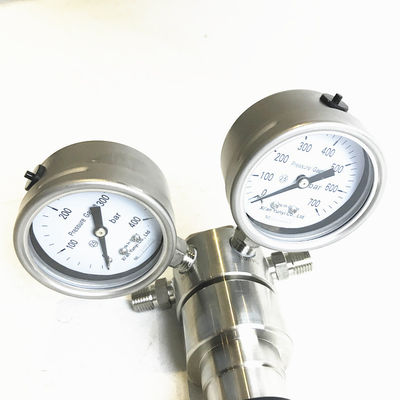

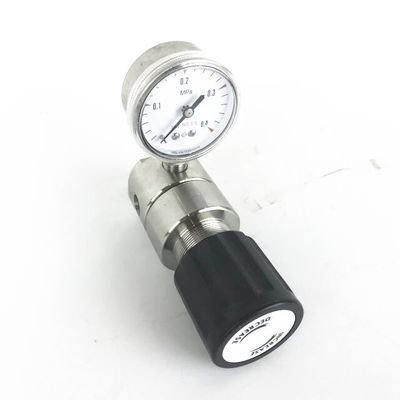

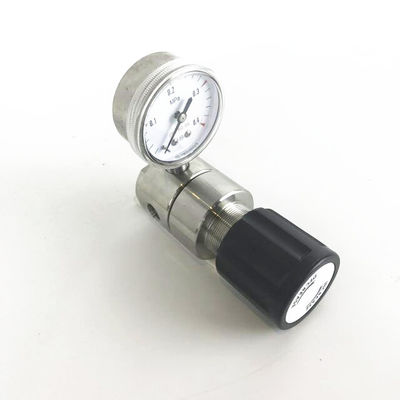

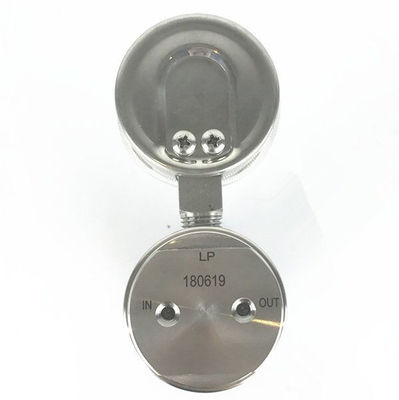

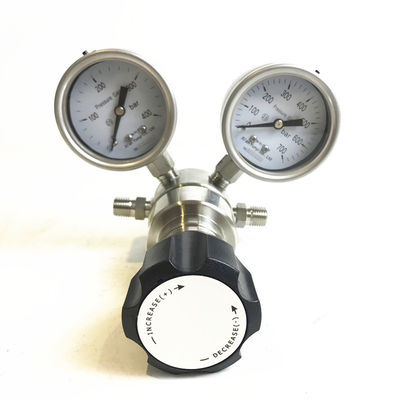

Detailed Images
Specification
Max inlet pressure: 3000psi, 6000psig,10000psi
Outlet pressure: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig. 0-6000psi
Safety testing pressure: 1.5 times of maximum inlet pressure
Working temperature: -23℃~ 74℃(-10°F ~ 165°F)
Leakage rate: 2*10-8 atm cc/sec He
CV value: 0.02, 0.06, 0.08, 0.2
Weight: About 1.5kg
Flow rate
Designed features
· Double stage decompression structure
· Valve body and diaphragm adopt hard seal form
· The internal structure is easy to clean
· Inside is equipped with filter
· Can be panel mounted
· Can choose needle valve, diaphragm valve for outlet
Selection
| Model | Valve material | Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
| SLK-YR31 | 316L |
0-10000psi 0-6000psig 0-3000psig 0-1500psig 0-1000psig |
0-6000psig 0-4000psig 0-2000psig 0-1000psig 0- 500psig |
With gauge (mpa) With gauge (psig) Without gauge |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
Delated products
|
|
|
|
FAQ
Q: Are you manufacturer?
A: Yes, we are manufactuer
Q: Is there any certificate for this product?
A: Yes,we have CE certificate for our pressure regulator
Q: When can I get the reply from you?
A: We will reply you as soon as possible when we receive your inquiry, must be within 12 hours.
Q: When can I get the package after the payment?
A: Lead time is always about 3-5 days, and delivery time is about 1-5 working days.
