| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $116~$168 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Max Inlet Pressure: | 3000psi, 6000psig | Outlet Pressure: | 0-250psig, 0-500psig, 0-1500psig, 0-3000psig |
|---|---|---|---|
| Safety Testing Pressure: | 1.5 Times Of Maximum Inlet Pressure | Working Temperature: | -23℃~ 74℃(-10°F ~ 165°F) |
| Leakage Rate: | 2*10-8 Atm Cc/sec He | CV Value: | 0.02, 0.06, 0.08, 0.2 |
| Weight: | About 1.5kg | Warranty: | 12 Months |
| Applicable Temperature: | -40℉~+165℉(-40℃~+74℃) | Material: | SS 316L |
Stainless Steel Adjustable Air Pressure Relief Regulator Valve with 2pcs Pressure Gauge
Description
YR31 series back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

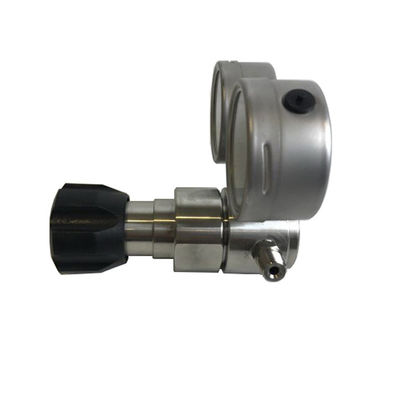

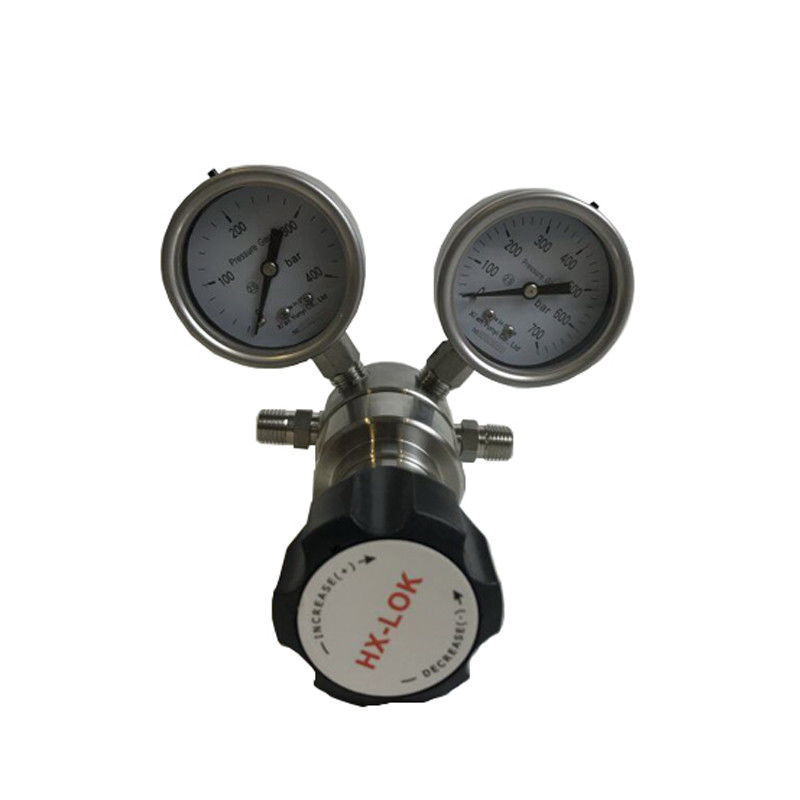

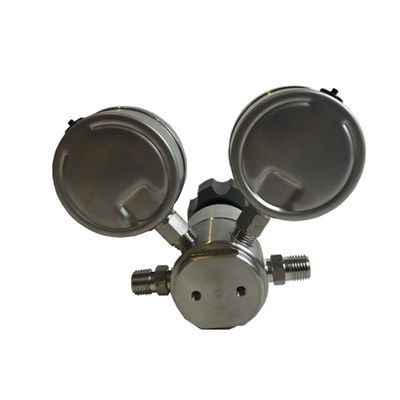

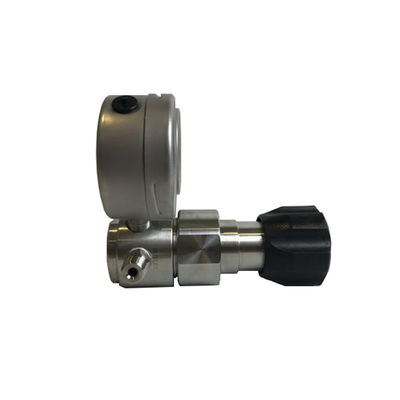

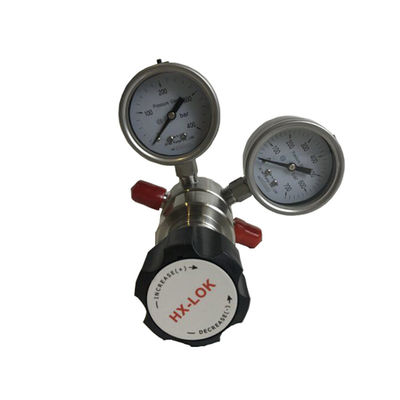

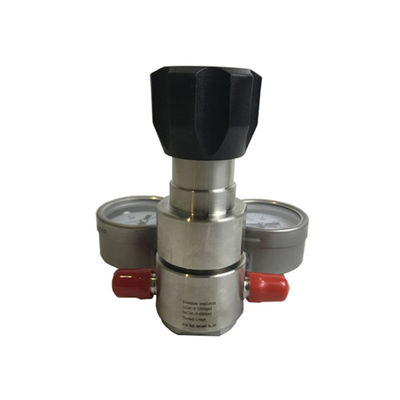

Detailed Images
Specification
| Stainless Steel Adjustable Air Pressure Relief Regulator Valve with 2pcs Pressure Gauge | |
| Maximum Input Pressure | 6000 psi |
| Safety test pressure | 1.5 times max inlet pressure |
| Applicable temperature | -40℉~+165℉(-40℃~+74℃) |
| Leak rate | 2x10-8 atm cc/sec He |
| CV value | 0.2 |
| Weight | 1.5 kg |
| Package size | 17cm*17cm*17cm |
| Material | Stainless steel |
Features
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Applications
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Selection Guide
| Model No. | Valve Material | Inlet Pressure | Pressure Gauge | Inlet Port | Outlet Port |
| YR31 | 316L | 0 ~ 500PSI | | With Gauge(Mpa) | 1/4" NPT(F) | 1/4" NPT(F) |
| 0 ~ 100PSI | | With Gauge(PSI/Bar) | 3/8" NPT(F) | 3/8" NPT(F) | ||
| 0 ~ 1500PSI | | Without Gauge | 1/2" NPT(F) | 1/2" NPT(F) | ||
| 0 ~ 2500PSI | 1/2" NPT(M) | 1/2" NPT(M) | |||
| 0 ~ 3000PSI | 3/8" Fitting | 3/8" Fitting | |||
| 0 ~ 6000PSI | 1/2" Fitting | 1/2" Fitting | |||
| Or custom | Or custom |
Outline drawing
