| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $134~$273 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Max Input Pressure: | 6000PSI | Max Output Pressure: | 0-3000PSI |
|---|---|---|---|
| Safety Pressure: | 1.5 Times The Maximum Output Pressure | Thread: | NPT "1/4 (F) |
| Applicable Temperature: | 40℃~74℃(-40℉~165℉) | CV: | 0.06 |
| Internal Leak Rate: | 2 X 10-8atm.cc/sec He | Body Material: | 316L |
| Seat Material: | PCTFE, Vespel | Product Name: | Stainless Steel Natural Gas Pressure Lpg Regulator |

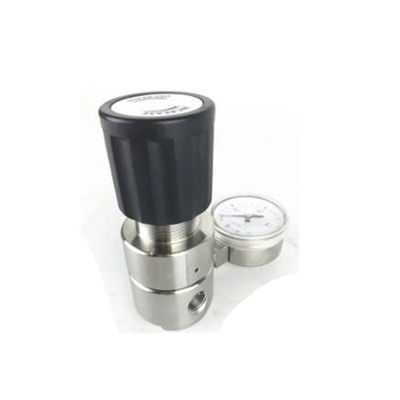

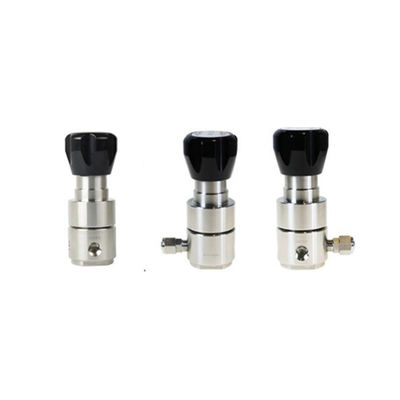

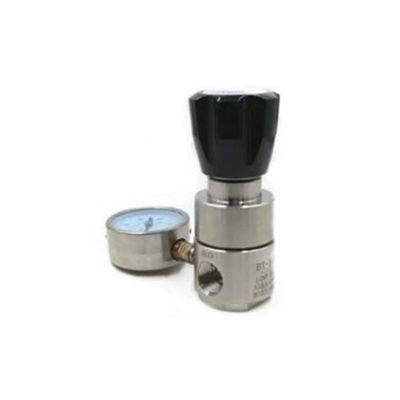

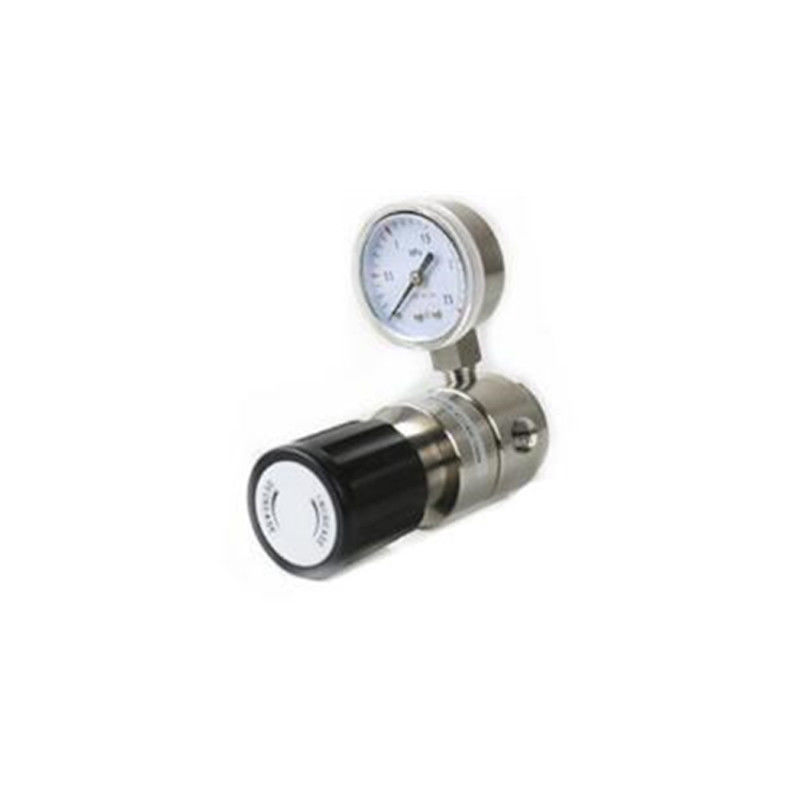

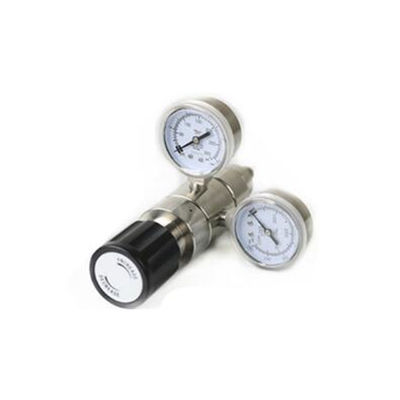

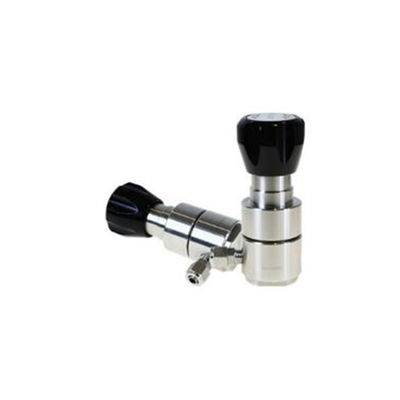

Description Stainless Steel natural gas Pressure lpg regulator
YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.
Detail Stainless Steel natural gas Pressure lpg regulator
Specification Stainless Steel natural gas Pressure lpg regulator
| Material | 316 stainless steel |
| Max inlet pressure | 6000psi(413.7bar) |
| Outlet pressure range | 0 to 2500psi(172.4bar) |
| Discharge coefficient | (Cv)0.025 0.06(standard) 0.2 0.5 |
| Weight | 1.55kg |
| Max using temperature |
℃(℉)::66(150) PCTFE:80(175) PEEK: 260 (500). |
| Max inlet pressure | psi(bar )::3600(248.2) PCTFE:6000(413.7) PEEK:3 600(248.2). |
Features Stainless Steel natural gas Pressure lpg regulator
1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.
2. The design of piston structure is compact.
3. Proper material adopts 316L stainless steel.
4. Installed with plate can be chosen.
5. Can be equipped with 20um filter at the entrance.
6.Pls make sure the using temperature, pressure,medium before choosing the product.
7. All of the 316L stainless steel meets the ASTM standard.
8.All of the ,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
Applications Stainless Steel natural gas Pressure lpg regulator
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Selection Guide Stainless Steel natural gas Pressure lpg regulator
| Model | Valve material | Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
| YR31 | l 316L |
0-6000psig 0-3000psig 0-1500psig 0-1000psig |
0-4000 psig 0-2000 psig 0-1000 psig 0- 500 psig |
l With gauge (mpa) l With gauge (psig) l Without gauge |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
