| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | R32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $116~$178 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Standard Or Nonstandard: | Standard | Measure Range: | 0.0 - 14.0 PH |
|---|---|---|---|
| Accuracy: | ±0.1 PH (20°C), ±0.2 PH | Application Temp: | 0 - 50°C (32 - 122°F) |
| Label: | Customized Available | Product Name: | Customized Gas Pressure Reduction Valve For Promotion |
| Thread Size: | G 5/8, 1/4 Or 1/2fnpt |

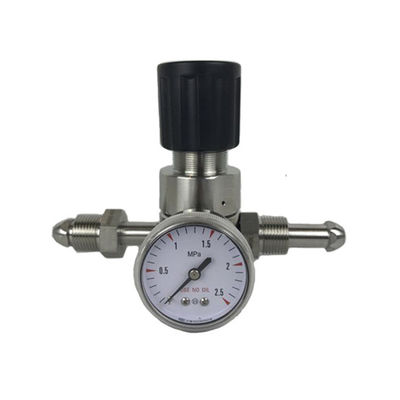

Relief Pressure Regulator with Back Pressure Gauges
Description
This kind of back pressure regulator is with single-stage diaphragm plunger structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

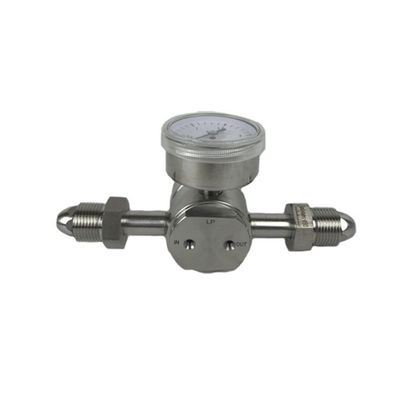

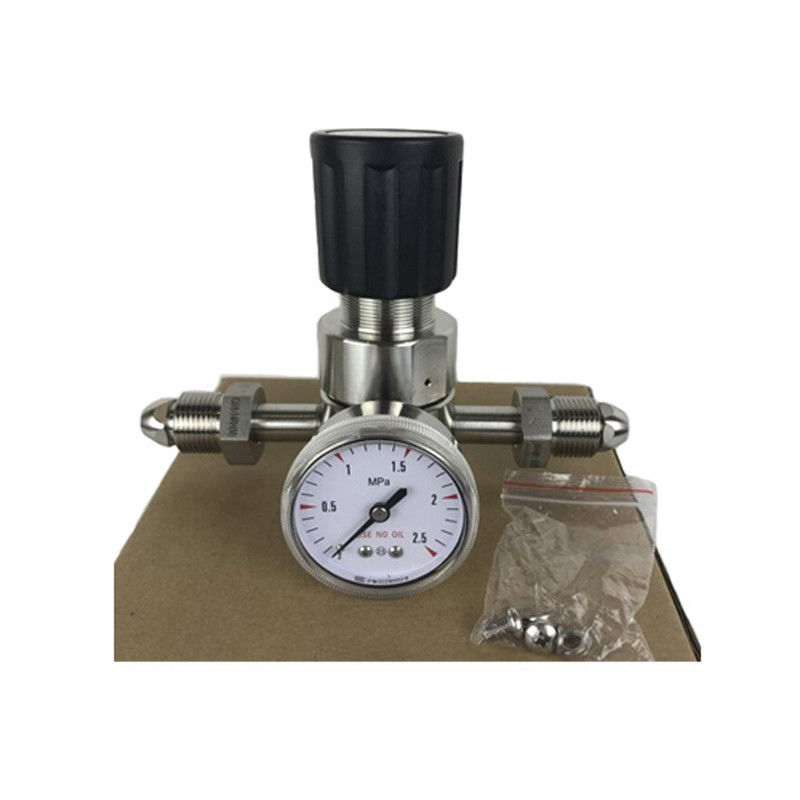

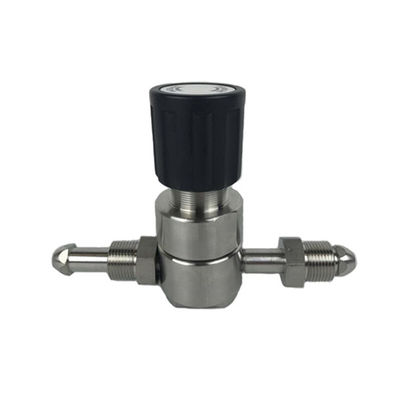

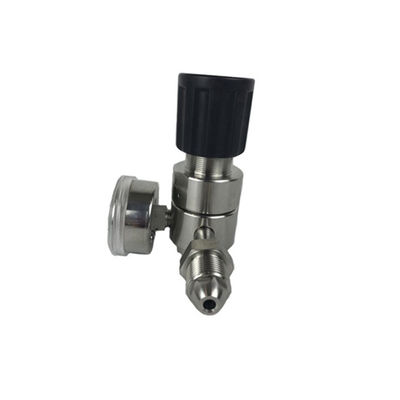

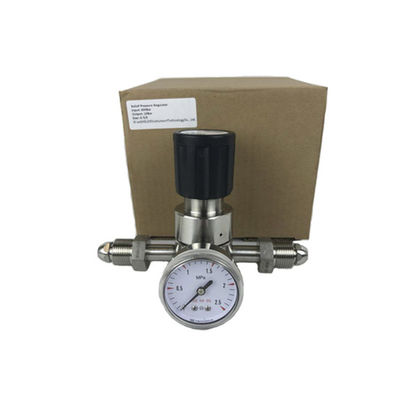

Detailed Images
Specification
| Relief Pressure Regulator with Back Pressure Gauges | |
| Controlled pressure | 0-6000psi |
| Safety test pressure | 1.5 times max inlet pressure |
| Applicable temperature | -40℉~+165℉(-40℃~+74℃) |
| Leak rate | 2x10-8 atm cc/sec He |
| CV value | 1.0 |
| Thread connection type | G 5/8, 1/4 or 1/2fnpt |
| Weight | About 2.3 kg |
| Package size | 25cm*20cm*18cm |
| Material | Stainless steel |
| Seals material | PCTFE or PEEK |
Features
Body with six port design
Double stage pressure reducing structure
Metal to metal diaphragm seal
Body inlet and outlet port: 1/4”NPT Female
Easy to clean structure
Filter mesh inside
Panel mount or wall mount
Outlet with needle valve or diaphragm valve for option
Struction
Outline
Selection Guide
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
