| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | R32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $158~$195 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Material: | Stainless Steel | Max Inlet Pressure: | 6000psi |
|---|---|---|---|
| Max Outlet Pressure: | 2500psi | Thread Connection Type: | 1/2, 1/4npt |
Oilfield Double-stage Air Pressure Relief Valves, Back Pressure Regulator
Description
diaphragm water pressure reducing valve with gauge with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

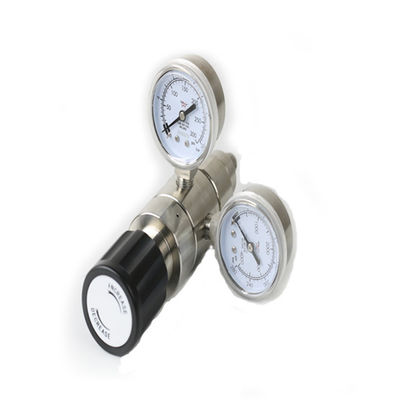

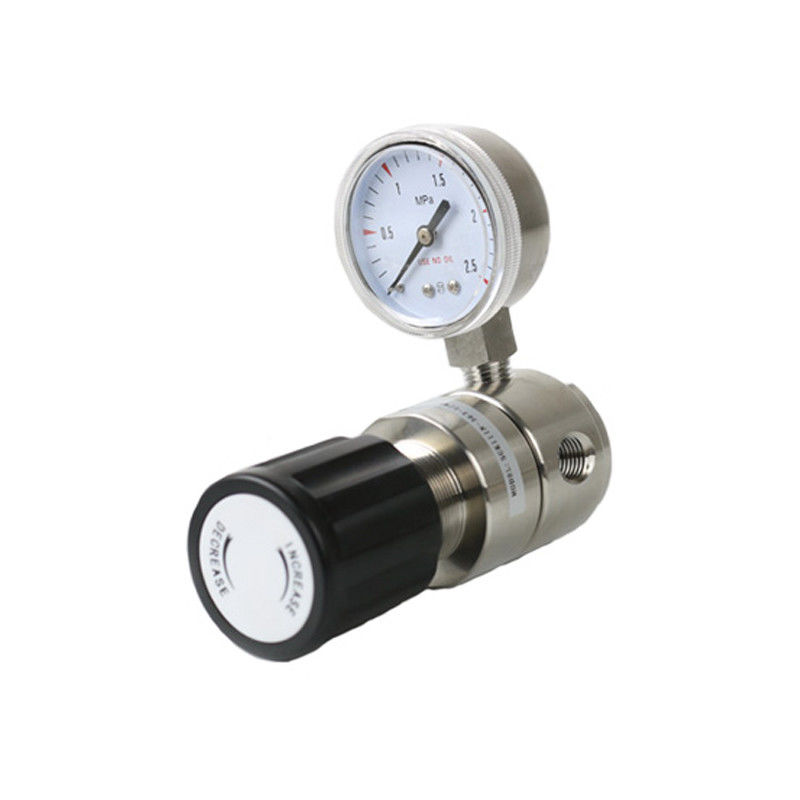

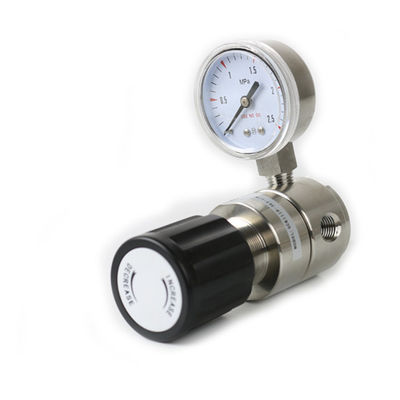

Detailed Images
Specification
| Air Pressure Relief Valves, Back Pressure Regulator | |
| Product Name | Air Pressure Relief Valves, Back Pressure Regulator |
| Max pressure range | 500, 3000 psig, 6000Psi |
| Output pressure | 0-25, 0-50, 0-100, 0-150, 0-250 psig |
| Structure | Diaphragm |
| Design Proof Pressure | 150% of rated inlet |
| Parent interface Thread | NPT "1/4 (F) |
| Applicable temperature | 40℃~74℃(-40℉~165℉) |
| Internal leak rate | 2 x 10-8atm.cc/sec He |
| Flow Capacity | Cv=1.0 Cv=1.8 (Optional) |
| Body material | 316L |
| Seat material | PCTFE, Vespel |
| Piston | 316L |
| O-rings | Viton |
Applications
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
Features
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting

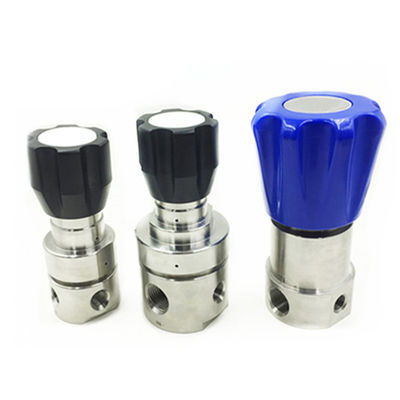

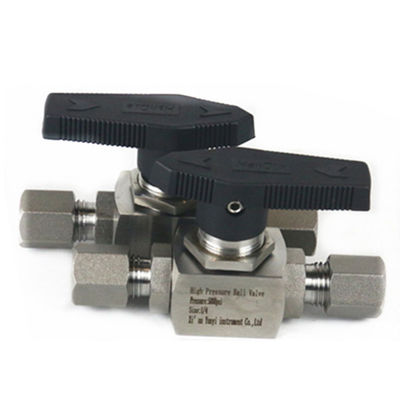

Related products
