| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | R33 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $158~$195 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | 0.0 - 14.0 PH | Accuracy: | ±0.1 PH (20°C), ±0.2 PH |
|---|---|---|---|
| Application Temp: | 0 - 50°C (32 - 122°F) | Label: | Customized Available |
| Product Name: | Customized Gas Pressure Reduction Valve For Promotion | Maximum Input Pressure: | 2200, 3000psi |
| Output Pressure: | 0-25, 0-50, 0-100, 0-250, 0-500psi | Proof Pressure: | 1.5 Times Of Maximum Rated Pressure |
| Working Temperature: | -40 + 165 Deg F (-40 +74 Deg C) | Flow Capacity: | Cv = 0.06 |

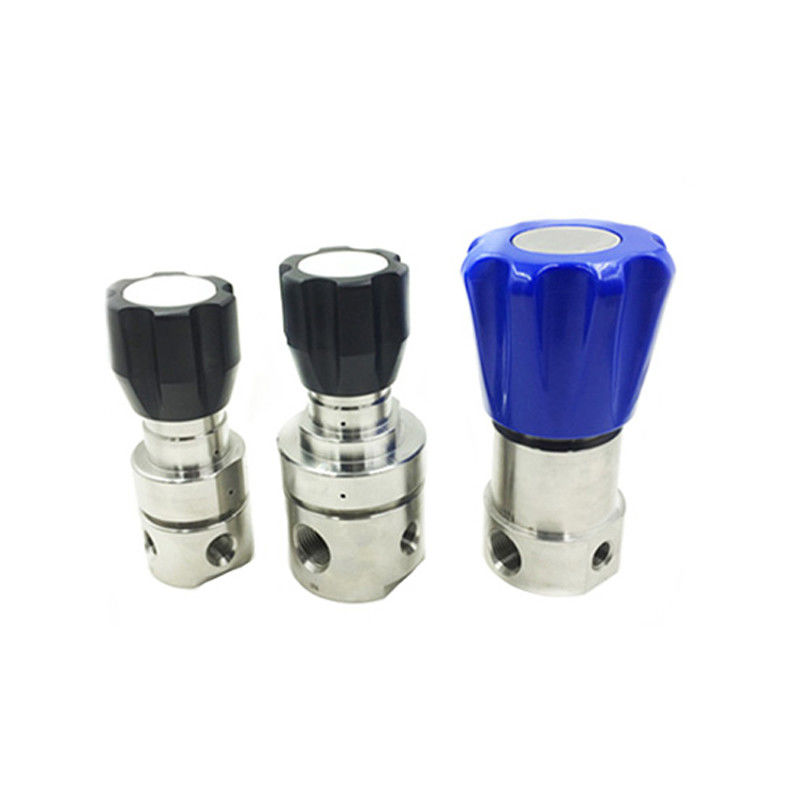

Wholesale Diaphragm Gas Regulator, Pressure Reducing Valves
Description
YR-32 series Low pressure and high pressure gas regulator prices for diesel has double stage diaphragm pressure reducing structure,
constant outlet pressure, suitable for purified gas, standard gas, corrosive gas etc.

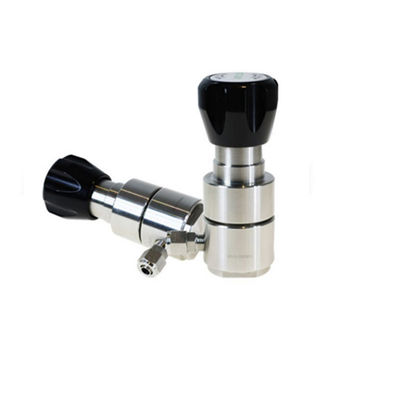

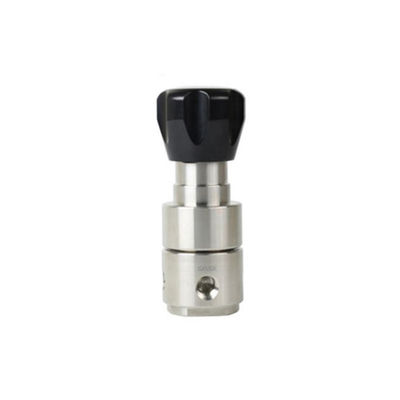

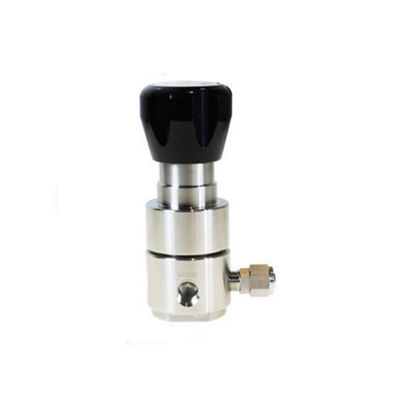

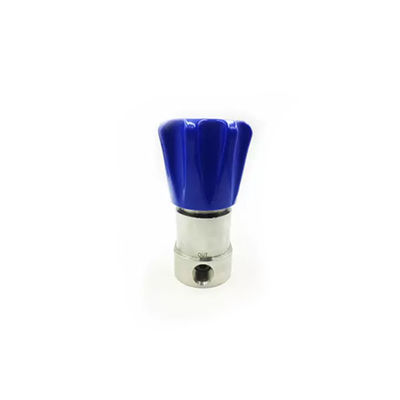

Detailed Images
Specification
| Specification of Diaphragm Gas Regulator, Pressure Reducing Valves | |
| Maximum input pressure | 2200, 3000psi |
| Output pressure | 0-25, 0-50, 0-100, 0-250, 0-500psi |
| Proof pressure | 1.5 times of maximum rated pressure |
| Working temperature | -40 + 165 deg F (-40 +74 deg C) |
| Inboard leakage | 2 x 10-8 atm cc/sec He, at 1500psi input pressure |
| Outboard leakage | 2 x 10-8 atm cc/sec He, at 1000psi input pressure |
| Flow capacity | Cv = 0.06 |
Features
Body with six port design
Double stage pressure reducing structure
Metal to metal diaphragm seal
Body inlet and outlet port: 1/4”NPT Female
Easy to clean structure
Filter mesh inside
Panel mount or wall mount
Outlet with needle valve or diaphragm valve for option
Applications
* Laboratory
* Gas Chromatograph
* Gas Laser
* Gas Manifold System
* Petroleum Chemistry
* Test Equipment
Material
Body: SS 316L
Cover: SS 316L
Diaphragm: SS 316L
Filter mesh: SS 316L (10um)
Seat: PCTFE, PTFE
Spring: SS 316L
Poppet: SS 316L
Pressure gauge (wetted part) SS 316L
Net weight: 1.83 kgs
