| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | R32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$295 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | Back Pressure Regulator Back Pressure Valve | Max Input Pressure: | 6000PSI |
|---|---|---|---|
| Controlled Back Pressure: | 0-6000psi | Safety Pressure: | 1.5 Times The Maximum Inlet Pressure |
| Thread: | NPT "1/4 (F) | Applicable Temperature: | -40℃~74℃(-40℉~165℉) |
| CV: | 0.2 | Internal Leak Rate: | 2 X 10-8atm.cc/sec He |
| Body Material: | 316L | Seat Material: | PCTFE, Vespel |
Description
This kind of stainless steel back pressure regulator is with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.
Specification
| Maximum input pressure | 6000 psi | Controlled back pressure | 0-6000psi |
| Safety test pressure | 1.5 times max inlet pressure | Ambient temperature | -40℉~+165℉(-40℃~+74℃) |
| Leak rate | 2x10-8 atm cc/sec He | CV value | 0.2 |
| Weight | About 1.5 kg | Dimension | 17cm*17cm*17cm |
| Material | Stainless steel | ||

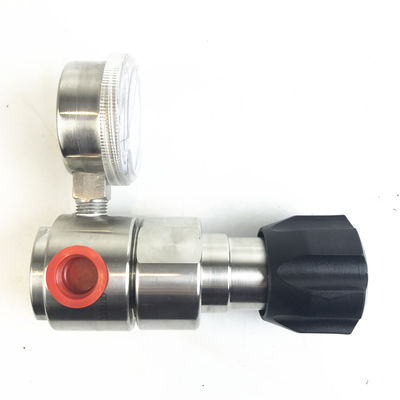

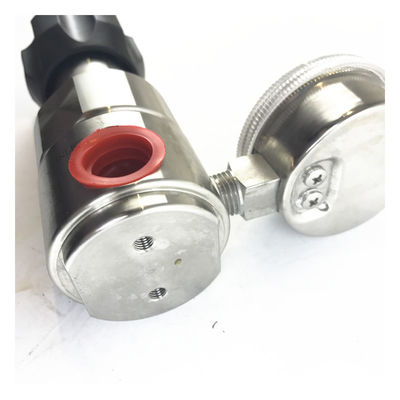

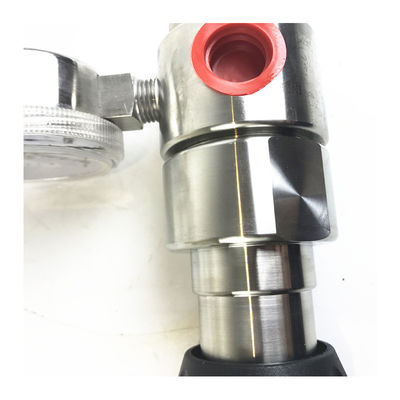

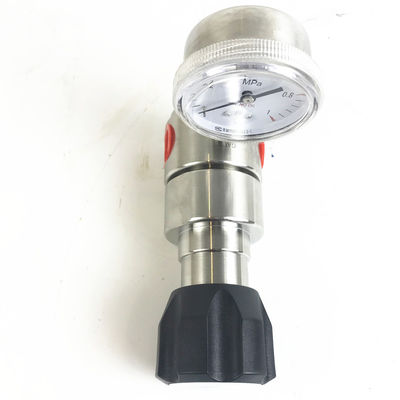

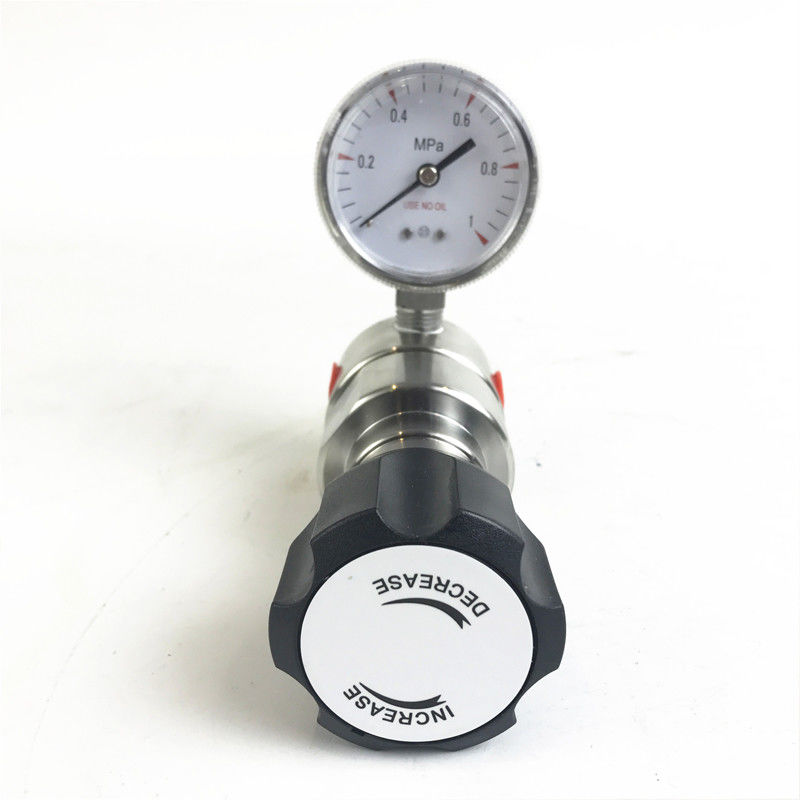

Detailed Images
Features
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Selection Guide
| Inlet pressure | Pressure gauge | Inlet port | Outlet port |
|
l 0-500psig l 0-100psig l 0-1500psig l 0-2500psig l 0-3000psig l 0-6000psig
|
l With gauge (mpa) l With gauge (psig/bar) l Without gauge |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |
1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting 1/2'' fitting Or custom |
