| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | sat-3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$295 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | PTFE Poultry Water Fuel Pressure Regulator | Pressure: | 0~10 Bar |
|---|---|---|---|
| Thread: | RC1/2" | Medium: | Gas,liquid |
| Material: | PTFE |
Description
PTFE back pressure regulator is used to prevent liquid from flowing or siphoning under the action of gravity. At this time, the back pressure valve can reduce the fluctuation of flow and pressure caused by siphoning.
Back Pressure Valve work through the elastic force of spring. When system
pressure is lower than setting pressure, diaphragm will plug the pipeline by spring
pressure; on the contrary, diaphragm will compress spring to put through pipeline, thereby liquid substance flow through Back Pressure Valve.
Features
• Spring diaphragm type structure, adjustable pressure (see parameter table for pressure regulating range)
• For the contact media part, only the lower valve body and diaphragm are available, and the sealing parts of the lower valve body and diaphragm are processed with sealing ribs, with good sealing effect and high sensitivity
• The conventional diaphragm adopts the form of EPDM lining tetrafluorine, which is used for cloth clamping processing, with good sealing effect and high service life;Pure diaphragm has high temperature resistance and strong corrosion resistance
Specification
• Adjustable pressure 0-0.3mpa, 0-1.0mpa (see parameter table for details)
• Safety test pressure: 1.5 times the maximum input pressure
• Applicable temperature: common diaphragm - 5 ℃ to + 80 ℃);Ptfe diaphragm: - 5 ℃ to + 80 ℃)
Material:
• Material of lower valve body: PVC, SS304, SS316L, PTFE, PVDF, PP, carbon steel, etc. (can be customized as required)
• Diaphragm material: EPDM lined with (composite diaphragm), PTFE (polytetrafluoroethylene)
• Material of upper valve body: PVC, carbon steel (nickel plated, blackened), 304 stainless steel, 316L stainless steel

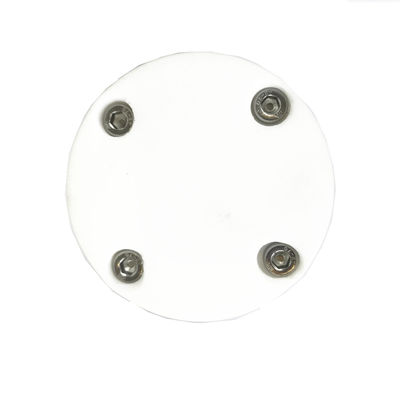

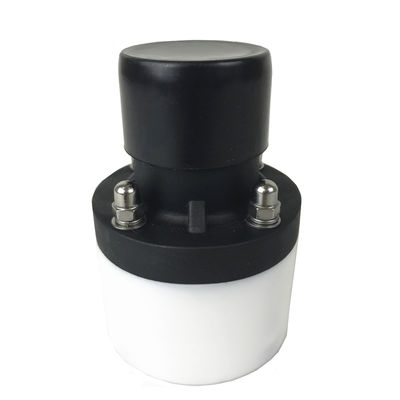

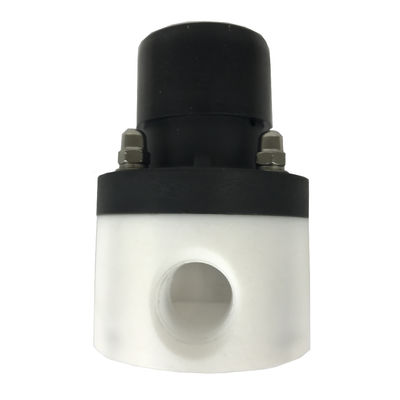

Detailed Images
Applications o
Provide pressure difference at both ends of Back Pressure Valve
Not very strict requirement of the system can use it as Safety Valve
Operate with Pulse Damper can reduce impingement to the system and the peak of flow fluctuation, protect piping, elbows, joints from the impact of pressure fluctuations
Creating good working environment and improving performance of Metering Pump
• Chemical engineering, water treatment, laboratory
• Corrosive liquids, common gases
