| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FDM-1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1795~$2150.00 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Tuning Fork Density Meter | Measuring Range: | 0-2 G/cm3 (0-2000 Kg/m3) |
|---|---|---|---|
| Accuracy Of Measurement: | + / - 0.001 G/cc (+ / - 1 Kg/m3) | Operating Temperature Range: | - 50 ℃ ~ + 200 ℃ |
| The Maximum Working Pressure: | 20 Mpa | Fluid Viscosity Range: | CP 0-20000. |

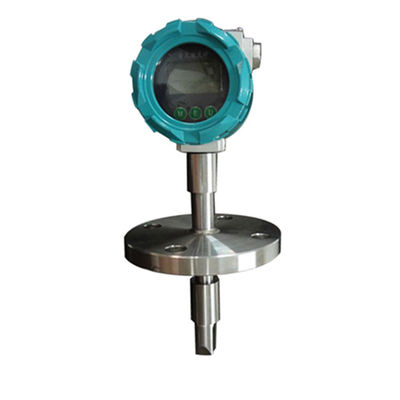

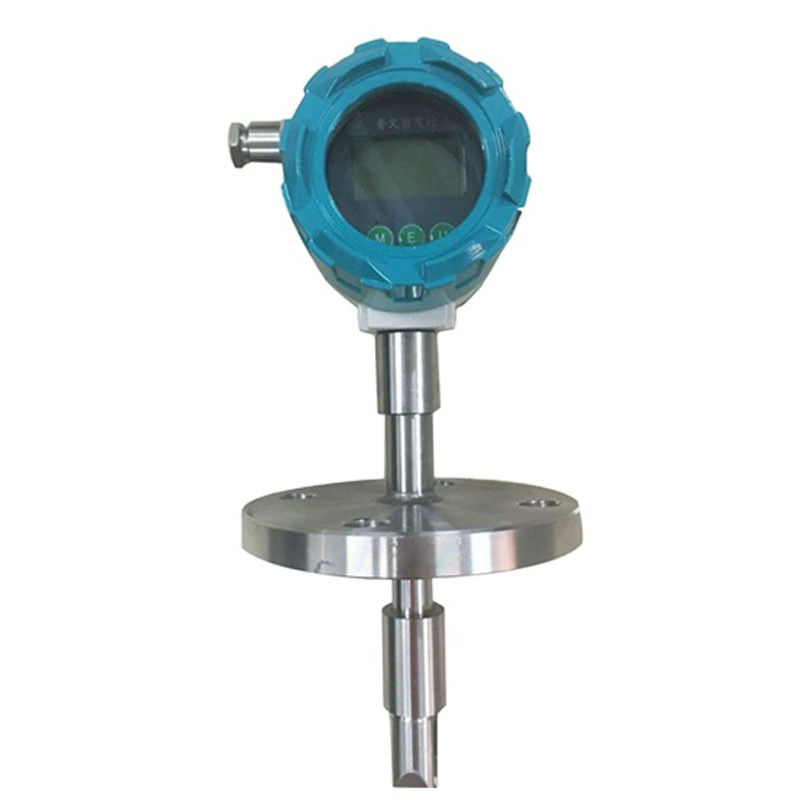

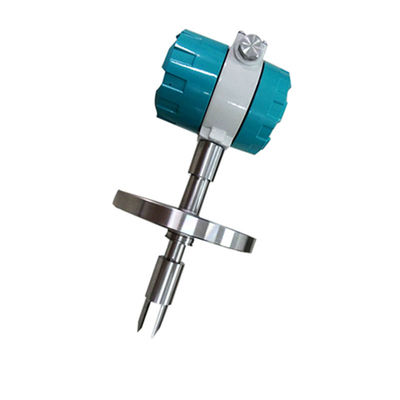

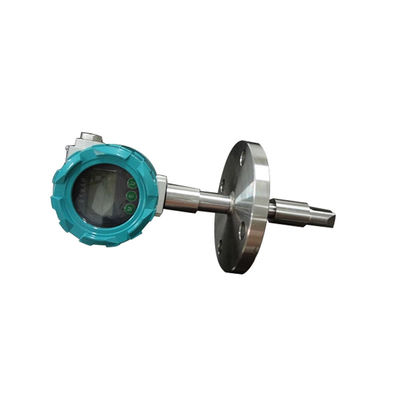

tuning fork density meter
Tuning fork type densimeter is our company introduced the advanced production technology to develop new products on the basis of the principle of vibration.Product design using plug-in installation, widely used in pipe, open tank containers and tanks closed container medium density test, the product in the mud, and pulp, evaporator, solvent separation, oil measurement and other fields have a wide range of applications.
digital tuning fork density meter
1, plug-in design, plug and play
2, continuous online measurement, no moving parts, maintenance free
4, to the specific condition of anti-corrosion design
5, temperature compensation
6, explosion-proof certification (Exd II CT4)
7, do long pole type design (the longest can do 2 m)
8, there is a small amount of solid or bubble
9, the vibration is not sensitive
10, type rod type is suitable for the high pressure pipe (20 mpa) the highest pressure
Measuring range 0-2 g/cm3 (0-2000 kg/m3)
Accuracy of measurement + / - 0.001 g/cc (+ / - 1 kg/m3)
Operating temperature range - 50 ℃ ~ + 200 ℃
The maximum working pressure 20 mpa
Fluid viscosity range CP 0-20000.
The temperature coefficient of 0.1 kg/m3 / ℃ (adjusted)
Pressure effect negligible
A built-in temperature sensor PT100
Answer the liquid material 400 stainless steel, the C22 hartz
alloy,manganese alloy, titanium alloy, etc
The fork body coating Standard, PTFE or electrolytic polishing
Power supply 28 VDC, 20-35-45 mA
Analog signal output 4-20 mA, isolation type, not the type of power supply
The output precision (20 ℃) Reading of 0.1% plus or minus or plus or
minus0.05% FS
Output repeatability (40 ~ + 85 ℃) Plus or minus 0.05% FS
Process connection 1.5 "NPT threaded connection;
DIN 50 PN40 and PN100 flange connection;
Protection grade IP65
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
