| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FDM-1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1050 ~ $2150 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measurement Range: | 0 ~ 3 G / Cm3 Optional | Output: | 4-20 MA Signal (4-wire System) |
|---|---|---|---|
| Accuracy: | 0.3% (real-time Range) Or 0.001 G / Cm3 Whichever Is Greater. | Resolution: | 0.0001 G / Cm3 |
| Application Range: | -30-120 Degree | Maximum Working Pressure: | 20MPa |
| Protection Level: | IP65 | Fork Body Material: | Stainless Steel 316, Hastelloy C22, Manganese Alloy 400 |
Description
Tuning fork density meter is a high-precision, high-applicability vibration principle density meter produced by introducing the most advanced frequency tracking technology from abroad. The product design uses plug-in installation, which is widely applicable to pipelines, open tank containers and closed tank containers. Medium density detection.
The tuning fork density meter sensor is composed of two piezoelectric crystals. One piezoelectric crystal generates vibration and the other piezoelectric crystal detects vibration. The tuning fork sensor has a built-in temperature sensor to compensate the temperature of the piezoelectric crystal.
The split line of split tuning fork density meter is up to 2 meters in length. In order to reduce the interference of the tuning fork sensor line, a single wire jacket is used to protect the sleeve. The sensor line must be protected from interference and damage at the scene. The anti-interference ability of the split tuning fork It is relatively weak, and it is not recommended to use it in the place with electromagnetic interference.

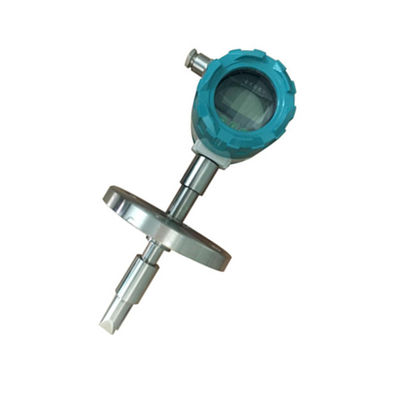

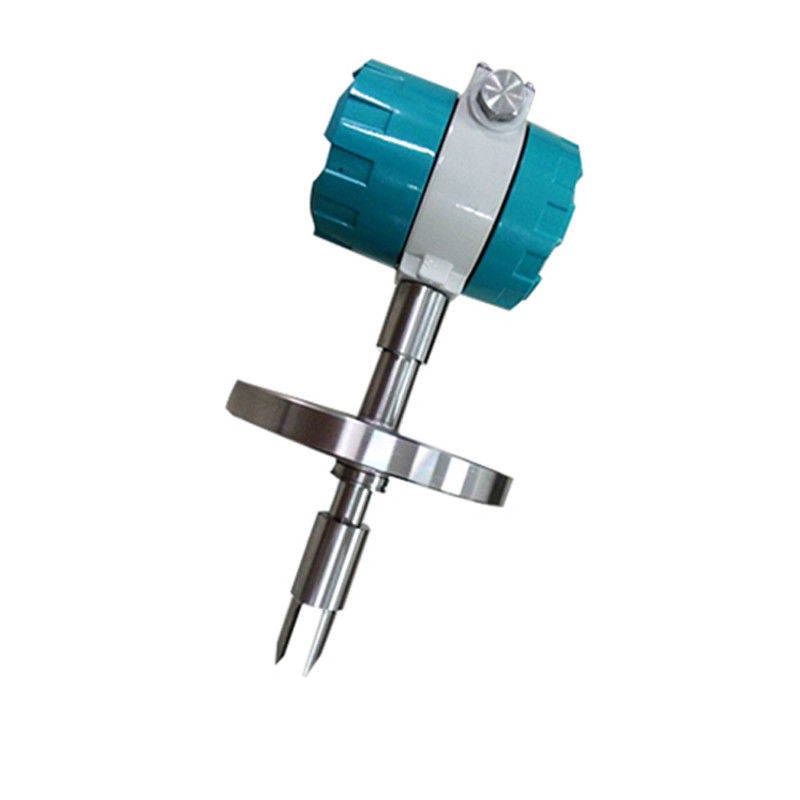

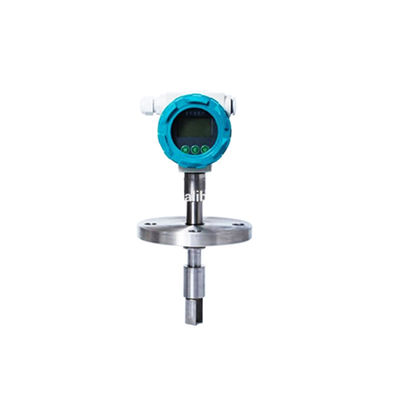

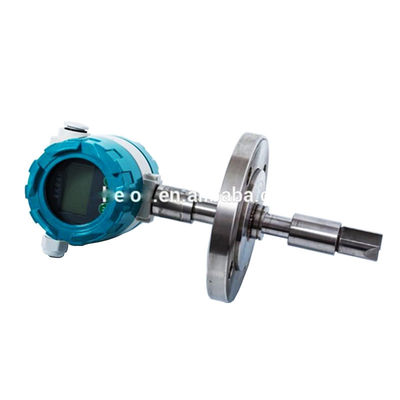

Detailed Images
Specification
| Measuring range: | 0 ~ 3 g / cm³ optional |
| Output: | 4-20 mA signal (4-wire system) |
| Accuracy: | 0.3% (real-time range) or 0.001 g / cm³ whichever is greater. |
| Resolution: | 0.0001 g / cm³ |
| Installation: | DN50 DN80 DN100 and threaded installation (threaded installation with mounting base) |
| Application range: | -30 ~ 120 degrees |
| Maximum working pressure: | 20MPa |
| Protection level: | IP65 |
| Fork body material: | stainless steel 316, Hastelloy C22, manganese alloy 400 |
| Fork body coating: | coating (perfect hydrophobic and non-stick impurities in liquid) |
Dimension
Installation
General installation principles:
1.The space around the bottom of the tuning fork is not less than 30 mm.The space around the tuning fork is not less than 12 mm.
2.The tuning fork body is not affected by strong currents.
3.The medium flows through the middle of the fork
4. For a more visual and systematic explanation of the installation methods, several common installation methods are specially arranged. When installing, refer to the following installation methods:
Classic installation method 1: in-line installation (low flow rate)
Classic installation method 2: oblique insertion installation (high flow rate)
Classic installation method 3: fixed installation kit installation (custom installation kit)
