| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FDM-1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1150.00 ~ $2175.00 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

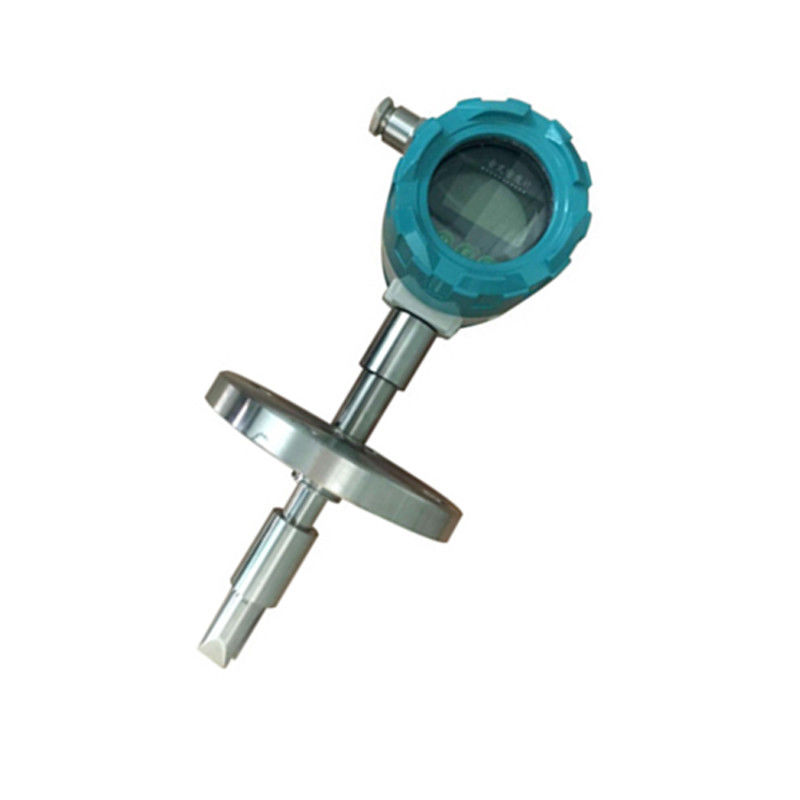

| Product Name: | Good Price 4-20mA Milk Density Meter Sensor For Power Plant | Accuracy: | 0.001 G / Cc, With A Resolution Of 0.0001 G / Cc |
|---|---|---|---|
| Power Supply: | 24VDC | Output: | 4-20 MA 4-wire ( 2-wire System Can Not Be Used) |
| Density Range: | 0-3 G / CM3 (3 /2.5/ 2 /1.5/ 1) |
Fork sensors ---------- one pair fork ceramic chip
A piezoelectric ceramic is responsible for collecting vibration
The fork is always vibrate in the resonant frequency of vibration
Fork in different densities ,the resonance frequencies was different,.according to the relationship between the different vibration and density to calculate the density
The resonance frequency of the tuning fork is between 1600-2400
The higher the frequency the smaller density.
Features of 4-wire liquid oil density meter :
1. Adopt Germany piezoelectric ceramic chip, with gold plated process to increase the oxidation resistance of ceramic chips, also can longer service life of density meter.
2. Fork vibration original chip adopt Japanese made high performance original chips, Built-in 24 AD converter, frequency identifying accuracy to be 0.01HZ, to warranty 3.the sensitivity and precision of the meter.3.Fork density calibration adopts national density standard solution, to ensure the source and accurate of density.
4.The current circuit is independent of fork vibration circuit, there is isolating anti-interference inner, reducing the influence to instrument from disturb.
5. There is set density three point quick calibration, range adjust, current calibration etc function, to meet on-site working demands.
Applications of 4-wire liquid oil density meter:
1.Application for high precision density measuring, mainly used in power plant.
2.Can not be affected by temperature, pressure and flow rate, there are few factor that can affecting measuring accuracy.
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
