| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FDM-1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1150.00 ~ $2175.00 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Density Meter For Mud Pulp, Milk, Evaporator, Solvent Separation, Oil | Application: | Mud Pulp, Milk, Evaporator, Solvent Separation, Oil Measurement |
|---|---|---|---|
| Length: | Max2m | Explosion Protection: | Exd II CT4 |
| Ambient Vibration Sensitive: | No |
Description of electronic densimeter for desulfurization industry china supplier

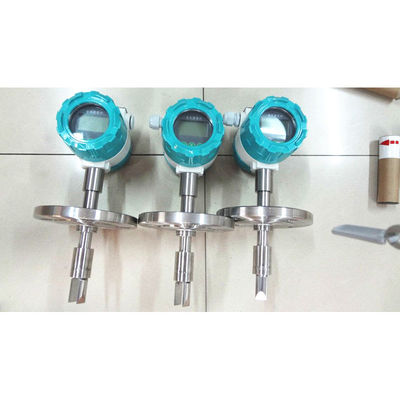

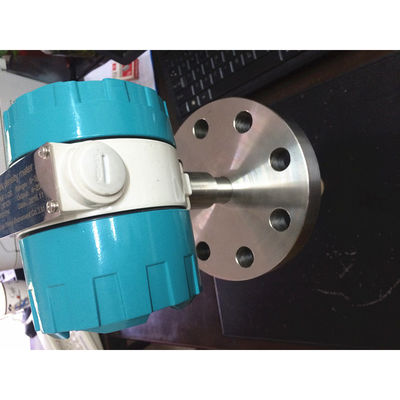

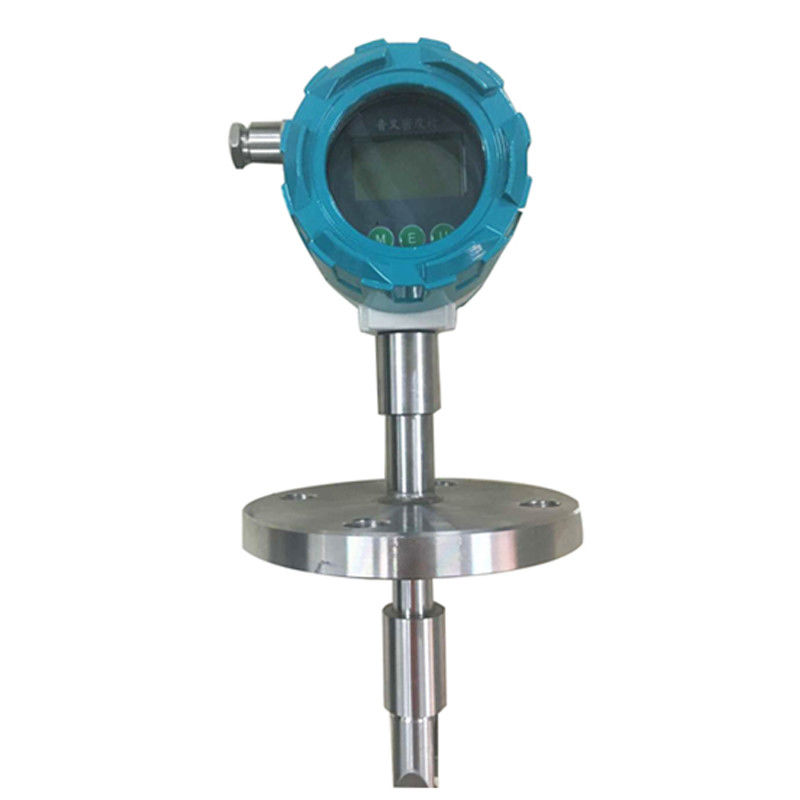

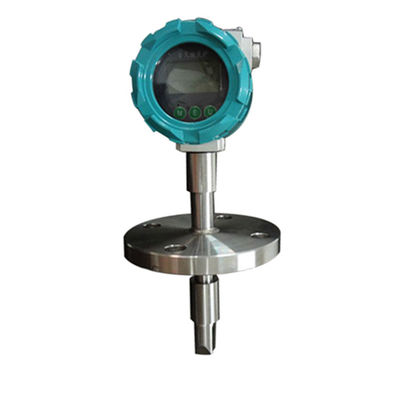

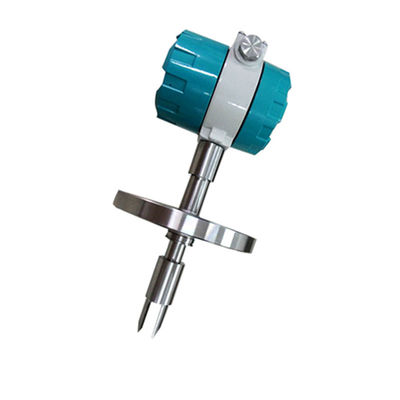

FDM-1 tuning fork-type density meter is my company to introduce the United States advanced production technology based on the principle of vibration of the development of new products. The product is designed for plug-in installation and is widely used for medium density testing in piping, open tank containers and enclosed tank containers. The product is available in mud, pulp, evaporator, solvent separation, oil measurement and other fields. Extensive application.
The fluid density depends directly on the frequency of vibration received in the sensor insertion medium. The sensor built-in temperature sensor provides temperature compensation for it.
Anti-corrosion design for specific situation
1. Insert design, plug and play
Parameter density meter for Mud pulp, milk, Evaporator, Solvent separation, Oil measurement
| Item | |
|
|
0-3g/cm3(0-3000kg/m3) |
|
|
±0.001g/cc (±1kg/m3) |
|
|
-50℃~+200℃ |
| Max working pressure | 20MPa |
| Fluid viscosity range | 0~20000cp |
| Temperature coefficient | 0.1kg/m3/℃(after calibration) |
| pressure effect | negligible |
| Built-in temperature sensor | PT100 |
| Wetted material | Stainless steel, HHS alloy C22, mn alloy 400, titanium alloy, etc |
| fork body coating | Standard type, PTFE or electrolytic polishing |
| Power supply | 20~28DVC, 35~45mA |
| Analog signal output | 4-20mA, Isolation type, non-self-powered type |
| Output accuracy(20℃) | ±0.1%, ±0.05% FS |
| Output repeatability(-40~+85℃) | ±0.05% FS |
| The process is continuous |
1.5’’ NPT DIN 50 PN40 & PN100 |
| Degree of protection | IP65 |
Package:
About us-Shelok:
Q: I would like to know if you have a partner for export?
A: Yes,We have the right to export and can sell product all over the world.
Q: Can I get some samples?
A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: Do you have the products in stock?
A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q: Can I mix different power in one container?
A: Yes,Different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: What's your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Western Can Union Cash.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Package Contents:
1 * electronic densimeter for desulfurization industry china supplier
1 * Carry case
1 * Calibration screwdriver
1 * User manual
