| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SB |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $5~$45.90/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Sensitivity Pt100 Controller Probe Temperature Transmitter | Protection: | IP65 |
|---|---|---|---|
| Accuracy: | 0.5% | Power Supply: | 9-36VDC |
| Output: | RS485/4-20mA/0-5VDC/0-10VDC/1-5VDC | Ambient Temperature: | -40 ~ 85 ℃ |
| Threaded Connection: | M20*1.5 | Oem: | Yes |

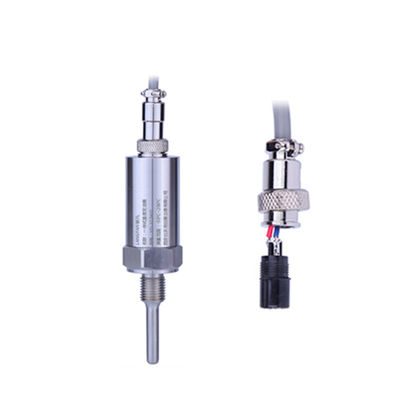

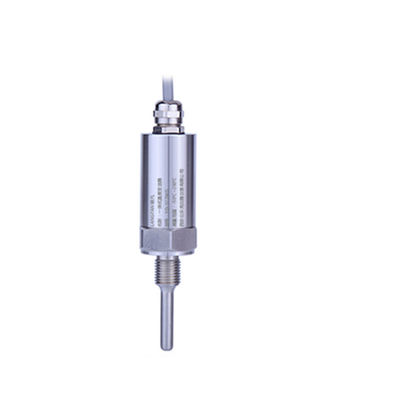

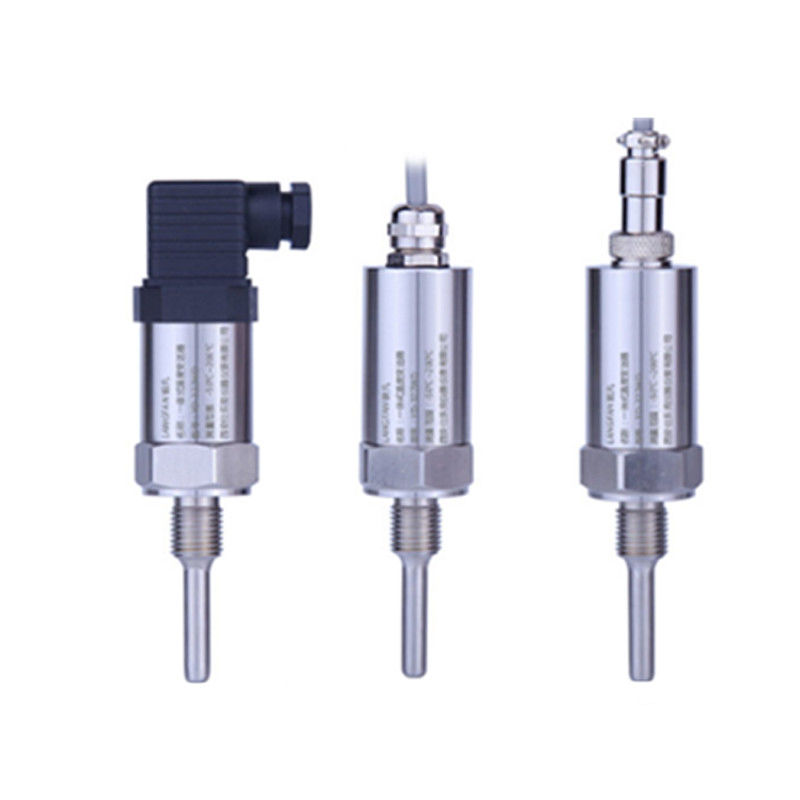

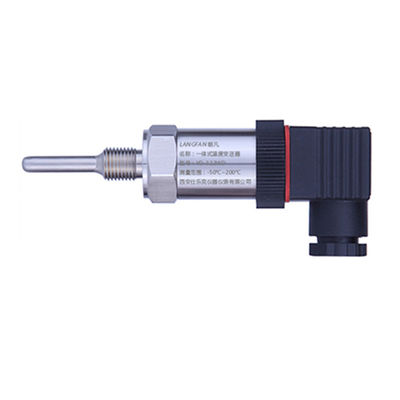

Description of High sensitivity Pt100 Controller Probe Temperature Transmitter:
Pt100 temperature transmitter is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.
Specification of High sensitivity Pt100 Controller Probe Temperature Transmitter:
Measuring media: liquid, gas
Measuring range: -50-300 ℃
Power supply range: 9 ~ 36VDC
Output signal: 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485
Probe material: stainless steel 304
Accuracy class: ± 0.5 ℃
Ambient temperature: -40 ~ 85 ℃
Stability: ± 0.1% FS / Year
Protection: IP65
Pressure Level: 10MPa (above can be customized)
Maximum power: current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage
Load characteristics: current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω
Voltage type load ≥100kΩ
Fearures of High sensitivity Pt100 Controller Probe Temperature Transmitter
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Applicationof Probe Temperature Transmitter
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
Drawing:
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
