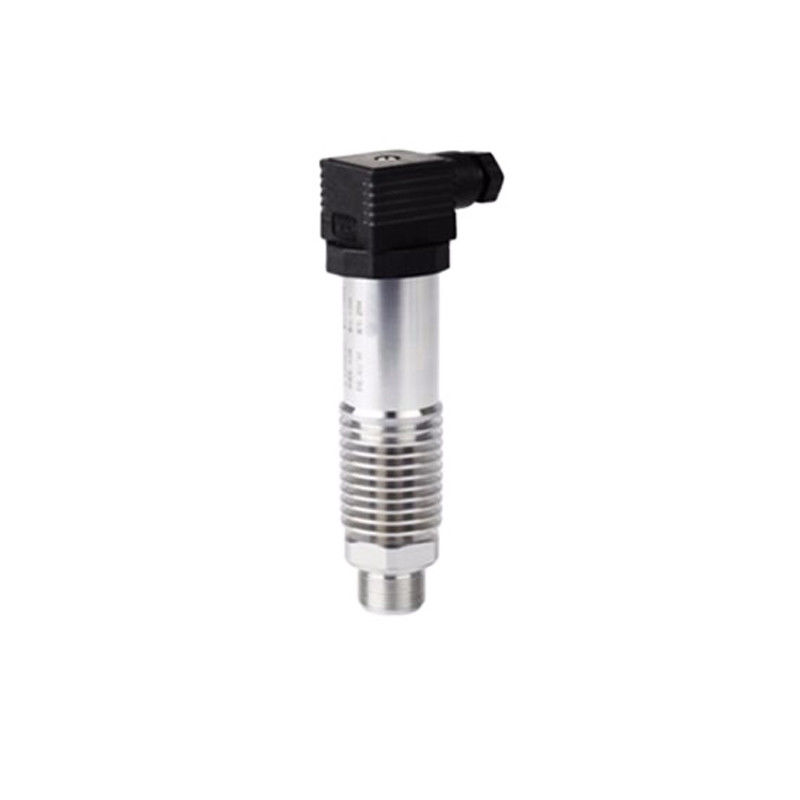

Name: high temperature digital water pressure transmitter sensor
Brand: Zhejiang Nancon Industrial Technology Co., Ltd.
SKU: WST
Price: 80.00 USD
Availability: InStock

Home Products Temperature and Humidity Logger

high temperature digital water pressure transmitter sensor

Product Details:

Place of Origin:	Made In China
Brand Name:	SHELOK
Certification:	CE
Model Number:	WST

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$35~$125/pc
Packaging Details:	Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized
Delivery Time:	3 ~ 7 Working Days After Payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Item:	High Temperature Digital Water Pressure Transmitter Sensor	Pressure Range:	-100kPa~0...0~10kPa...100MPa
Output:	4~20mA,0~10mA,1~5VDC,0~10VDC,0~5VDC	Accuracy:	±0.5%FS
Power Supply:	12~36VDC	Repeatability:	±0.1%
Diaphragm Material:	316L Stainless Steel	Medium Temperature:	-60 - 200℃
Overload Pressure:	1.5%FSO	Warranty:	12 Months

Product Description

high temperature digital water pressure sensor transmitter description

pressure transmitter is the introduction of foreign technology and products produced using imported components, can be used to process fluid (liquid, gas) measured continuously changes. Will be converted into a 4-20mA standard current measured pressure signal output, and combined with other monitoring and control units, constitute automatic control system. Widely used in petroleum, chemical, metallurgy, electricity, medicine, beer, water treatment and other industries process monitoring and control.

Specification

high temperature digital water pressure sensor transmitter Specs

Range: Gauge pressure: 0~0.1bar to 0~100bar

Overload: 1.5 times of full range

Accuracy: 0.25%FS,0.5%FS

Working power: 24VDC

Output: 4~20mA,0~10mA,1~5VDC,0~10VDC,0~5VDC

Compensation temperature: 0~50°C,-10~80°C

Medium temperature: -60~200°C

Working temperature: -30~85°C

Storage temperature: -40~125°C

Temperature influence: 0.02%FS/°C

Electric Connection: DIN (can be customized)

Protection grade: IP65,IP67

Connection: M20*1.5 male (can be customized)

Anti vibration: 20g,20-5000HZ

Impact resistance: 100g,11ms

Case material: SUS304

high temperature digital water pressure sensor transmitter features

●All welding structure at sensor and pressure connection, enclosure class :IP65

● Wetted material: stainless steel ,good corrosion-proof

● Fit for high & low & normal temperature media,long stability.

● Strike-proof ,vibration-proof,corrosion-proof

● Large temperature range available

● More range available,easy to test

● Protection of reverse polarity and current limit

high temperature digital water pressure sensor transmitter application

● High & low temperature pressure measurement

● Liquid pressure and control system

● Pressure test in Experiment chamber

● Food and medicine and pharmacy

● Petrolchemical and metallurgical field.

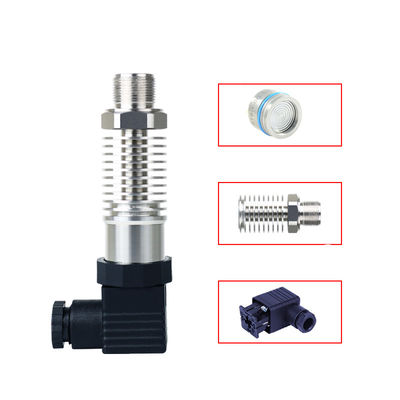

Detailed Images
