| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | WST |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $35~$125/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | -100KPa....2.0Mp;0~60MPa | Accuracy: | 0.1% FS, 0.2% FS, 0.5% FS |
|---|---|---|---|
| Power Supply: | 24DCV (9 ~ 36DCV) | Output Signal: | 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire) |
| Interface: | M20*1.5 | Material: | 316L |
| OperatingTemperature Range: | -60℃~200℃ | Item Name: | Liquid High Temperature Industrial Pressure Sensors |
Liquid High Temperature Industrial Pressure Sensor
Description
pressure transmitter use Sputtered film technogy to test liquid and air pressure .
The pressure transmitter is fully welded with intrinsic safety and explosive-proof futures, so can by applied in harsh industrial environments and high temperature environments like 0 °c - 150 °c~200°c

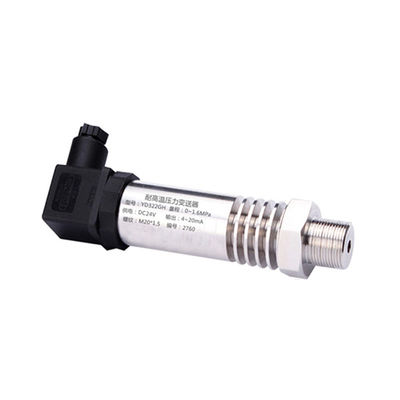

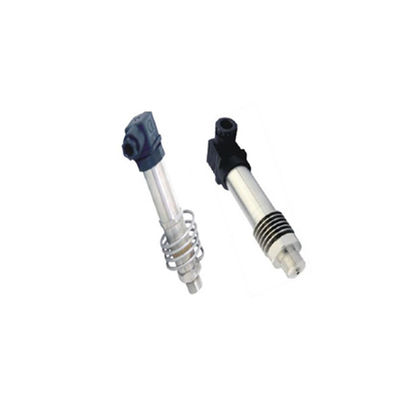

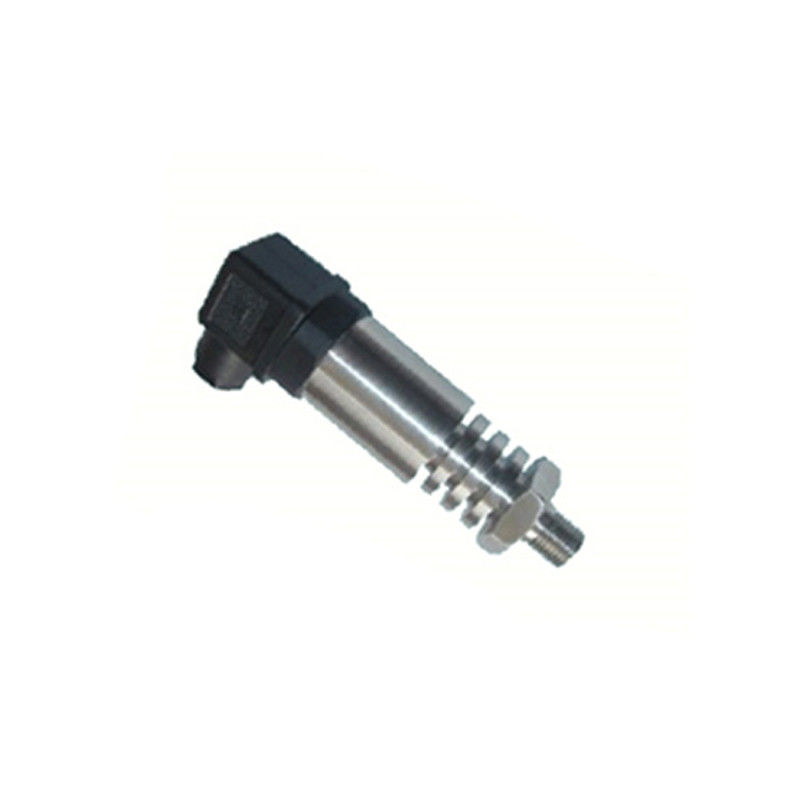

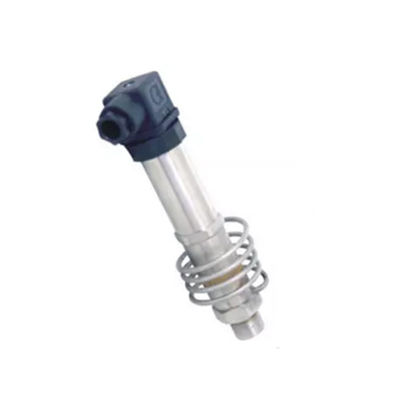

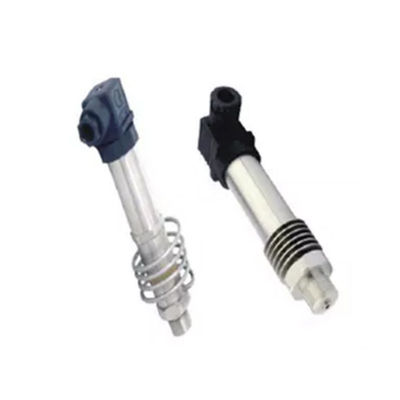

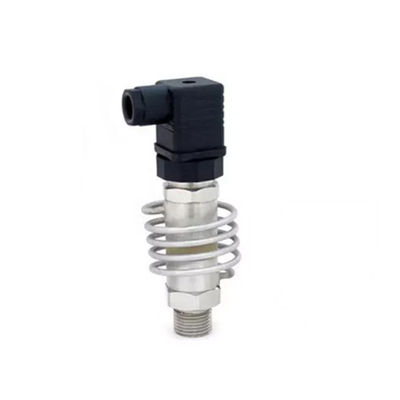

Detailed Images
Specification
| Liquid High Temperature Industrial Pressure Sensors | |
| Pressure Range | 0~0.1bar to 0~100bar |
| Overload | 1.5 times of full range |
| Accuracy | 0.25%FS,0.5%FS |
| Power Supply | 24V DC |
| Output | 4~20mA,0~10mA,1~5VDC,0~10VDC,0~5VDC |
| Compensation temperature | 0~50°C,-10~80°C |
| Medium temperature | -60~200°C |
| Working temperature | -30~85°C |
| Storage temperature | -40~125°C |
| Temperature influence | 0.02%FS/°C |
| Electric Connection | DIN (can be customized) |
| Protection grade | IP65,IP67 |
| Connection | M20*1.5 male (can be customized) |
| Anti vibration | 20g,20-5000HZ |
| Impact resistance | 100g,11ms |
| Case material | SUS304 |
Applications
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
