| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PT100-UB1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $35~$125/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | +/-0.2% | Input Signal: | PT100/PT1000 |
|---|---|---|---|
| Output Signal: | 4-20ma 0-5v 0-10v | Ambient Temperature: | -20-70 |
| Response Time: | <1s | Temperature Range: | -100-500℃ |
| Storage Temperature: | -40~+100℃ | Protection: | IP66 |
| Warranty: | 12 Months |

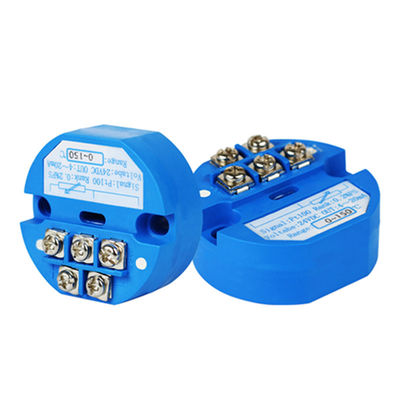

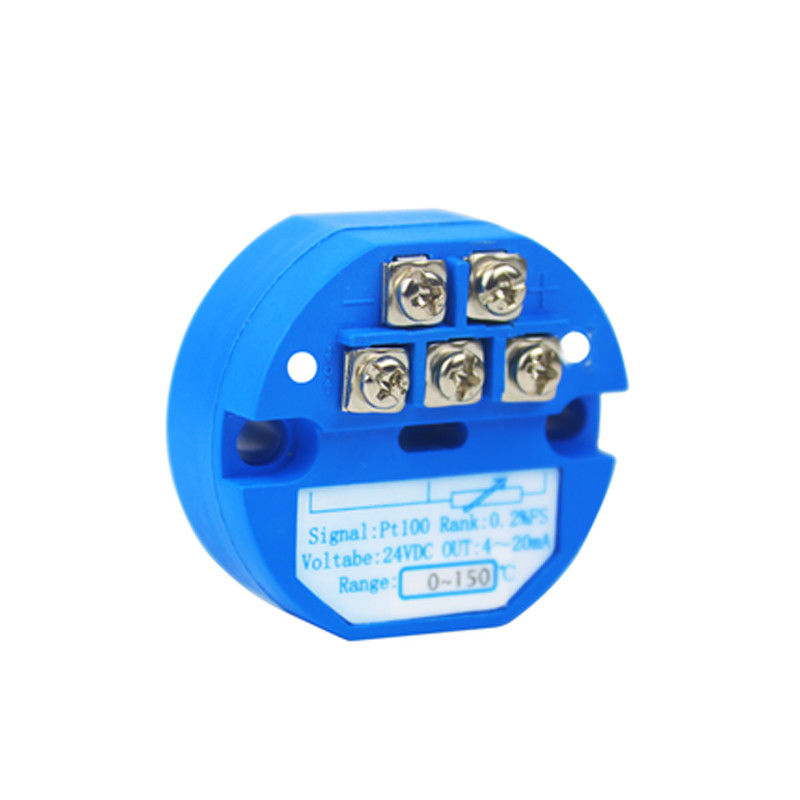

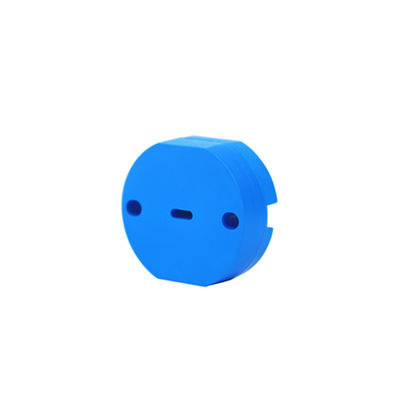

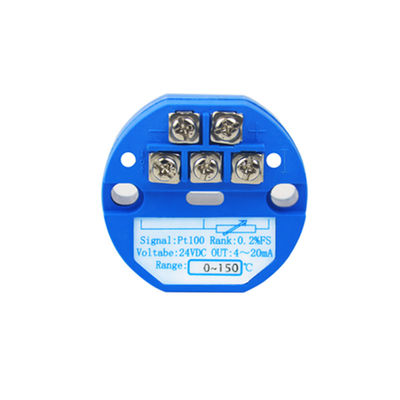

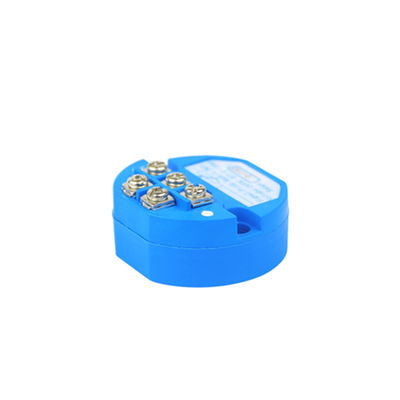

The temperature transmitter USES the inlet thermal resistance as the temperature measuring element, and its performance is stable.Two wire system output 4-20ma, strong anti-interference ability, saving compensation wire and installation of temperature transmitter costs.High precision, good stability, flexible installation and easy to use, small size and light weight, long anti-vibration life.
It can be widely used in process control, aviation, aerospace automobile, medical equipment, HVAC and other industries. The original wellhead thermal resistance or thermocouple is used as the temperature measuring part, with stable performance and high accuracy.
Thermal resistance measurement range: PT100:-200~650℃;CU50:-50~150℃
Thermocouple measurement range: K type:300~1200℃; E type:200~800℃;S type:600~1600℃
Output siginal: 4-20mA,0-10mA,0-10V,0-5V
Measurement accuracy: Thermocouple measurement:0.2~0.3% Thermocouple:1~2%
Temperature drift: 0.025%/℃
Power supply: +12VDC or +24VDC±10% Work environment: 0~70℃ Storage Conditions: -40~+85℃
| Accuracy | +/-0.2% |
| input signal | PT100/PT1000 |
| output signal | 4-20ma 0-5v 0-10v |
| ambient temperature | -20-70 |
| response time | <1s |
| temperature range | -100-500℃ |
| Storage temperature | -40~+100℃ |
| Protection | IP66 |
| Warranty | 12 months |
| Product Keywords | transmitter temperature,temperature sensor module,temperature module |
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
