| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | HT-39 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $175~$235/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | China High Temperature Melt Pressure Transmitter Price | Pressure Range: | 0....10Mpa To 0....150MPa (0...1500psi To 0...20000psi) |
|---|---|---|---|
| Output: | 3.33mV/V; 2mV/V | Accuracy: | ±0.5%FS |
| Excitation: | 10VDC | Repeatability: | ±0.2% |
| Diaphragm Material: | 15-5PH | Bridge Resistance: | 350 Ohms±10% |
| Overload Pressure: | 1.5%FSO | Warranty: | 12 Months |

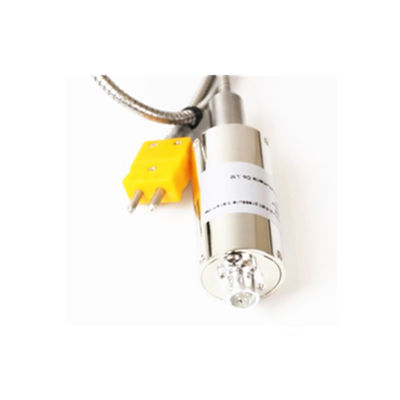

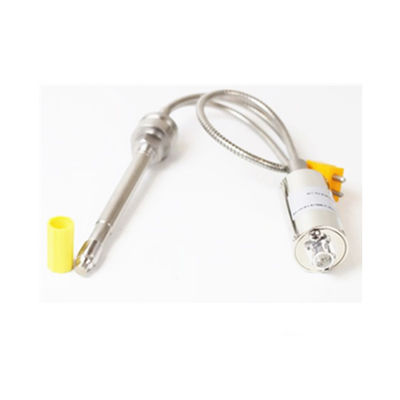

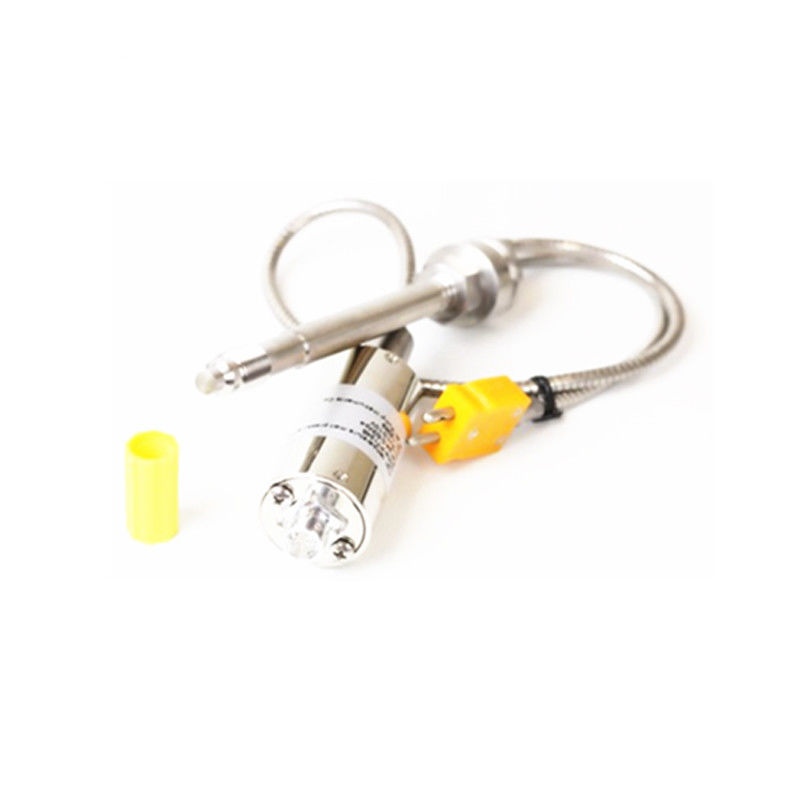

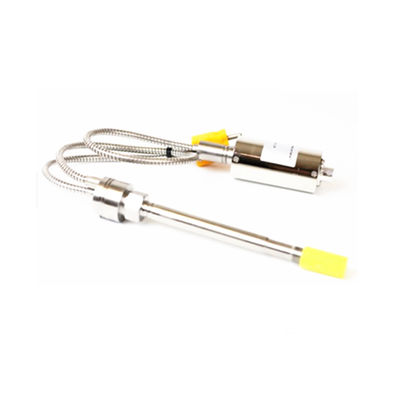

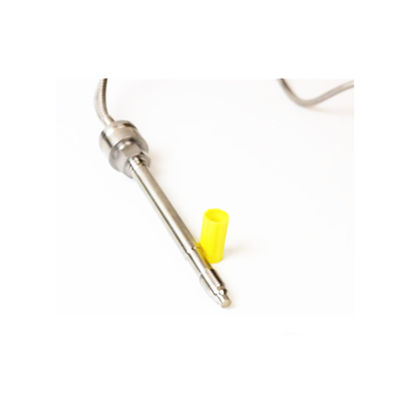

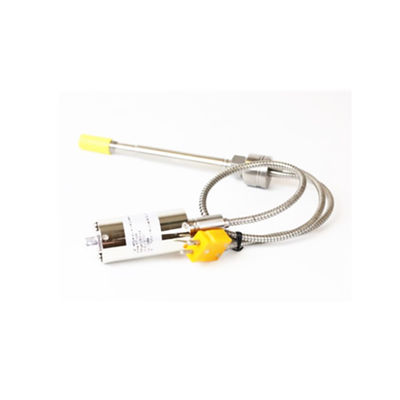

HT39 Series Melt Pressure Transducer can achieve the pressure and temperature measuring. This series adopt special material and alloy elastic membrane to low down temperature draft and improve accuracy. The zero & full span can be calibrated, with amplify signal be connected with PLC, and internal 80% calibration. It has the wide application in high-temp liquid pressure measurement and control such as Chemical & Fiber equipment, polyester equipment, etc.
Range: 0….10Mpa to 0….150MPa (0…1500psi to 0…20000psi)
Output: 3.33mV/V; 2mV/V
Accuracy: ±0.5%FS
Excitation: 10VDC
Repeatability: ±0.2%
Diaphragm material: 15-5PH
Bridge resistance: 350 ohms±10%
design)
Overload pressure: 1.5×FSO
Internal calibration: 80%FSO±1%
Insulation Resistance: 1000Megohms @50Vdc
Max. Diaphragm Temp: 350℃
Electric connector: 5PIN, 6PIN, 8PIN
Process connector: 1/2″-20UNF, M14×1.5, M18×1.5(Customer
High accuracy
Stainless steel welding
Easy to install
Internal 80% calibration
Excellent stability and repeatability
Y039: 0~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
Y060: 0~25MPa
Stability :0.05%
Type :Hydraulic pressure
Y061: -0.08~0MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~2.0MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~2.5MPa
Stability :0.05%
Type :Pneumatic pressure
Range: (-0.1~060)MPa
Type :Hydraulic pressure
Range: 0-6/0-60MPa
Type :Hydraulic pressure
Range: 0-160MPa
Type :Hydraulic pressure
