| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | 35T |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $65~$128/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Pressure Transmitter / Digital Temperature Gauge | Protection: | IP65 |
|---|---|---|---|
| Accuracy: | 0.5% | Power Supply: | 9-36VDC |
| Output: | RS485/4-20mA/0-5VDC/0-10VDC/1-5VDC | Ambient Temperature: | -40 ~ 85 ℃ |
| Threaded Connection: | M20*1.5 | Oem: | Yes |
| Warranty: | 12 Months |
Digital Pressure Transmitter / Digital Temperature Gauge
Description
temperature transmitter is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.

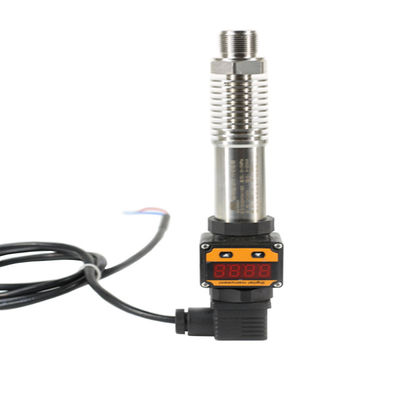

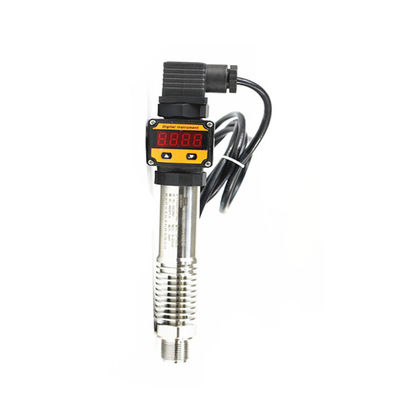

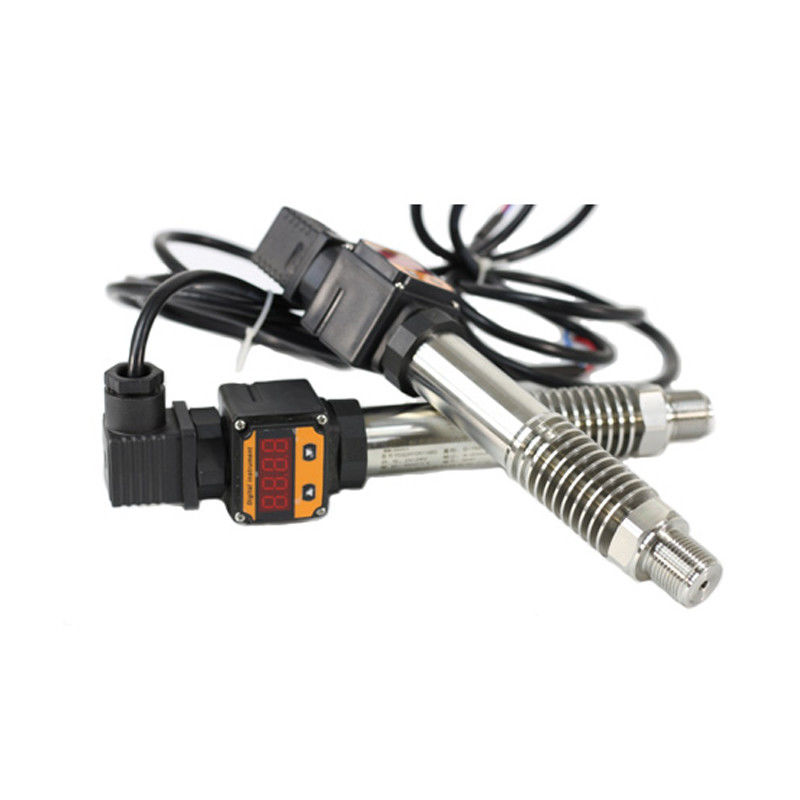

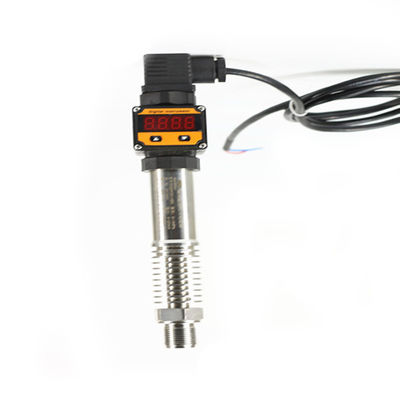

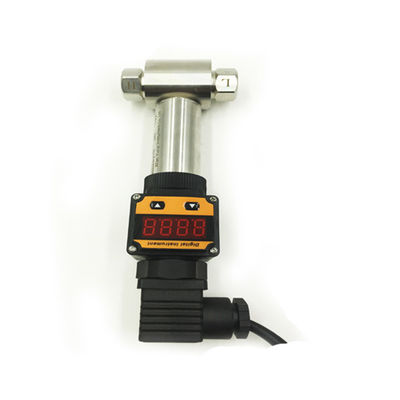

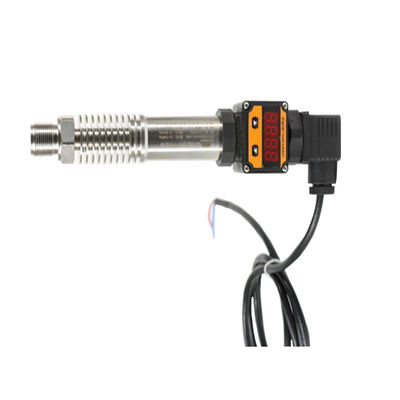

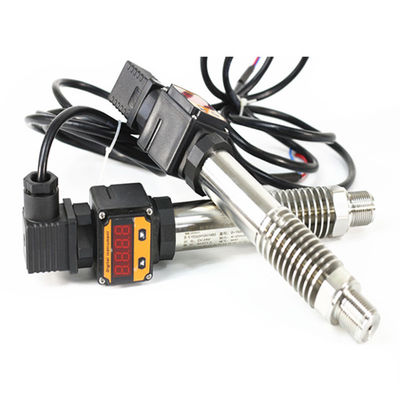

Detailed Images
Specification
| Digital Pressure Transmitter / Digital Temperature Gauge | |
| Measuring media | liquid, gas |
| Measuring range | -50-300 ℃ |
| Power supply range | 9 ~ 36V DC |
| Output signal | 4 ~ 20mA, 0-5V DC, 0-10V DC, RS485 |
| Probe material | stainless steel 304 |
| Accuracy class | ± 0.5 ℃ |
| Ambient temperature | -40 ~ 85 ℃ |
| Stability | ± 0.1% FS / Year |
| Protection | IP65 |
| Pressure Level | 10MPa (above can be customized) |
| Maximum power | current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage |
| Load characteristics | current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω Voltage type load ≥100kΩ |
Features
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
