| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 2088T |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $65~$300/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Pressure Range: | 0-0.2kPa~100kPa, 0-0.2kPa~100MPa. | Accuracy: | 0.1%FS, 0.2%FS, 0.5%FS |
|---|---|---|---|
| Power Supply: | 24V DC; 220VAC, 50Hz | Output Signal: | 4~20mA 0~10/20mA 0/1~5VDC ,RS485 |
| Interface: | M20*1.5, G1/2, Customized | Material: | Shell: Aluminium Alloy Wetted Part: Stainless Steel 304 Or 316L |
| OperatingTemperatureRange: | Probe: 150℃, 250℃, 350℃,Circuit Board: -30~70℃ | Compensation Temperature: | 0~150℃, 250℃, 350℃ |
| Display: | 4 Digit LCD (optional) | Item Name: | High Temperature Pressure Transmitter For High Temperature Steam |
High Temperature Pressure transmitter adopt advanced imported sensor component and anti-high temperature sensitive element.
The pressure transmitter's probe can work stably for a long time under high temperature 350℃ operation environment.
Laser welding technology is used between sensor and stainless steel house, which melts the two parts into one, and ensures pressure transmitter's safety usage at high temperature state.
Between pressure core parts of pressure transmitter and circuit board, there is a PTFE() gasket for heat insulation.
Features of High Temperature Pressure transmitter:
√Various signal outputs
√ HART protocol is available
√ With Heatsink construct
√ High precision 0.1%FS, 0.2%FS, 0.5%FS
√ Compact dimension design, strong construct
√ Operating temperature: 150℃, 250℃, 350℃
√ Light weight, easy to install, maintenance-free
√ 100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
Application of High Temperature Pressure transmitter:
High Temperature Pressure transmitter measuring element as a signal, measured media pressure after the heat is transmitted to the sensor structure, high-precision signal processing circuit at the rear. Products undergo rigorous testing components, semi-finished and finished products and aging screening, stable and reliable performance. Apply to industrial sites, food and medical equipment, power generation, machinery manufacturing, automobile manufacturing and shipbuilding, petrochemical, metallurgy manufacturing, steam and heat exchange area.

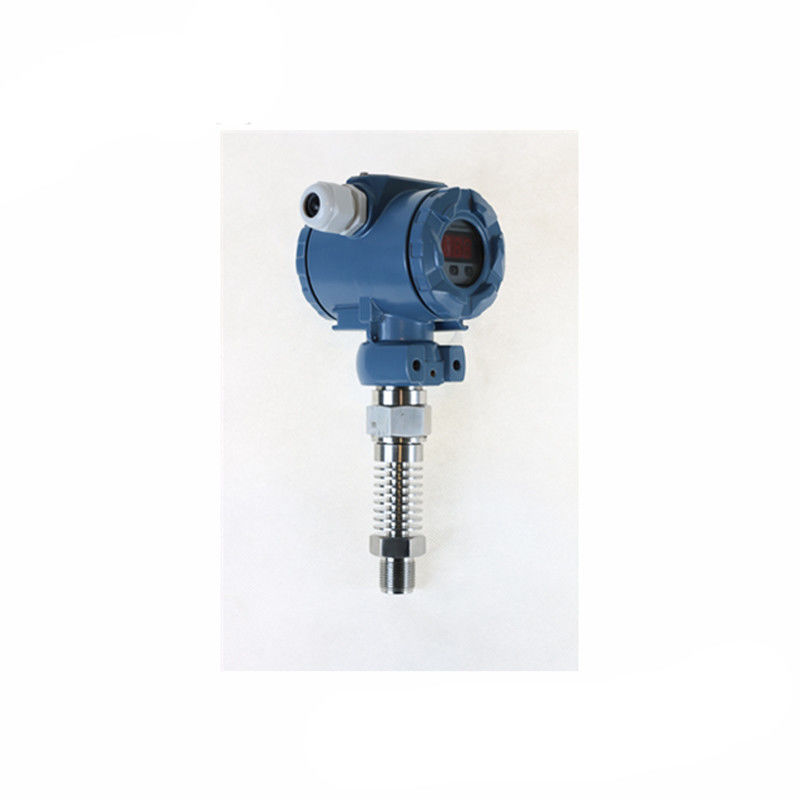

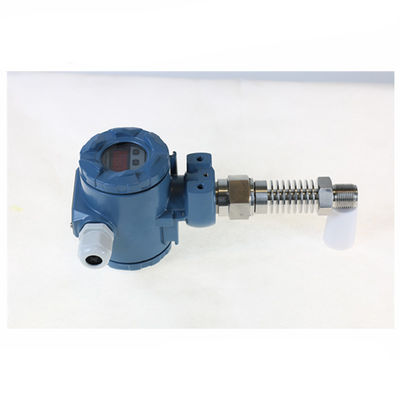

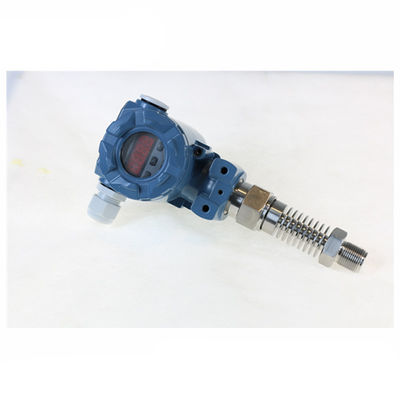

Pressure transmitter show :
Q: I would like to know if you have a partner for export?
A: Yes,We have the right to export and can sell product all over the world.
Q: Can I get some samples?
A: Yes,Sample order is available for quality check and market test.But you have to pay the express cost.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: Do you have the products in stock?
A: Depends on your request.We have standard models in stock.Some special products and big order will be newly produced according to your order.
Q: Can I mix different power in one container?
A: Yes,Different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: What's your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Western Can Union Cash.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
