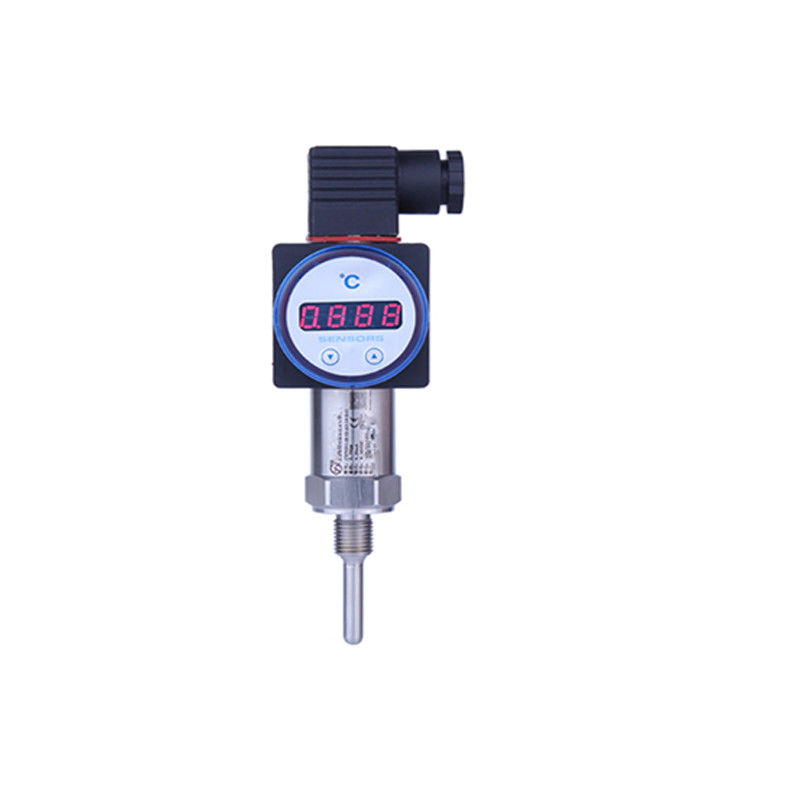

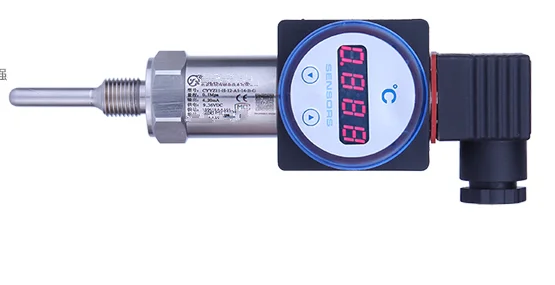

Digital temperature gauge for liquid/gas

Fearures of Digital temperature gauge for liquid/gas:
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection

Measuring media: liquid, gas
Measuring range: -200-500 ℃(0~100℃,0~200℃...-50~100℃)
Power supply range: 9 ~ 36VDC,15~36VDC(option)
Output signal: 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485(option)
Probe material: stainless steel 304
Accuracy class: ± 0.5 ℃
Ambient temperature: -40 ~ 85 ℃
Stability: ± 0.1% FS / Year
Protection: IP65
Pressure Level: 10MPa (above can be customized)
Maximum power: current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage
Load characteristics: current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω
Voltage type load ≥100kΩ
