OEM 4-20ma PT100 liquid, gas temperature transmitter

OEM 4-20ma PT100 liquid, gas temperature transmitter

    • OEM 4-20ma PT100 liquid, gas temperature transmitter
    • OEM 4-20ma PT100 liquid, gas temperature transmitter
    • OEM 4-20ma PT100 liquid, gas temperature transmitter
    • OEM 4-20ma PT100 liquid, gas temperature transmitter
    • OEM 4-20ma PT100 liquid, gas temperature transmitter
  • OEM 4-20ma PT100 liquid, gas temperature transmitter

    Product Details:

    Place of Origin: Made In China
    Brand Name: SHELOK
    Certification: CE
    Model Number: 381

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: $105~$235/pc
    Packaging Details: Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized
    Delivery Time: 3 ~ 7 Working Days After Payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Industrial: Industrial Pressure Type: Gauge (G), Absolute (A), Sealed Gauge (S)
    Theory: Temperature Sensor Accuracy: ±0.2
    Temperature Range: -50-300 ℃(option) Output: 4~20mA
    Connection: M20*15 M27*2 And So On Product Name: OEM 4-20ma PT100 Liquid, Gas Temperature Transmitter

    OEM 4-20ma PT100 liquid, gas temperature transmitter



    OEM 4-20ma PT100 liquid, gas temperature transmitter

    Product Description OEM 4-20ma PT100 liquid, gas temperature transmitter



    Pt100 temperature transmitter is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.



    Product Features OEM 4-20ma PT100 liquid, gas temperature transmitter

    Wide voltage power supply, non-linear correction, high accuracy
    Small size, light weight, easy to install
    Lightning, cutoff frequency interference design, anti-interference ability
    Wiring reverse and overvoltage protection, current limiting protection

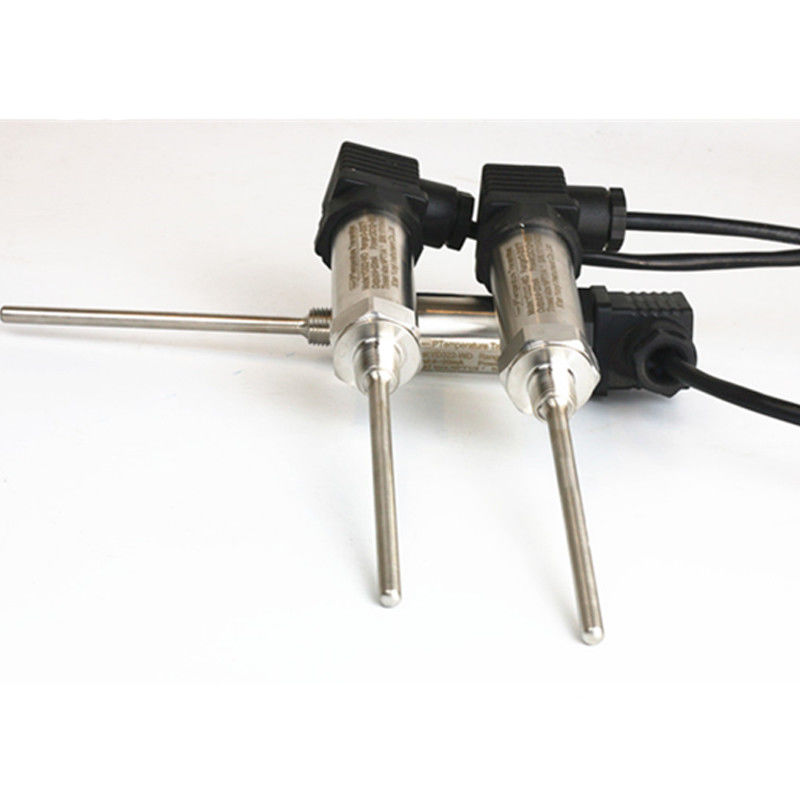

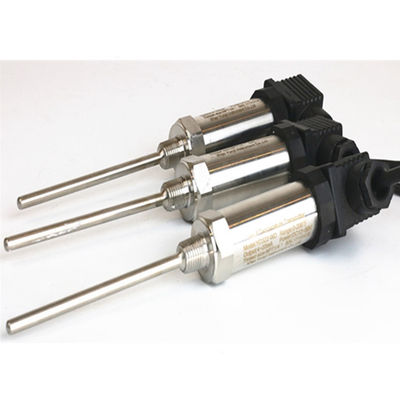

    Product show OEM 4-20ma PT100 liquid, gas temperature transmitter




    Parameters OEM 4-20ma PT100 liquid, gas temperature transmitter

    Measuring media: liquid, gas

    Measuring range:-50-300 ℃ (0~100℃,0~200℃...-50~100℃)
    Power supply range: 9 ~ 36VDC,15~36VDC(option)
    Output signal: 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485(option)
    Probe material: stainless steel 304
    Accuracy class: ± 0.5 ℃
    Ambient temperature: -40 ~ 85 ℃
    Stability: ± 0.1% FS / Year
    Protection: IP65
    Pressure Level: 10MPa (above can be customized)
    Maximum power: current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage
    Load characteristics: current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω
    Voltage type load ≥100kΩ

    OEM 4-20ma PT100 liquid, gas temperature transmitter

    OEM 4-20ma PT100 liquid, gas temperature transmitter

    OEM 4-20ma PT100 liquid, gas temperature transmitterOEM 4-20ma PT100 liquid, gas temperature transmitter

    OEM 4-20ma PT100 liquid, gas temperature transmitter
