| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 381 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $105~$235/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 0 ~ 1-300MPa | Overall Accuracy: | 0.25% FS; 0.5% FS |
|---|---|---|---|
| Output: | 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V | Calibration Signal: | 80% FS Calibration; Zero And Span Adjustment |
| Working Temperature: | -10 ~ 450 ℃ |

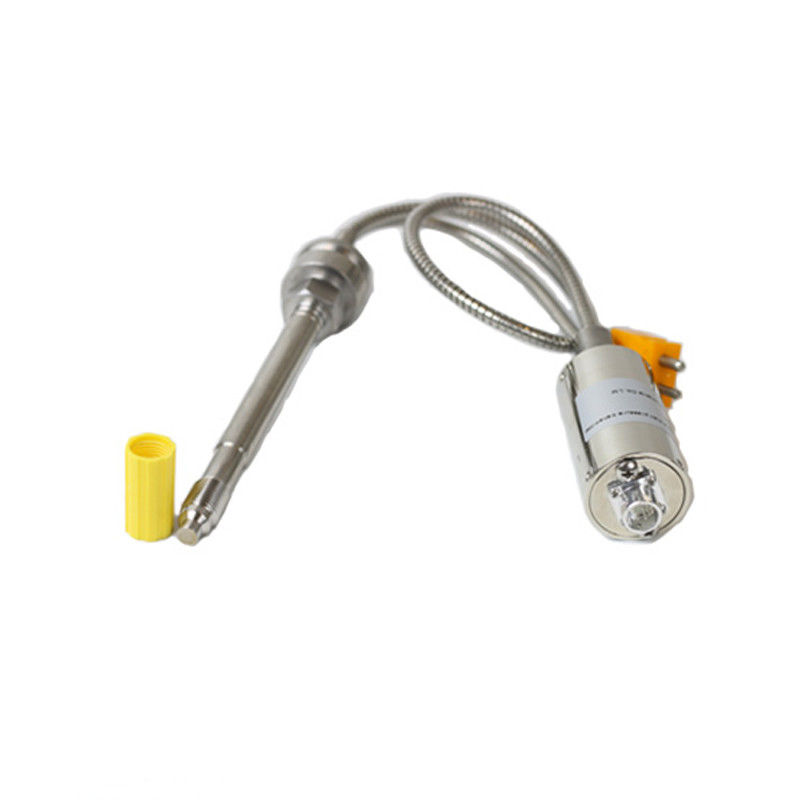

High temperature melt pressure sensor 4-20mA
Description
Rigid rod and hose isolation, isolation diaphragm structure, medium temperature below 450 ℃, with good stability and accuracy; used in rubber, plastics, chemical fiber polyester nylon, polyester, and other mechanical equipment of high-temperature steam fluid / gmedia pressure measurement and control. melt pressure Transmitters

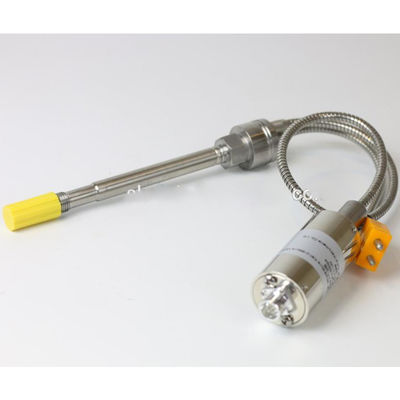

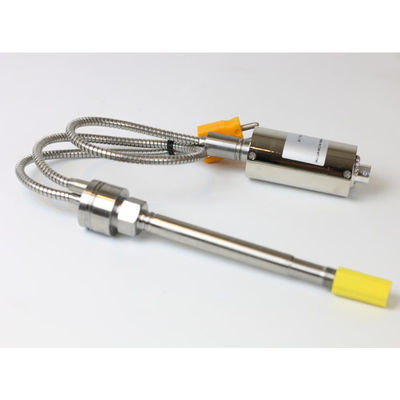

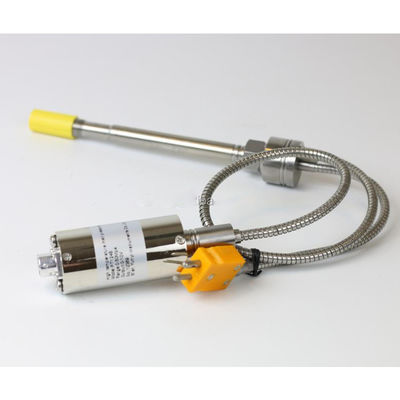

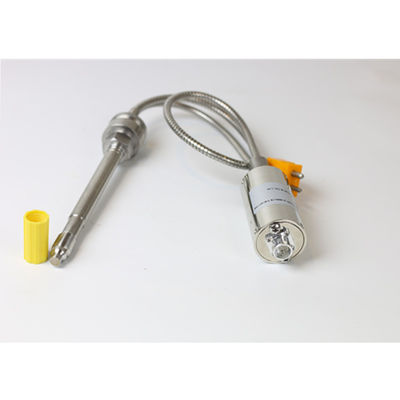

Detailed Images
Specification
| High temperature melt pressure sensor 4-20mA | |
| Range | 0 ~ 1-300MPa |
| Overall accuracy | 0.25% FS; 0.5% FS |
| Output | 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V |
| Calibration signal | 80% FS calibration; zero and span adjustment |
| Working temperature | -10℃ ~ +450℃ |
| Supply voltage | |
| Sensor | 10VDC (6-12VDC) |
| transmitter | 24VDC (9 ~ 36 V) |
| Long-term stability | 0.1% FS / year |
| Insulation resistance | more than 2000MΩ 100VDC |
| Vibration | 20HZ-1KHZ to mechanical vibration, the output changes less than 0.1% FS |
| Sealing class | IP65 |
| Signal leads | five-pin connector 5pin |
| Structural dimensions | long straight bar 152mm, hose length: 470mm |
| Threaded connection | M14X1.5 (Universal); M16X1.5; M18X1.5; M20X1.5; M22X1.5 (Universal) Other threads can design melt pressure transmitter |
Applications
* Chemical fiber Equipment
* Plastic and Rubber manufacturing equipment
* Medicine & Food process equipment ,
* Drinking water environmental monitoring occasion
* Other pressure measurement and Control
