| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PT100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $6.5~$65/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

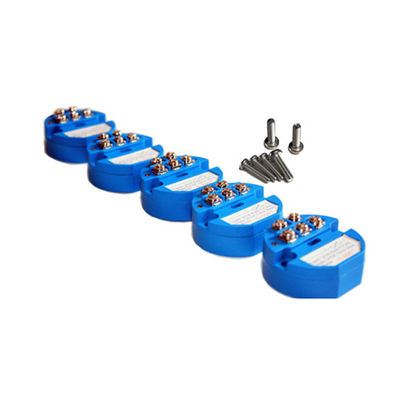

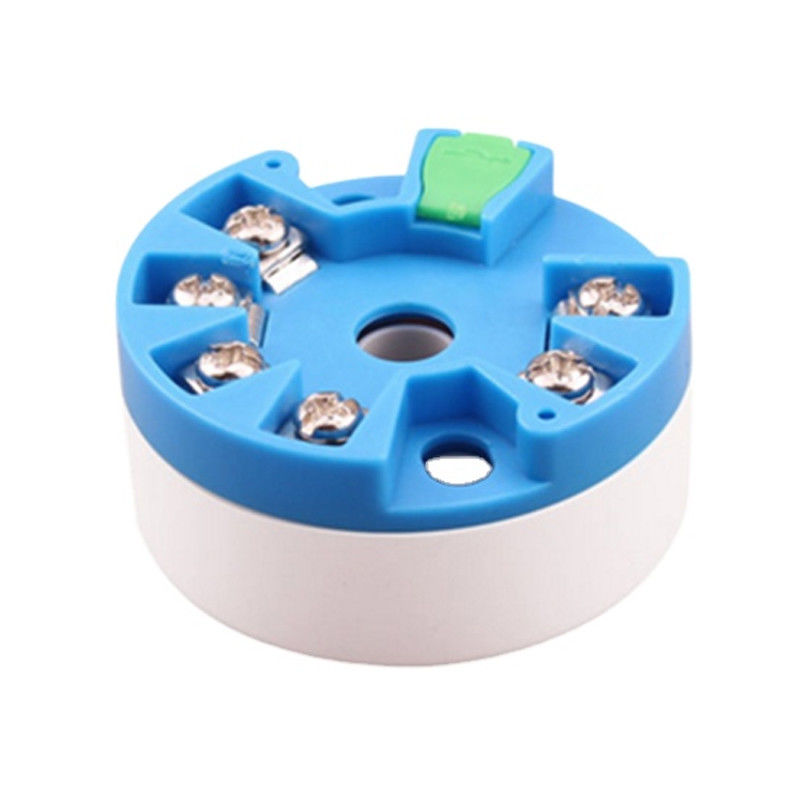

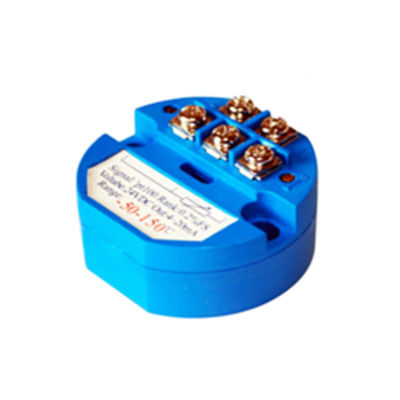

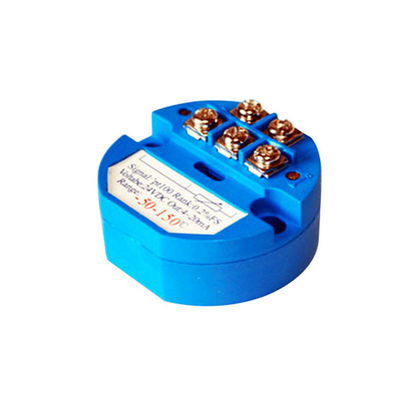

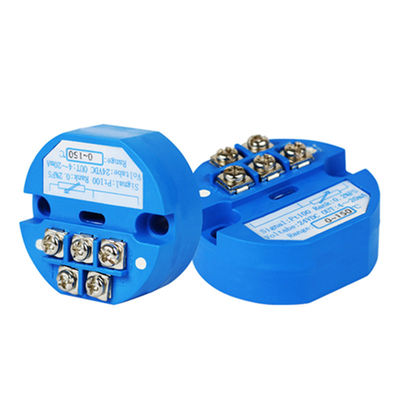

| Name: | 4-20mA Output Head Mounted Temperature Sensor Transmitter | Output: | 4~20mA/5,10V |
|---|---|---|---|
| Input Signal: | PT100/PT1000 | Working Temperature: | -20~70℃ |
temperature transmitter module is with 24V power supply, two-wire system of integrated transmitter. Products adopts imported integrated circuits, the thermal resistance or thermonuclear signal amplification and conversion into 4-20mA or 0-10mA output current, or 0 ~ 5V output voltage. One armored transmitter can directly measure the gas or liquid temperature is particularly suitable for low temperature range measurement, to overcome the condensation of water on the impact of temperature measurement.
Thermal resistance measurement range: PT100:-200~650℃;CU50:-50~150℃
Thermocouple measurement range: K type:300~1200℃; E type:200~800℃;S type:600~1600℃
Output siginal: 4-20mA,0-10mA,0-10V,0-5V
Measurement accuracy: Thermocouple measurement:0.2~0.3% Thermocouple:1~2%
Temperature drift: 0.025%/℃
Power supply: +12VDC or +24VDC±10% Work environment: 0~70℃ Storage Conditions: -40~+85℃
