High accuracy of temperature melt pressure transmitter

Description of China high temperature melt pressure transmitter price:

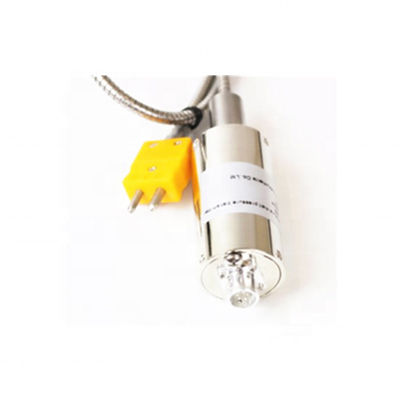

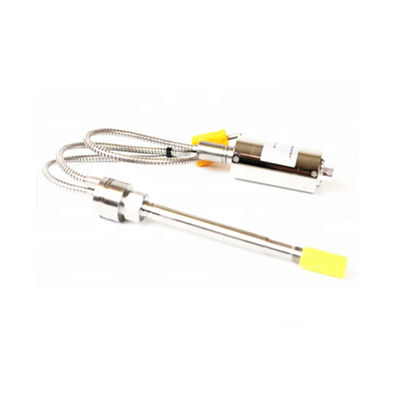

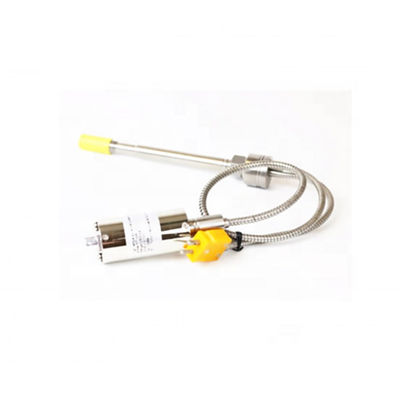

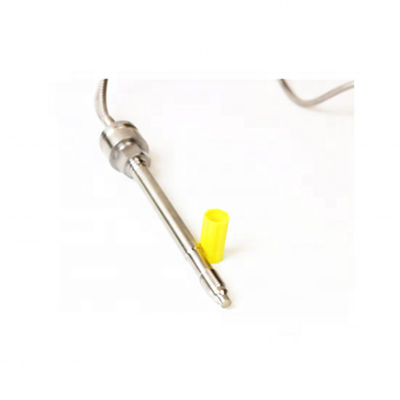

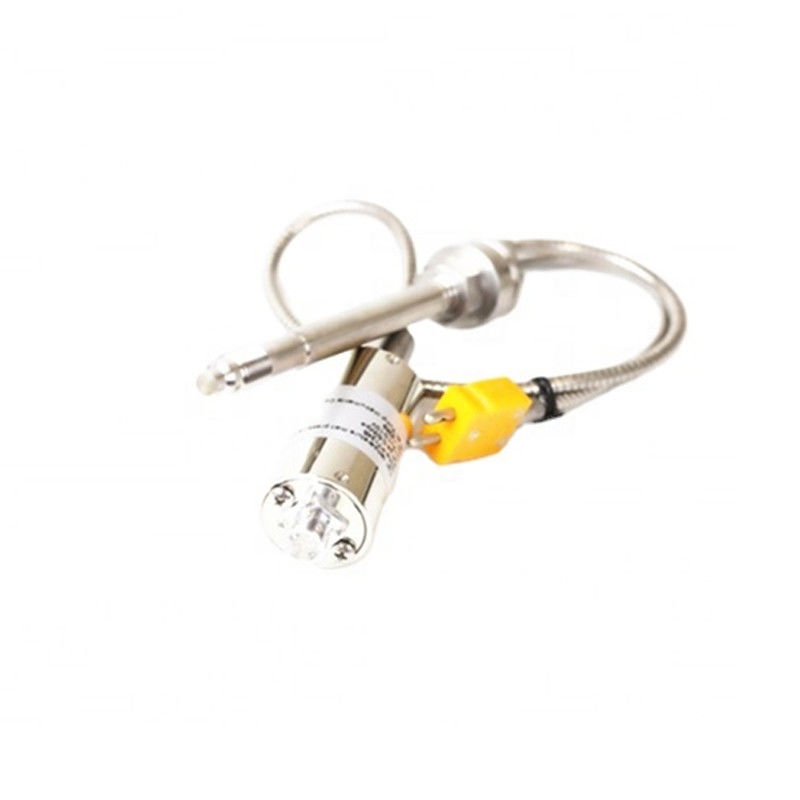

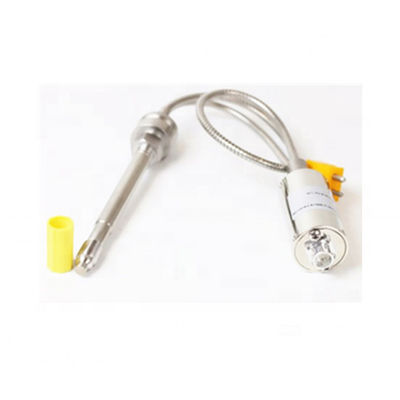

381 Series Melt Pressure Transducer can achieve the pressure and temperature measuring. This series adopt special material and alloy elastic membrane to low down temperature draft and improve accuracy. The zero & full span can be calibrated, with amplify signal be connected with PLC, and internal 80% calibration. It has the wide application in high-temp liquid pressure measurement and control such as Chemical & Fiber equipment, polyester equipment, etc.

Specs of China high temperature melt pressure transmitter price:

Range: 0….10Mpa to 0….150MPa (0…1500psi to 0…20000psi)
Output: 3.33mV/V; 2mV/V
Accuracy: ±0.5%FS
Excitation: 10VDC
Repeatability: ±0.2%
Diaphragm material: 15-5PH
Bridge resistance: 350 ohms±10%
design)

Overload pressure: 1.5×FSO
Internal calibration: 80%FSO±1%
Insulation Resistance: 1000Megohms @50Vdc
Max. Diaphragm Temp: 350℃
Electric connector: 5PIN, 6PIN, 8PIN
Process connector: 1/2″-20UNF, M14×1.5, M18×1.5(Customer

Features of China high temperature melt pressure transmitter price

High accuracy
Stainless steel welding
Easy to install
Internal 80% calibration
Excellent stability and repeatability
