| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 2088 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $175~$295/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Led High Temperature Pressure Sensor Transducer | Output: | RS485 |
|---|---|---|---|
| Power Supply: | 24VDC | Accuracy: | 0.5%FS |
| Ambient Temperature: | 0-150℃, 250℃, 350℃ | Temperature Effect: | ±0.04%/10K Or ±0.08%/10K |
| Type: | Pressure Senor | Warranty: | 12 Months |
| Application: | Liquid | Pressure Type: | Gauge Pressure Absolute Pressure Sealed Pressure |

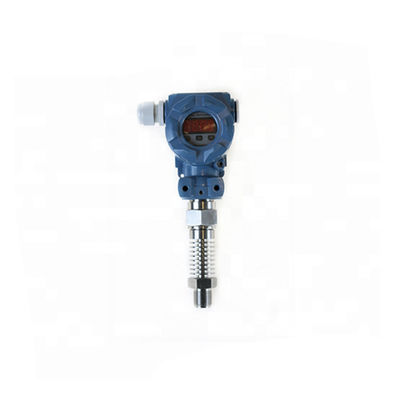

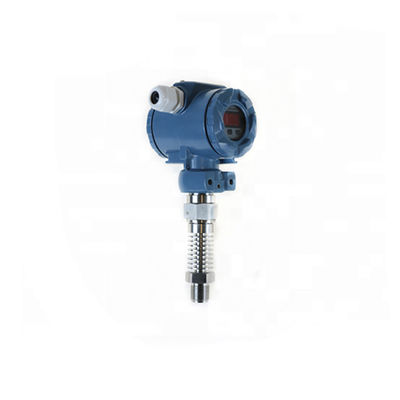

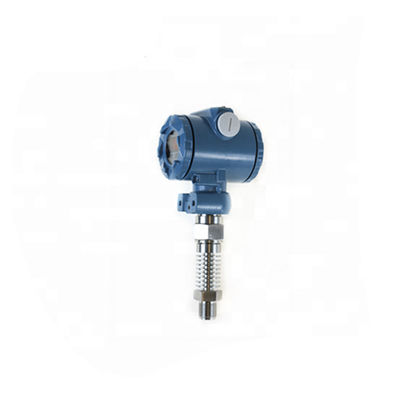

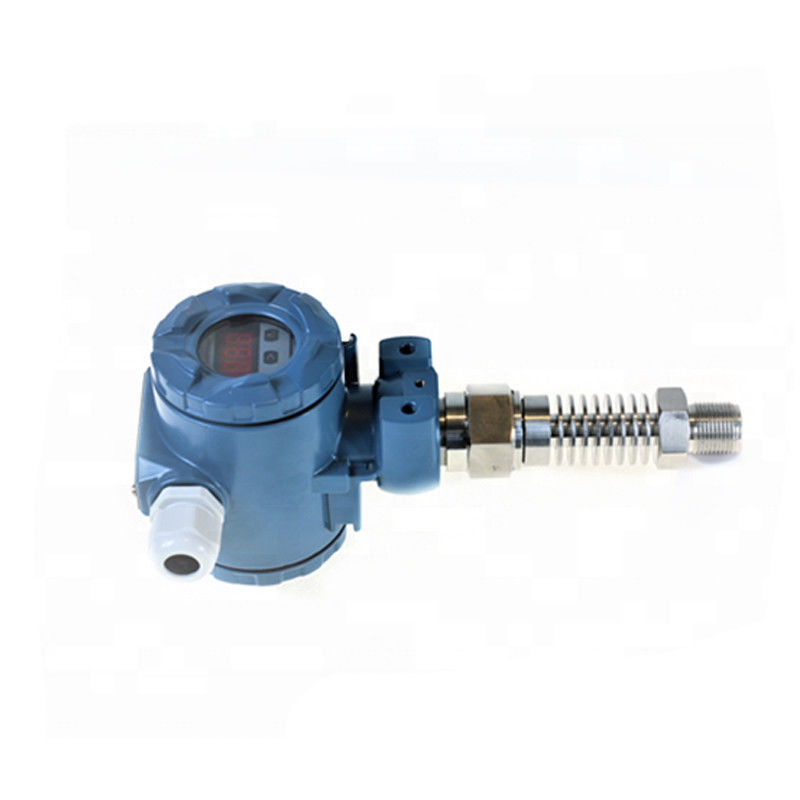

Led High temperature pressure sensor transducer
Led High temperature pressure sensor transducer with led adopt advanced imported sensor component and anti-high temperature sensitive element.
The pressure transmitter's probe can work stably for a long time under high temperature 350℃ operation environment.
Laser welding technology is used between sensor and stainless steel house, which melts the two parts into one, and ensures pressure transmitter's safety usage at high temperature state.
Between pressure core parts of pressure transmitter and circuit board, there is a PTFE() gasket for heat insulation.
Faeture of Led High temperature pressure sensor transducer
* Various signal outputs
* HART protocol is available
* With Heatsink construct
* High precision 0.1%FS, 0.2%FS, 0.5%FS
* Compact dimension design, strong construct
* Operating temperature: 150℃, 250℃, 350℃
* Light weight, easy to install, maintenance-free
* 100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
Application of Led High temperature pressure sensor transducer
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
| Name | Led High temperature pressure sensor transducer |
| Pressure range | 0—0.2kPa~100kPa, 0-0.2kPa~100MPa. |
| Pressure type | Gauge pressure(G), Absolute pressure(A), |
| Sealed pressure(S), Minus pressure (N). | |
| Compensation temperature | 0~150℃, 250℃, 350℃ |
| Operation temperature | Probe: 150℃, 250℃, 350℃ |
| Circuit board: -30~70℃ | |
| Output signal | 4-20mA; 0-10mA; 0-5V; 1-5V |
| Power supply | 24V DC; 220VAC, 50Hz |
| Electrical connection | Cable, Terminal block |
| Pressure connection | M20*1.5, G1/2, customized |
| Overload pressure | 150%FS |
| Stability | 0.5%FS/ year |
| Material | Shell: Aluminium alloy |
| Wetted part: Stainless steel 304 or 316L |
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
