| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | 381 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $165~$245/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 0 ~ 1-300MPa | Overall Accuracy: | 0.25% FS; 0.5% FS |
|---|---|---|---|
| Output: | 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V | Calibration Signal: | 80% FS Calibration; Zero And Span Adjustment |
| Working Temperature: | -10 ~ 450 ℃ |
China high temperature melt pressure transducer
Description
Rigid rod and hose isolation, isolation diaphragm structure, medium temperature below 450 ℃, with good stability and accuracy; used in rubber, plastics, chemical fiber polyester nylon, polyester, and other mechanical equipment of high-temperature steam fluid / gmedia pressure measurement and control. melt pressure Transmitters

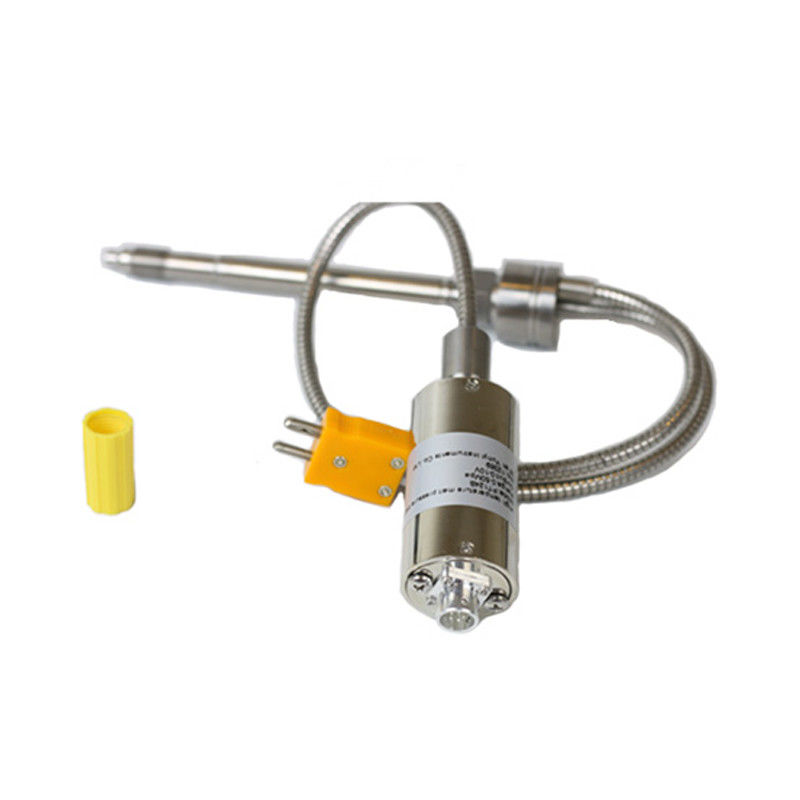

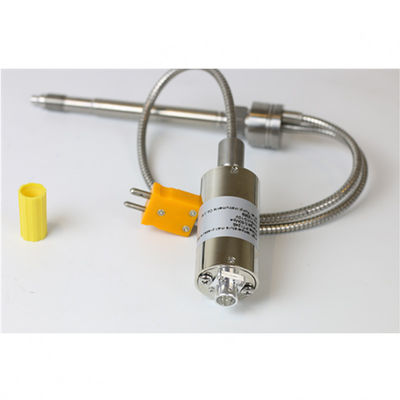

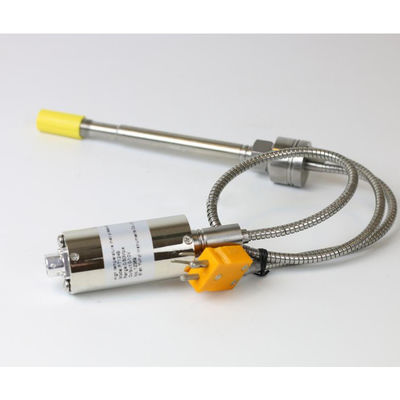

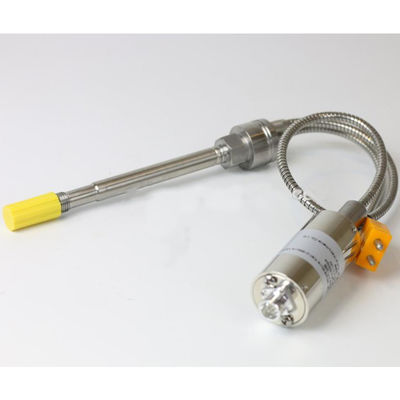

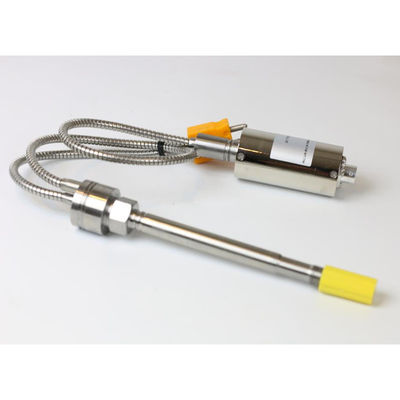

Detailed Images
Specification
| High temperature melt pressure sensor 4-20mA | |
| Range | 0 ~ 1-300MPa |
| Overall accuracy | 0.25% FS; 0.5% FS |
| Output | 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V |
| Calibration signal | 80% FS calibration; zero and span adjustment |
| Working temperature | -10℃ ~ +450℃ |
| Supply voltage | |
| Sensor | 10VDC (6-12VDC) |
| transmitter | 24VDC (9 ~ 36 V) |
| Long-term stability | 0.1% FS / year |
| Insulation resistance | more than 2000MΩ 100VDC |
| Vibration | 20HZ-1KHZ to mechanical vibration, the output changes less than 0.1% FS |
| Sealing class | IP65 |
| Signal leads | five-pin connector 5pin |
| Structural dimensions | long straight bar 152mm, hose length: 470mm |
| Threaded connection | M14X1.5 (Universal); M16X1.5; M18X1.5; M20X1.5; M22X1.5 (Universal) Other threads can design melt pressure transmitter |
Applications
* Chemical fiber Equipment
* Plastic and Rubber manufacturing equipment
* Medicine & Food process equipment ,
* Drinking water environmental monitoring occasion
* Other pressure measurement and Control
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
