| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 3121 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $165~$245/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Medium: | Liquid, Gas | Temperature Range: | -50-300 ℃ |
|---|---|---|---|
| Power Supply Range: | 9 ~ 36VDC | Output Signal: | 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485 |
| Accuracy Class: | ± 0.5 ℃ | Stability: | ± 0.1% FS / Year |
| MOQ: | 1 Piece | Warranty: | Warranty |
| Product Name: | Explosion-proof 4-20mA Temperature Transmitter |
Explosion-proof 4-20mA temperature transmitter
Description
Explosion-proof 4-20mA temperature transmitter is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.

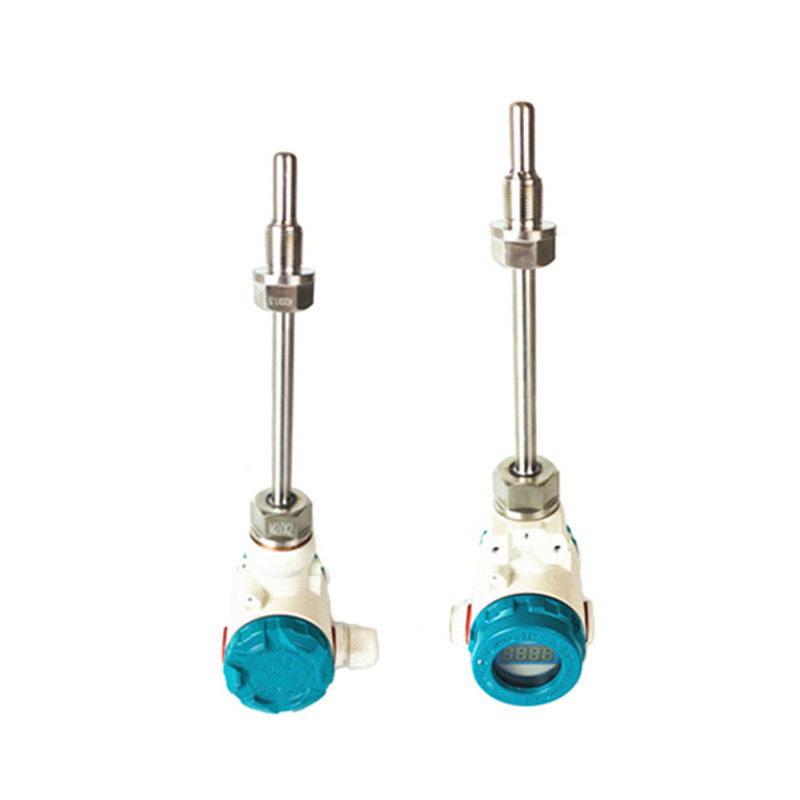

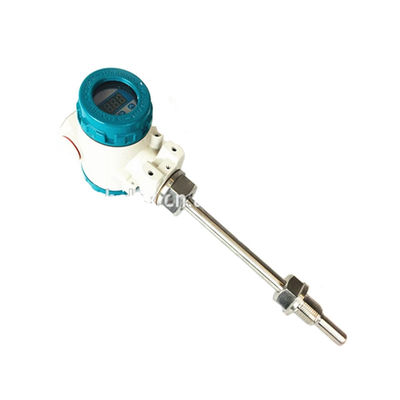

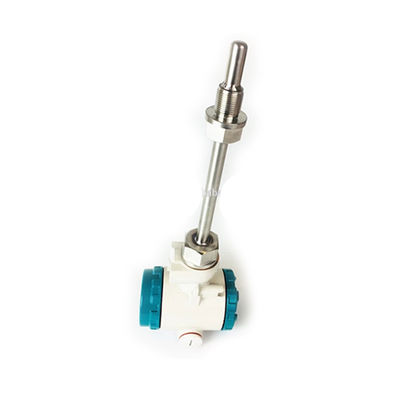

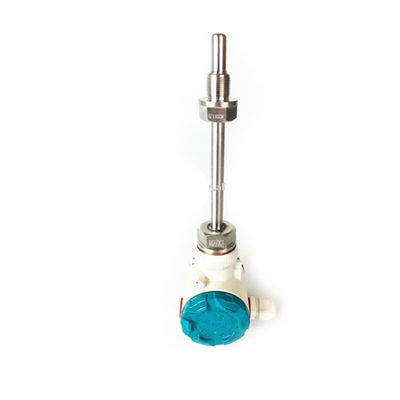

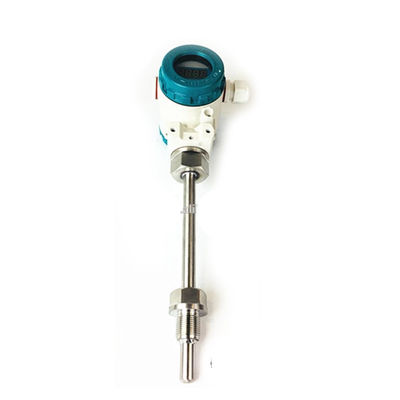

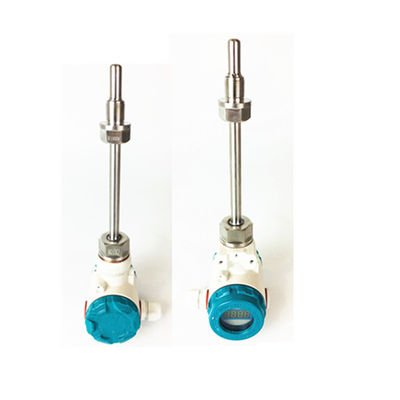

Detailed Images
Specification
| Explosion-proof 4-20mA Temperature Transmitter | |
| Measuring Media | Liquid, Gas |
| Measuring Range | -50℃ ~ 300℃ |
| Power Supply Range | 9~36V DC |
| Output Signal | 4~20mA, 0~5V DC, 0~10V DC, RS485 |
| Probe Material | SS 304 |
| Accuracy Class | ±0.5℃ |
| Ambient Temperature | -40℃ ~ 85℃ |
| Stability | ±0.1%FS/year |
| Protection | IP65 |
| Pressure Level | 10Mpa (Above Can be Customized) |
| Max Power | Current Type≤0.02Us (W) Voltage-≤0.008Us (W) Numeric≤0.015Us (W) Note: Us=Supply Voltage |
| Load Characteristics | Current-Load≤ {(Us-7)÷0.02(Us=Supply Voltage)}Ω Voltage Type Load≥100kΩ |
