| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | 381 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $185~$245/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | High Temperature Melt Pressure Transmitter | Pressure Range: | 0....10Mpa To 0....150MPa (0...1500psi To 0...20000psi) |
|---|---|---|---|
| Output: | 3.33mV/V; 2mV/V | Accuracy: | ±0.5%FS |
| Excitation: | 10VDC | Repeatability: | ±0.2% |
| Diaphragm Material: | 15-5PH | Bridge Resistance: | 350 Ohms±10% |
| Overload Pressure: | 1.5%FSO | Warranty: | 12 Months |

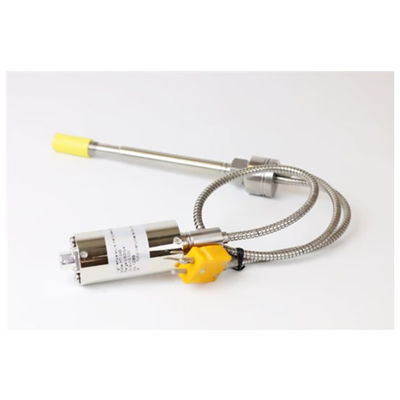

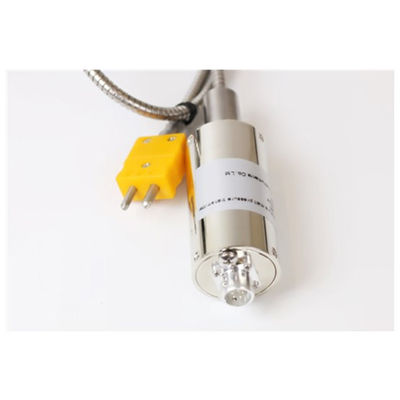

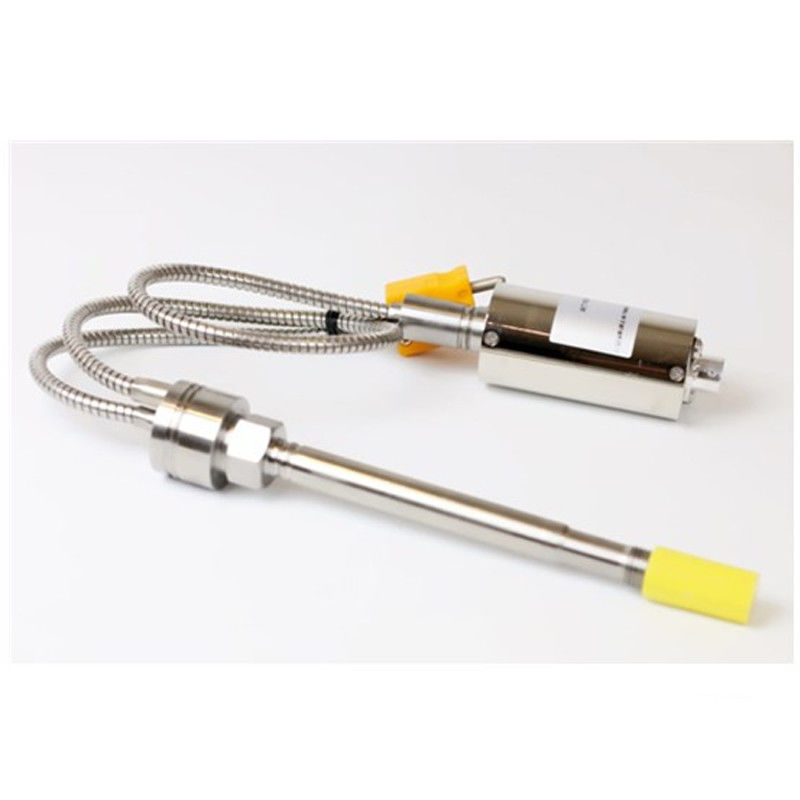

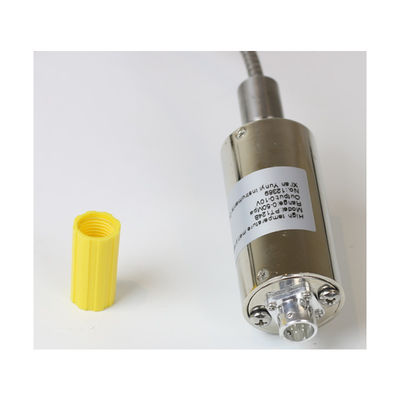

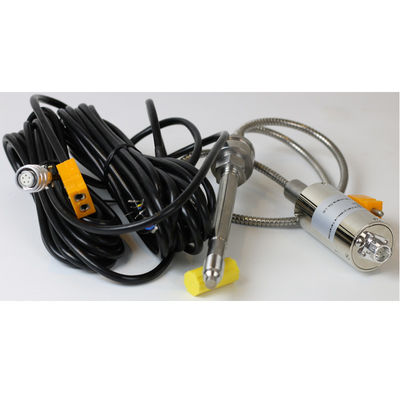

| Item | High temperature melt pressure transmitter |
| Pressure range | 0....10Mpa to 0....150MPa (0...1500psi to 0...20000psi) |
| Output | 3.33mV/V; 2mV/V |
| Accuracy | ±0.5%FS |
| Excitation | 10VDC |
| Repeatability | ±0.2% |
| Diaphragm material | 15-5PH |
| Bridge resistance | 350 ohms±10% |
| Overload pressure | 1.5%FSO |
| Warranty | 12 months |
| Product Keywords | pressure transducer,pressure transducer with high temperature,melt pressure transmitter price |
Characteristics and Applications
stability and accuracy; used in rubber, plastics, chemical fiber polyester nylon, polyester, and other mechanical equipment of high-temperature steam fluid / gmedia pressure measurement and control. melt pressure Transmitters
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment ,
Drinking water environmental monitoring occasion
Other pressure measurement and Control
The main technical parameters
Range: 0 ~ 1-300MPa
Overall accuracy: 0.25% FS; 0.5% FS
Output: 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V
Calibration signal: 80% FS calibration; zero and span adjustment
Working temperature: -10 ~ 450 ℃
Supply voltage: Sensor: 10VDC (6-12VDC) transmitter: 24VDC (9 ~ 36 V)
Long-term stability: 0.1% FS / year
Insulation resistance: more than 2000MΩ 100VDC
Vibration: 20HZ-1KHZ to mechanical vibration, the output changes less than 0.1% FS
Sealing class: IP65
Signal leads: five-pin connector 5pin
Structural dimensions: long straight bar 152mm, hose length: 470mm
Threaded connection: M14X1.5 (Universal); M16X1.5; M18X1.5; M20X1.5; M22X1.5 (Universal) Other threads can design melt pressure transmitter
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
