| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PT100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $5~$45/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Performance Temperature Transmitter Module Thermocouple 4-20mA | Accuracy: | +/-0.2% |
|---|---|---|---|
| Input Signal: | PT100/PT1000 | Output Signal: | 4-20ma 0-5v 0-10v |
| Ambient Temperature: | -20-70 | Response Time: | <1s |
| Temperature Range: | -100-500℃ | Storage Temperature: | -40~+100℃ |
| Protection: | IP66 | Warranty: | 12 Months |

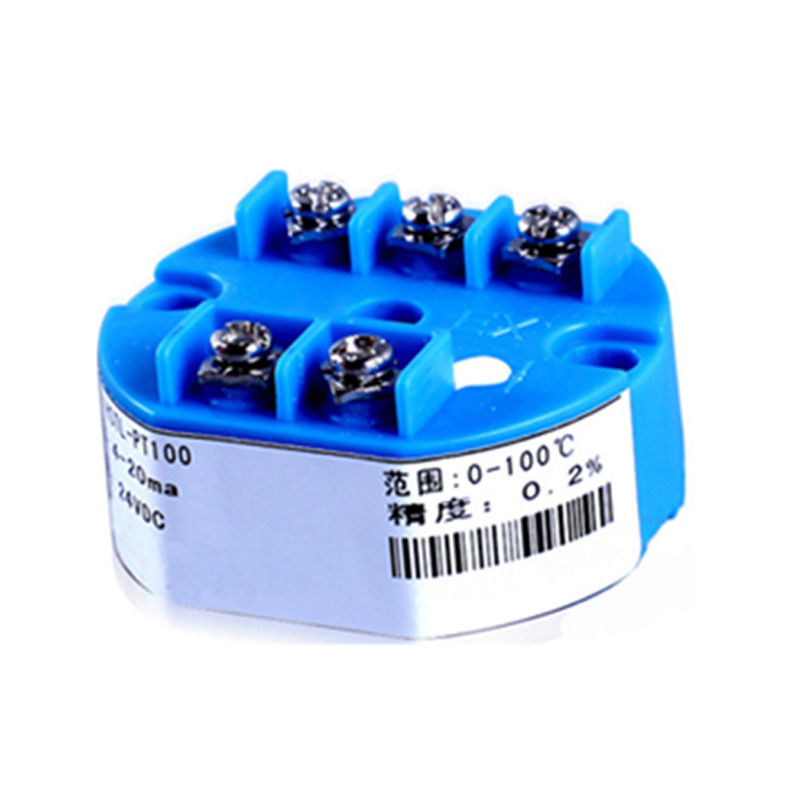

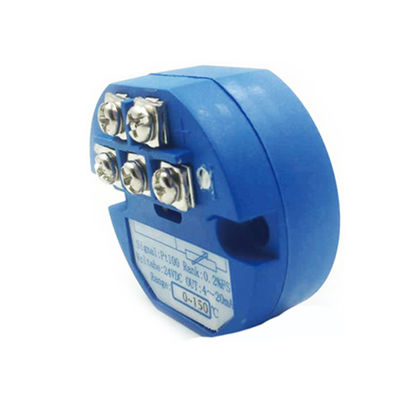

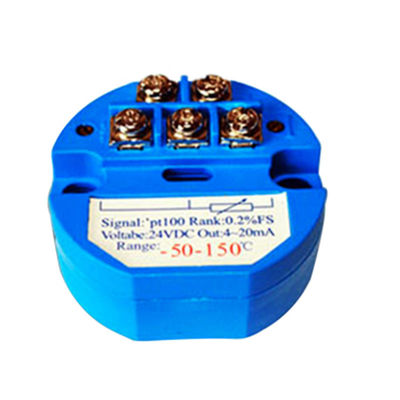

High Performance Temperature Transmitter Module Thermocouple 4-20mA
Temperature Transmitter Module
Description of High Performance Temperature Transmitter Module Thermocouple 4-20mA :
temperature transmitter module is with 24V power supply, two-wire system of integrated transmitter. Products adopts imported integrated circuits, the thermal resistance or thermocouple signal amplification and conversion into 4-20mA or 0-10mA output current, or 0 ~ 5V output voltage. One armored transmitter can directly measure the gas or liquid temperature is particularly suitable for low temperature range measurement, to overcome the condensation of water on the impact of temperature measurement.
Specifications of High Performance Temperature Transmitter Module Thermocouple 4-20mA :
Thermal resistance measurement range: PT100:-200~650℃;CU50:-50~150℃
Thermocouple measurement range: K type:300~1200℃; E type:200~800℃;S type:600~1600℃
Output siginal: 4-20mA,0-10mA,0-10V,0-5V
Measurement accuracy: Thermocouple measurement:0.2~0.3% Thermocouple:1~2%
Temperature drift: 0.025%/℃
Power supply: +12VDC or +24VDC±10% Work environment: 0~70℃ Storage Conditions: -40~+85℃
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
