| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | WSSX |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $5~$45/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Quality Bimetal Thermometer Temperature Gauge | Accuracy: | 1.0, 1.5class |
|---|---|---|---|
| Range: | (-80~500℃) -80~40℃...0~500℃ (option) | Response Time: | <40s |
| Feature: | Temperature Transmitter, Temperature Controller Temperture Gauge | Protection: | IP55 |
| Dial Siza: | 60mm,100mm,150mm | Material: | Ss304,316ss,316L,1Cr18Ni9Ti |
| Function: | Temperature Transmitter, Bimetal Thermometer |

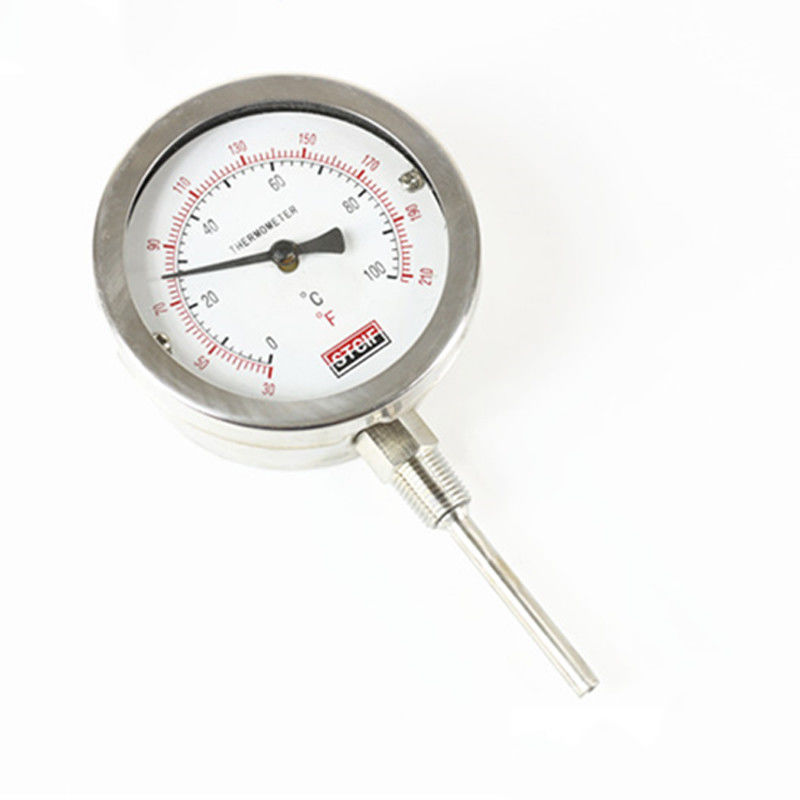

High quality Bimetal Thermometer temperature gauge
bimetal temperature gauges is one kind of thermometers to measure middle and low temperature on the spot. It could be used to directly measure temperature of liquid, vapor and gas ranging from -80 to 500℃.
Features of High quality Bimetal Thermometer temperature gauge:
1. Directly display temperature on the spot
2. High reliability and long life expectancy
3. Many structure forms to meet different demands
Operation Theory
Thermometer temperature gauge is based on bimetal bended into ring shape. One side of bimetal expands in time of being heated ,which results in revolving of indicator, then the meter indicates corresponding temperature value to pyroelectric potential.
High quality Bimetal Thermometer temperature gauge
Product performance standards of stainless steel back connection Industrial Bimetal Thermometer temperature gauge:
JB / T8803-1998/GB3836-83
1. Executive Standard: JB/T8803-1998
2. Nominal Diameter of Dial: 60, 100, 150
3. Accuracy Class (1.0), 1.5
4. Thermal Response Time:≤40s
5. Protection Class: IP55
6. Angle-adjusting Error
It shall be no more than 1% of its measuring range
7. Return Error
It shall be no more than the absolute value of basic error limit.
8. Repeat
The repeat range shall be no more than 1/2 of absolute value of basic error limit.
9. Measuring Range:-80~500℃
Electric contact bimetallic thermometer temperature gauge model:
The model list of High quality Bimetal Thermometer temperature gauge meter:
| Measuring Range°C | Application Range | |
| For Industry & Commerce | For Laboratory | |
| -80~+40 | √ | √ |
| -40~+80 | √ | √ |
| 0~50 | √ | √ |
| 0~100 | √ | √ |
| 0~150 | √ | √ |
| 0~200 | √ | √ |
| 0~300 | √ | √ |
| 0~400 | √ | - |
| 0~500 | √ | - |
