| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 381 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $185~$245/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | High Temperature Sensor Melt Pressure Transducer |
|---|
high temperature sensor melt pressure transducer
high temperature sensor melt pressure transducer Ordering guide
Pressure range:
Output:
Power:
Thread:
Electric connection:
Quantities:
Description high temperature sensor melt pressure transducer:
HTP124 Series Melt Pressure Transducer can achieve the pressure and temperature measuring. This series adopt special material and alloy elastic membrane to low down temperature draft and improve accuracy. The zero & full span can be calibrated, with amplify signal be connected with PLC, and internal 80% calibration. It has the wide application in high-temp liquid pressure measurement and control such as Chemical & Fiber equipment, polyester equipment, etc.
Application high temperature sensor melt pressure transducer:
Fiber Equipment
Plastic and Rubber manufacturing equipment
Other melt pressure measurement and Control
Technical indicators high temperature sensor melt pressure transducer :
Range: 0….10Mpa to 0….150MPa (0…1500psi to 0…20000psi)
Output: 3.33mV/V; 2mV/V
Accuracy: ±0.5%FS
Excitation: 10VDC
Repeatability: ±0.2%
Diaphragm material: 15-5PH
Bridge resistance: 350 ohms±10%
Overload pressure: 1.5×FSO
Internal calibration: 80%FSO±1%
Insulation Resistance: 1000Megohms @50Vdc
Max. Diaphragm Temp: 350℃
Electric connector: 5PIN, 6PIN, 8PIN
Process connector: 1/2″-20UNF, M14×1.5, M18×1.5(Customer design)
Features high temperature sensor melt pressure transducer:
High accuracy
Stainless steel welding
Easy to install
Internal 80% calibration
Excellent stability and repeatability

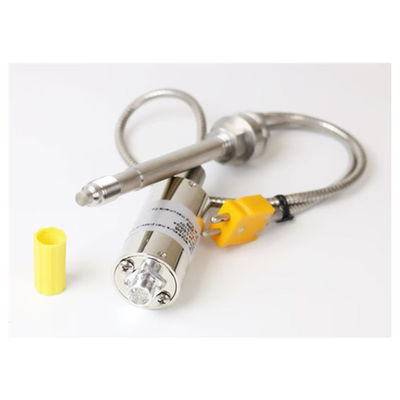

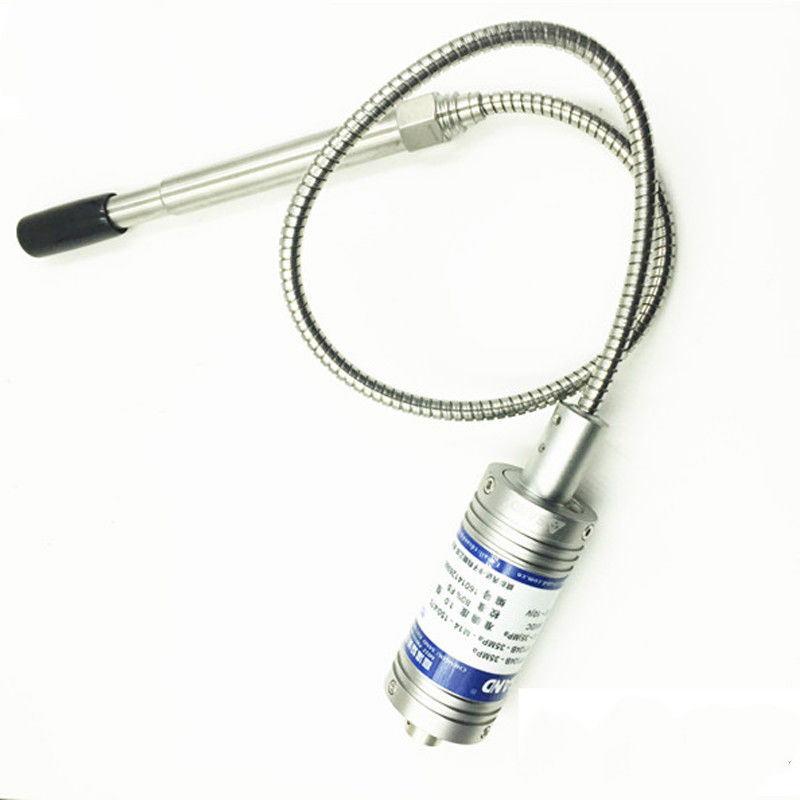

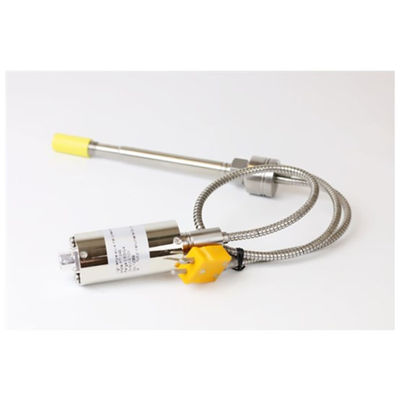

Pictures high temperature sensor melt pressure transducer
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
