| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | WSS |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $6~$45/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Installation: | Thread, Flange | Application: | Anti-corrosion |
|---|---|---|---|
| Dial: | 100, 150mm Customized |
China Best hot water bimetal thermometer / temperature gauge
Description
304SS industrial bimetal temperature meter is one kind of thermometers to measure middle and low temperature on the spot. It could be used to directly measure temperature of liquid, vapor and gas ranging from -80 to 500°C.

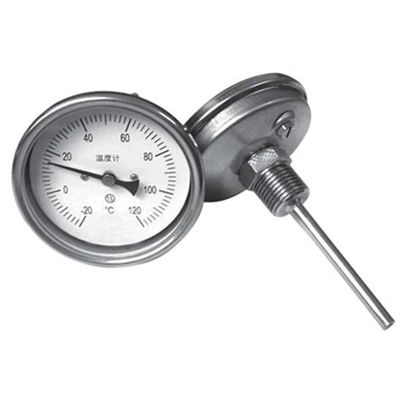

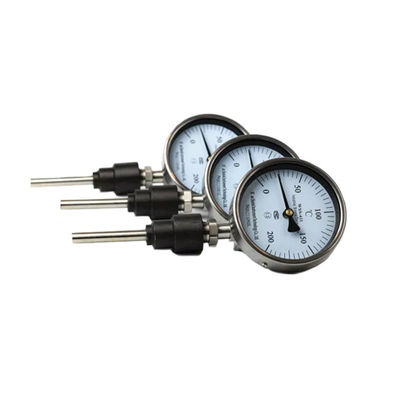

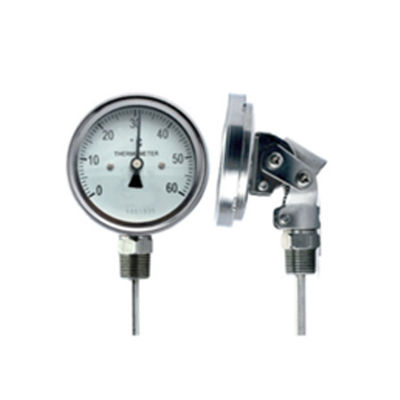

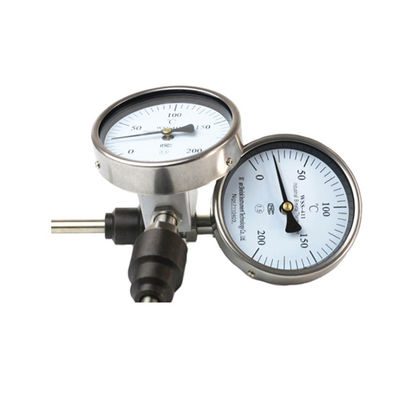

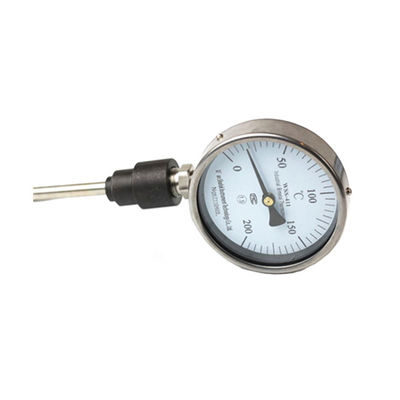

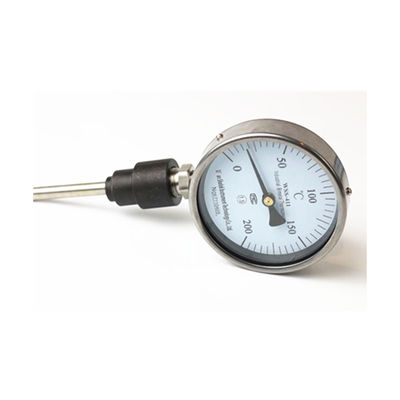

Detailed Images
Specification
| China Best hot water bimetal thermometer / temperature gauge | ||
| Measuring Range | Application Range | |
| For Industry & Commerce | For Industry & Commerce | |
| -80℃ ~ +40℃ | √ | √ |
| -40℃ ~ +80℃ | √ | √ |
| 0℃ ~ 50℃ | √ | √ |
| 0℃ ~ 100℃ | √ | √ |
| 0℃ ~ 150℃ | √ | √ |
| 0℃ ~ 200℃ | √ | √ |
| 0℃ ~ 300℃ | √ | √ |
| 0℃ ~ 400℃ | √ | - |
| 0℃ ~ 500℃ | √ | - |
304SS industrial bimetal temperature meter
1. Executive Standard: JB/T8803-1998
2. Nominal Diameter of Dial: 60, 100, 150
3. Accuracy Class (1.0), 1.5
4. Thermal Response Time:≤40s
5. Protection Class: IP55
6. Angle-adjusting Error
It shall be no more than 1% of its measuring range
7. Return Error
It shall be no more than the absolute value of basic error limit.
8. Repeat
The repeat range shall be no more than 1/2 of absolute value of basic error limit.
9. Measuring Range
Features
304SS industrial bimetal temperature meter
1. Directly display temperature on the spot
2. High reliability and long life expectancy
3. Many structure forms to meet different demands
Operation Theory
304SS industrial bimetal temperature meter
Bimetallic thermometer is based on bimetal bended into ring shape. One side of bimetal expands in time of being heated ,which results in revolving of indicator, then the meter indicates corresponding temperature value to pyroelectric potential.
