| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PT100-322 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $35~$45/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Measure Range: | 0~0.1bar...35bar | Accuracy: | 0.1%FS(range>1bar),0.25%FS(standard), 0.5%FS |
|---|---|---|---|
| Thread: | G1/4, G1/2 1/4NPT, 1/2NPT Etc | Output: | 4~20mA, 0~5V, 0~10V, 1~5V,0.5~4.5V |
| OperatingTemp. Range: | -40℃~120℃ | Material: | 316L |
| Lable: | Customized Available | Connection Type: | M20X1.5 |
| Power Supply: | 12~36VDC | Product Name: | High Quality Temperature Pressures Sensors, Pressure Transmitters |
Factory High Quality Temperature Pressures Sensors, Pressure Transmitters
Description
High temperature pressure transmitter sensor measures the difference between the two ends of the transmitter, output standard signal (eg 4 ~ 20mA, 0 ~ 5V). Different with the general ones,the differential pressure transmitter has two pressure ports, which are the positive and negative terminal end. Under normal circumstances, the pressure of the positive side of the differential pressure transmitter should be greater than the negative side , then it works. The differential pressure transmitter is used to prevent the medium in pipeline directly into the transmitter.It is used to measure liquid, gas, or steam level, flow and pressures.

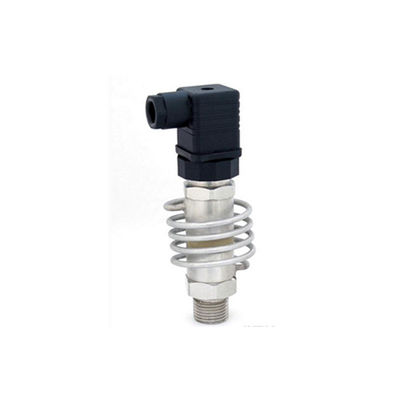

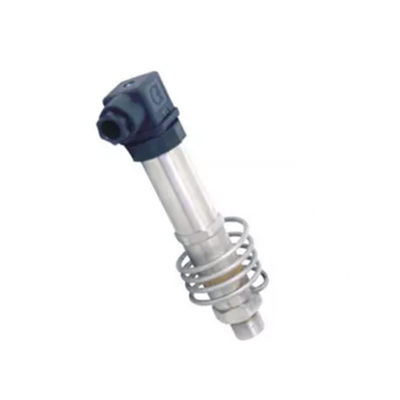

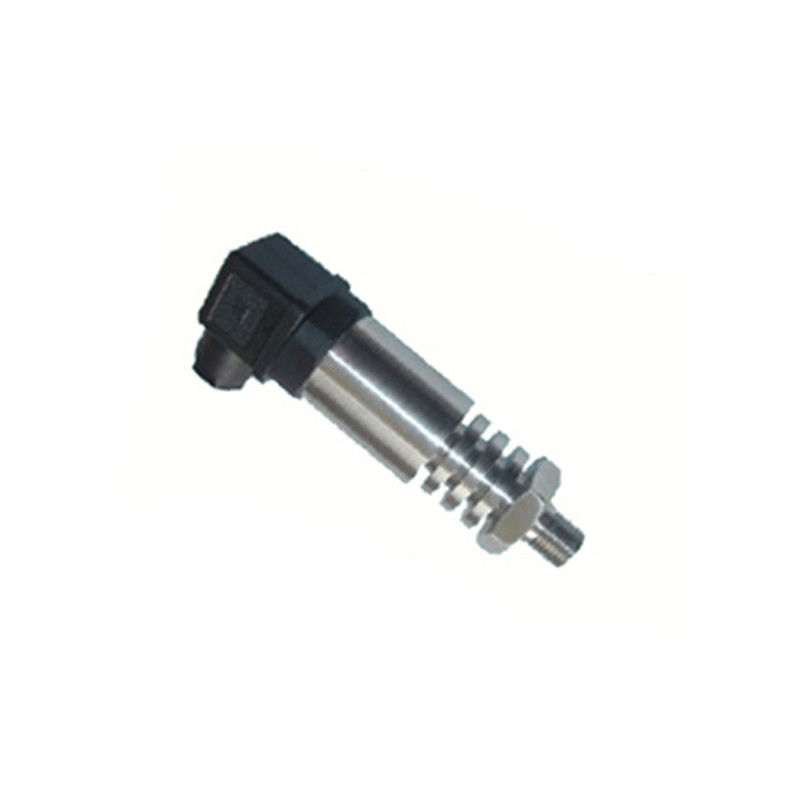

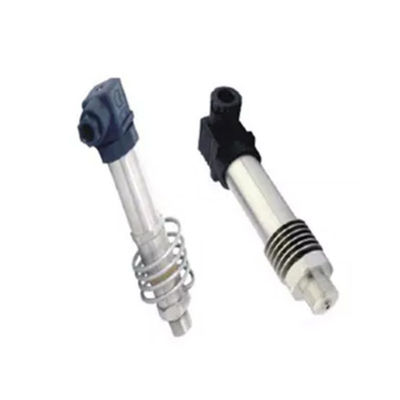

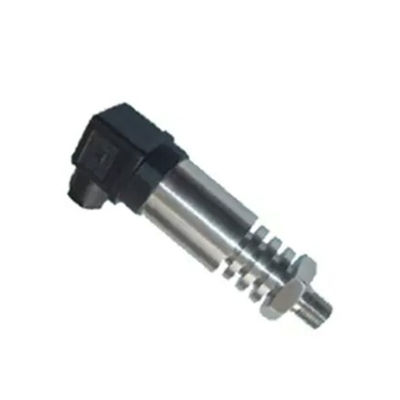

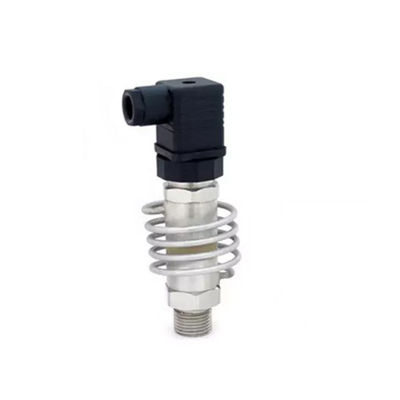

Detailed Images
Specification
| Factory High Quality Temperature Pressures Sensors, Pressure Transmitters | |
| Measure Range | 0-0.1bar...3.5bar |
| Accuracy | 0.1%FS(range>1bar),0.25%FS(standard), 0.5%FS |
| Output | 4~20mA, 0~5V, 0~10V, 1~5V,0.5~4.5V |
| Power supply | 12-36V DC |
| Overload pressure | 200%FS(Positive pressure side) 100%FS(Negative pressure side) |
| Long stability | ≤±0.2%FS/Year |
| Ambient humidity | ≤85%RH |
| Housing material | Stainless steel structure |
| System pressure | 1000% FS |
| Temp.compensation Range | 0 ± 70℃ |
| Medium | The gas, liquid without corrosion on stainless steel liquid |
| Pressure type | differential |
