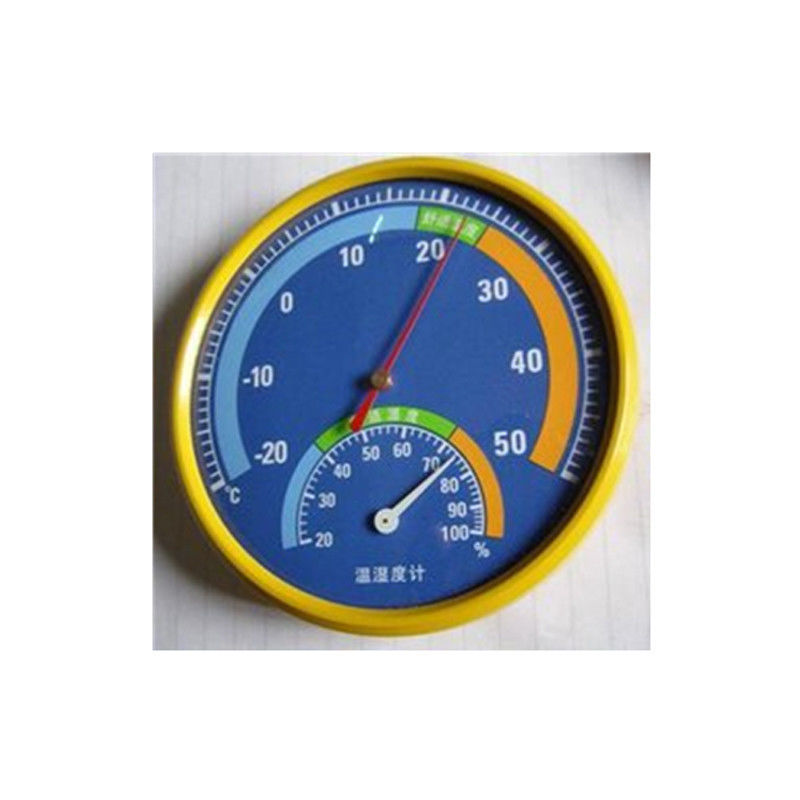

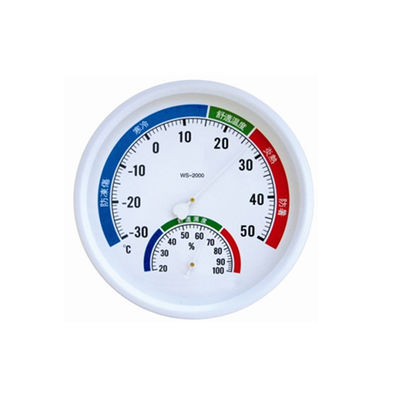

temperature and humidity meter with set pointer

Fearures of temperature and humidity meter with set pointer
This sensor is connected by multiple bus serial, external power supply is required for each sensor separately, bus endpoint digital signal converter with computer serial port connection. It can be achieved to receive the device-centric multi-point monitoring, in order to achieve a wide range of centralized control and management. The same network can monitor up to 32 monitoring points

Application of temperature and humidity meter with set pointer :

This product uses the RS485 interface mode, using a wide range of industrial applications Modbus data communication protocol for data communication can be used with all types of control equipment, instrumentation and computer display connected directly.
The RS485 interface, the maximum transmission distance of 1200 m. Enables remote temperature and humidity monitoring and control.
This large display both temperature and humidity sensors, can be directly observed the scene through the display panel changes in temperature and humidity

Humidity: 0% RH ~ -100% RH Temperature: -10 °C ~ 60 °C

Accuracy 20% RH-80% RH @ 25 °C

Humidity: ± 3.0% RH Temperature: ± 0.4 °C

Interface: RS485

Communication distance: less than 1200m

Communication protocols: standard Modbus

Response time: 15s

Address :1-255 can be programmed

Baud Rate :1200 -38,400

Supply voltage: 12V DC-24V DC

Working temperature: -10 °C ~ 80 °C

Power consumption: less than 4W

Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on.
In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue.
In 2015, Xi'an Shelok technology instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
