| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PT100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $35~$95/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Pt100 Temperature Sensors Transmitter | Theory: | Temperature Sensor |
|---|---|---|---|
| Accuracy: | ±0.5℃ | Temperature Range: | -50-300℃ |
| Measuring Range: | -50-300 ℃ | Output: | 4~20mA |
| Power Supply: | 9-36VDC | Ambient Temperature: | -40 ~ 85 ℃ |
| Stability: | ± 0.1% FS / Year |

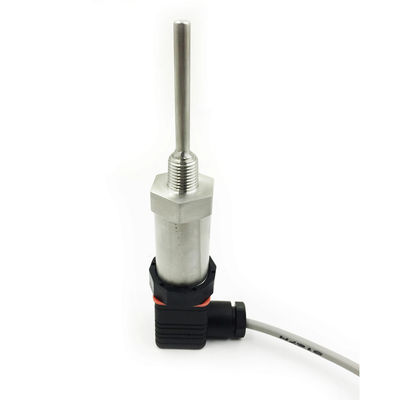

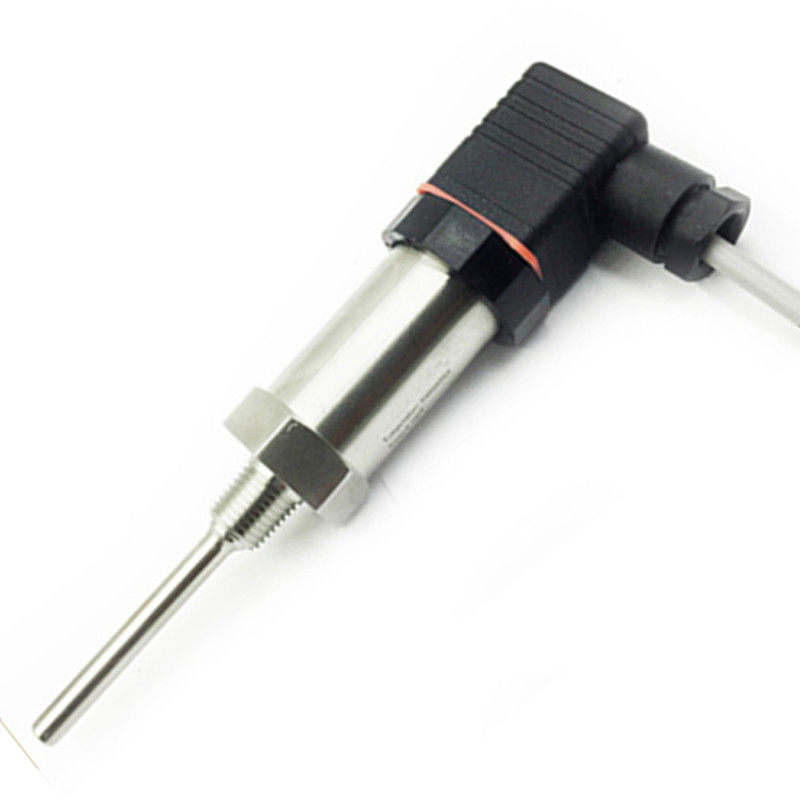

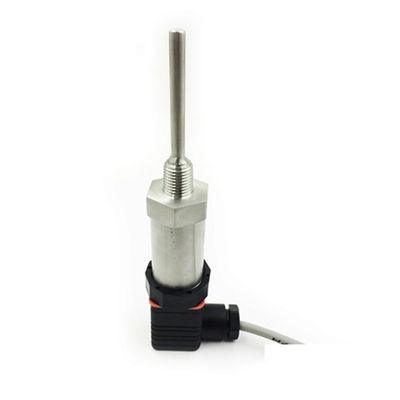

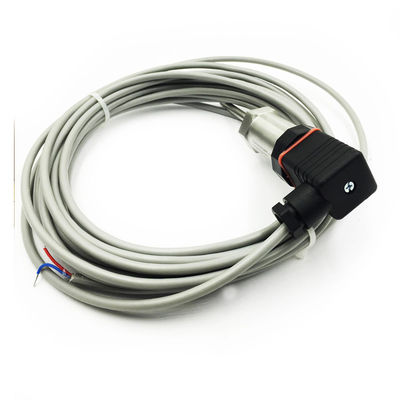

Product Description pt100 temperature sensors transmitter:
Pt100 temperature transmitter is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.
Product Features pt100 temperature sensors transmitter
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
Parameters pt100 temperature sensors transmitter
Measuring media: liquid, gas
Measuring range: -50-300 ℃
Power supply range: 9 ~ 36VDC
Output signal: 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485
Probe material: stainless steel 304
Accuracy class: ± 0.5 ℃
Ambient temperature: -40 ~ 85 ℃
Stability: ± 0.1% FS / Year
Protection: IP65
Pressure Level: 10MPa (above can be customized)
Maximum power: current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage
Load characteristics: current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω
Voltage type load ≥100kΩ
