| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | PT100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $5~$95/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 4 20ma Rtd PT100 Temperature Sensor Probe Transmitter | Temperature Range: | -50~500℃ |
|---|---|---|---|
| Ingress Protection: | IP65 | Type: | Pt100 |
| Power Supply: | 9-36VDC | Output: | RS485/4-20mA/0-5VDC/0-10VDC/1-5VDC |
| Ambient Temperature: | -40 ~ 85 ℃ | Thread Connection: | M20*1.5 |
| Color: | Silver | Pressure Level: | 10MPa |
4 20ma rtd PT100 temperature sensor probe transmitter
Description
Pt100 rtd temperature transmitter is generated by the sensor resistance effect at temperature, to produce a differential voltage signal converted by the dedicated processing unit, this signal via a dedicated amplifier, the range corresponding to the signal into a standard analog or digital signals.

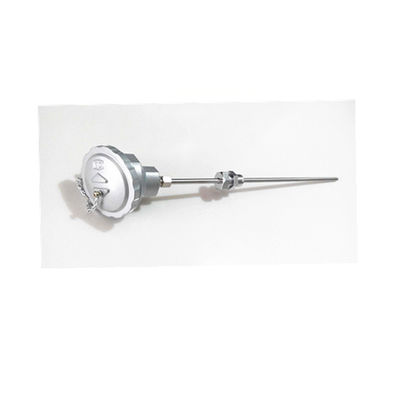

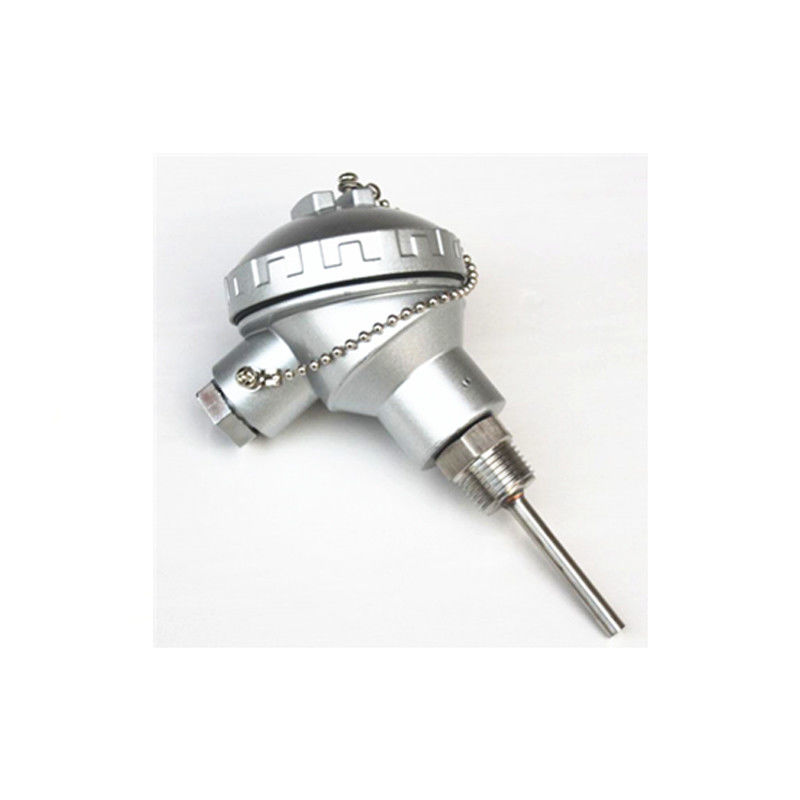

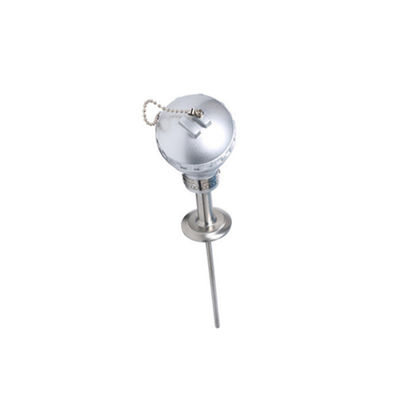

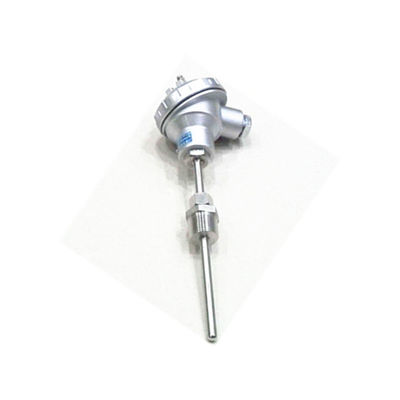

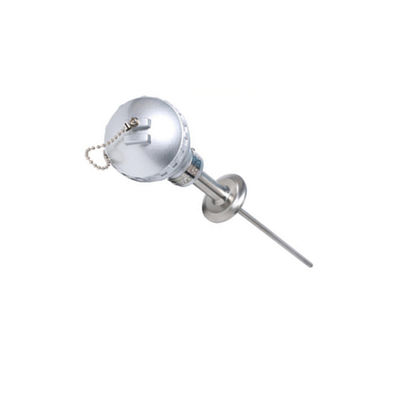

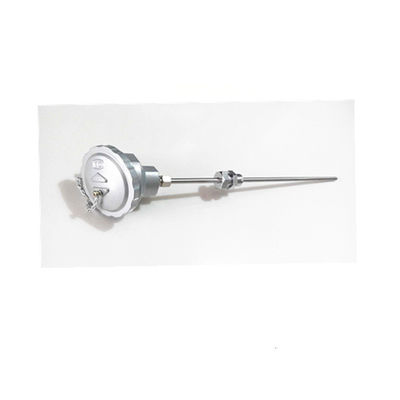

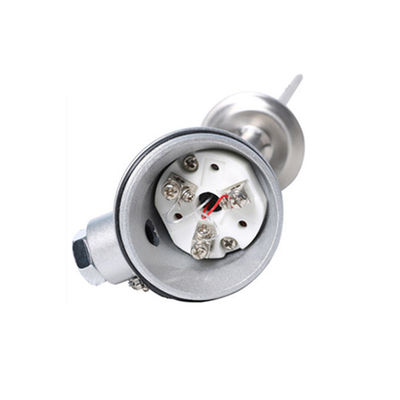

Detailed Images
Features
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Specification
| Measuring medium | liquid, gas | Measuring range | -50-500 ℃ |
| Power supply | 9 ~ 36VDC | Probe material | stainless steel 304 |
| Accuracy | ± 0.1% | Ambient temperature | -40 ~ 85 ℃ |
| Output signal | 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485 | Stability | ± 0.1% FS / Year |
| Pressure Level | 10MPa (above can be customized) | Ingress protection | IP65 |
| Maximum power |
current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage |
||
| Load characteristics | current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω Voltage type load ≥100kΩ |
||
Applications
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
