| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PT100 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $25~$95/pc |
| Packaging Details: | Factory High Quality Digital Temperature and Humidity Data Logger Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | PT100 Water Air Temperature Transmitter Sensor 0-10v | Output: | 4-20mA(2 Wires)/0-5V/0-10V/0.5-4.5V |
|---|---|---|---|
| Accuracy: | 0.5%, 1% | Power Supply: | 12-36VDC |
| Hart Protocol: | Optional | Application: | Liquid, Gas |
| Process Connection: | M20X1.5, G1/4, 1/4NPT | Voltage Type Load: | ≥100kΩ |
| Range: | -50-300 ℃ | Sensor Type: | Diffuse Silicon |

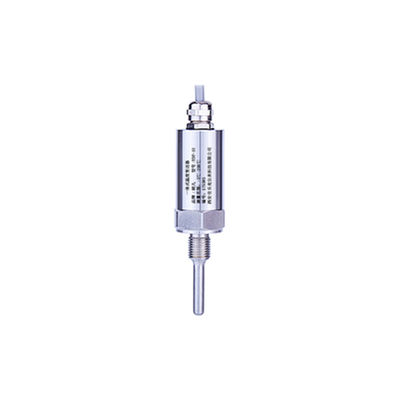

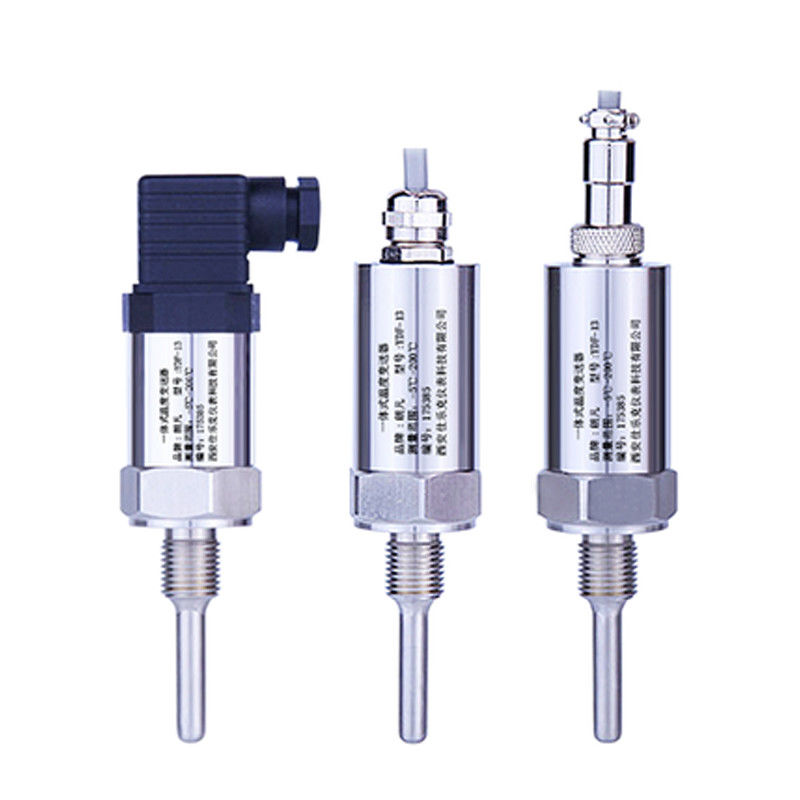

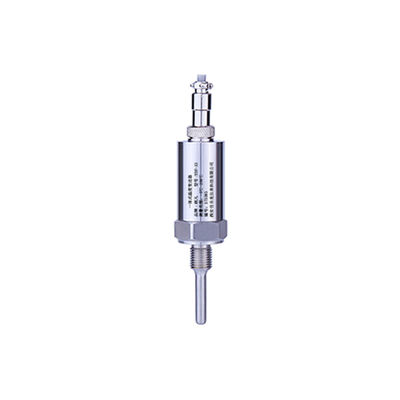

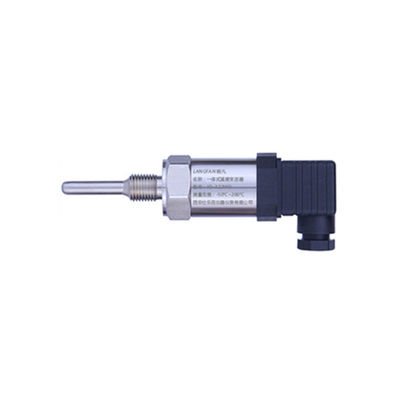

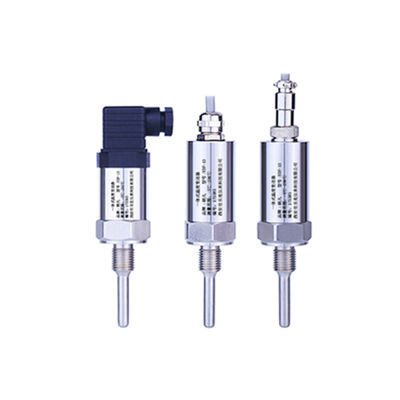

PT100 Temperature transmitter adopt special temperature module, can output standard analog signal and do linear correction to all kinds of thermocouple and thermal resistance. With the characteristic of high accuracy, good stability, strong anti interference ability, waterproof, explosion-proof, heat resistance, seismic.
Wide voltage power supply, non-linear correction, high accuracy
Small size, light weight, easy to install
Lightning, cutoff frequency interference design, anti-interference ability
Wiring reverse and overvoltage protection, current limiting protection
Suitable for indoor plumbing or cavities within the body temperature measurement, non-hazardous general scene.
